Enz Technik AG products

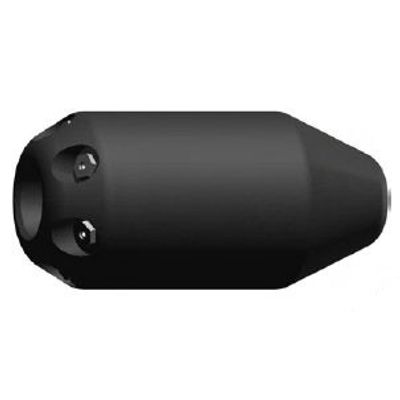

Made of wear-resistant, hardened steel, provided with front jet insert and blind plug (interchangeable). Angle of jet backwards, sturdy wall thickness, long service life and a minimum of wear and tear. All nozzles from art.30.038 onward are provided with steelceramic inserts. Because of this, the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer.

This enz® jet nozzle is made of wear-resistant hardened steel. The "grenade" and the "bomb" are joined in the same nozzles. Different jet angles perform together strong traction and effective cleaning. The high efficiency is reached by appropriate water guidance.

The enz drainage channel nozzle is suited for cleaning drainage gutters and systems, for example along motorways, in pedestrian zones or parkings. The 0° jets deploy all the cleaning power to the rear, thus preventing contamination of the environment or passing vehicles.

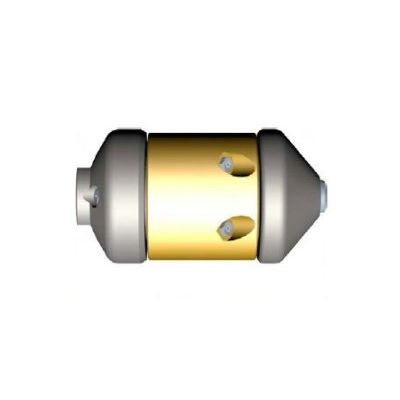

The radial rotating nozzles enz golden jet are equipped with 4 radial jets of 75° for the pipe cleaning and 3 thrust jets for the advance which at the same time flush away the loosened residues. As a result, pipe ducts of all kinds, even with cross holes, will be cleaned. The moving part of the enz golden jet nozzle rotates at a limited speed. These water jets hit the pipe wall directly with great impact, resulting in excellent cleaning capacity.

The semi-radial rotating enz golden jet nozzles with their 4 retroacting cutting-jets at an angle of approx. 45° cause simultaneously the cleaning procedure and the thrust for the forward move of the tool i.e. the jets combine rotation and thrust in one function resulting in a low water consumption. With sufficient water capacity, optional thrust jets can facilitate upward cleaning. Applications: Cleaning of pipes before TV-recordings, To remove mineral deposits in pipes, To remove roots up to Ø 5mm, Working pressure up to 250 bar.

enz golden jet nozzles with forward impact angle of approx. 45° on the pipe wall as well as a front-guide jet (on request) and 3 retro-thrust jets cause a corkscrew- like advance through the clogged pipe. While the front nozzles loosens and the semi-radial nozzles disintegrate the residues, the thrust nozzles are driving the nozzle head forwards and simultaneously pushing the waste material backwards. Applications: Core-flushing of the steel pipes during hydraulic thrust-boring, Cleaning of house connecting pipework from inside to the drain system, Removal of ice in manholes
