eralytics GmbH products

ERAVAP is an advanced vapor pressure tester designed for precision, speed, and versatility across a wide temperature range from -20°C to 120°C. It is used for the vapor pressure testing of a variety of substances such as gasoline, crude oil, LPG, solvents, and fragrances, adhering to international standards. The instrument`s unique feature includes the patented U-tube density meter module DENS4052, allowing simultaneous vapor pressure and density measurements, compliant with ASTM D4052 and ISO 12185. Its portability and compact design make it suitable for both stationary and mobile laboratories. ERAVAP boasts an exceptional precision, with a repeatability of r ≤ 0.15 kPa and reproducibility of R ≤ 0.50 kPa, offering reliability to entities such as CARB and the US EPA. Optional modules are available to extend its functionalities, such as the Low Vapor Pressure Module and High Viscosity Module, ensuring it accommodates robust testing scenarios across different sample types.

The ERAFLASH is a flash point tester designed by eralytics that operates under the Continuously Closed Cup flash point testing methods, compliant with ASTM D6450 and ASTM D7094 standards. The tester uses an electric arc to ignite sample vapors within a closed cup, determining the flash point based on pressure changes. The ERAFLASH requires minimal sample volumes, increasing efficiency and safety in testing. Notably, the instrument leverages PBT (Peltier Boost Technology) for precise temperature control, facilitating testing across a wide temperature range from -25°C to 420°C. This technology reduces the potential for damage to Peltier elements and significantly decreases turnaround times. Additionally, CPT (Contamination Prevention Technology) minimizes maintenance requirements, improving sample throughput. ERAFLASH's integration with ERADENS XS enhances density measurement capabilities, providing rapid, high-precision results. The instrument's design supports a variety of industrial applications, making it suitable for both research and quality control contexts.

The ERAFLASH S10, produced by eralytics, is a sophisticated flash point tester that integrates a 10-position autosampler to deliver efficient, reliable, and safe flash point measurements. Utilizing CCCFP methods such as ASTM D7094, ASTM D6450, and IP620, the ERAFLASH S10 is designed for unattended operations requiring only 1-2 ml of sample. It`s engineered for high-throughput laboratories and requires minimal space. The device employs Peltier Boost Technology® to allow testing across a temperature range of -25 °C to 420 °C. This technology not only enables precise temperature control but also reduces turnaround time by managing the elements through differential heating and cooling cycles. The optional cooling lid serves to maintain stable temperatures for volatile samples, enhancing the accuracy and reliability of results.

The ERAFLASH LT is a flash point tester designed by eralytics for low-temperature flash point measurements, complying fully with standards like ASTM D7094 and IP620. The device features a unique stacked Peltier design that enables quick cooling to temperatures as low as -40°C, significantly enhancing sample throughput. This innovative design eliminates the need for dry ice, boosting efficiency and reducing preparation time. An automated coolant valve minimizes condensation, and a cooling cup prevents ice formation on the surface, ensuring clear and accurate results. It is particularly suitable for industries that require fast analysis of samples with low flash points, such as in the fragrance or crude oil sectors. Starting measurements at temperatures significantly below expected flash points ensures accuracy, meeting regulatory specifications.

The ERAFLASH X is an advanced flash point tester designed to replace the ASTM D93 Pensky-Martens apparatus. Specifically engineered for the petroleum industry, this instrument can analyze various liquid samples across a temperature range from 18°C to 370°C, requiring only 2 mL of sample. The device strictly adheres to the ASTM D7094 standard, ensuring laboratory safety, rapid analysis, and enhanced precision. It features eralytics' PBT – Peltier Boost Technology®, which optimizes heating and cooling processes for a faster turnaround. ERAFLASH X distinctively uses a closed cup method with an electric arc ignition, eliminating open flames and reducing fire hazards. Its design minimizes sample waste and operational costs, making it an efficient solution for conducting up to five tests per hour. ASTM D7094 is recognized as a superior flash point testing method in various fuel specifications, emphasizing ERAFLASH X's precision and reliability.

The ERAOIL RDE-OES Spectrometer is a sophisticated instrument designed for comprehensive elemental analysis of wear metals, additives, and contaminants within lubricating oils, fuels, coolants, and process water. Utilizing a rotating disc electrode, ERAOIL measures up to 32 elements automatically in only 30 seconds, leveraging a high-end CMOS detector for sub-ppm detection limits. Compact in design, it incorporates a built-in PC and touchscreen, making it ideal for space-limited on-site testing laboratories. The spectrometer is compliant with ASTM D6595 and D6728 standards, ensuring high precision in both oil and fuel analysis. It supports additional applications including the analysis of coolants and metal working fluids. With integration features such as an electrode sharpener and automatic ventilation, ERAOIL is optimized for both ease of use and accuracy during analysis, showcasing its capability for detecting trace elements like Potassium and Vanadium to as low as 0.1 ppm.

The ERACOUNT XS is a compact and efficient field particle counter designed for rapid and precise oil condition analysis. This laser-based instrument provides fast measurement of particle sizes according to ISO 4406 standards, specifically targeting channels ≥ 4 µm(c), ≥ 6 µm(c), and ≥ 14 µm(c) within just 60 seconds utilizing a minimal 10 mL sample. When integrated with other eralytics analyzers, such as the eravisc X kinematic viscometer or the eraspec oil FTIR spectrometer, it expands to count particles across eight channels, enhancing its detection capabilities. Despite its small size and light weight of 3 kg, the ERACOUNT XS is engineered with robust materials to withstand harsh environments, making it suitable for field use in contamination detection and condition monitoring of hydraulic and lubrication systems. Rated for lubricant viscosities up to 1000 cSt at 22°C and pressure up to 2 bar, it provides reliable particle size detection and is calibrated to ISO 11171 standards, ensuring traceability to NIST standards.

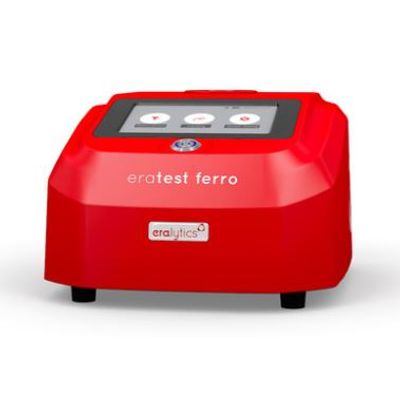

The ERATEST FERRO is a sophisticated ferrous debris analyzer designed for precise monitoring of ferromagnetic wear particles in oils and greases. Operating on a robust ASTM D8120 standard, it delivers rapid quantification of magnetizable debris in parts per million (ppm) using just 2 milliliters of the sample within one second. Engineered with an integrated ARM high-performance processor, it features a user-friendly 5-inch touchscreen and an automatic/manual measuring mode. Its rugged design and portable case ensure reliability across diverse environments, such as oil and gas processing, transportation, and power generation. Ideal for on-site analysis, it provides accurate, real-time graphical evaluations, ensuring measurement precision without requiring sample preparation or extensive training.

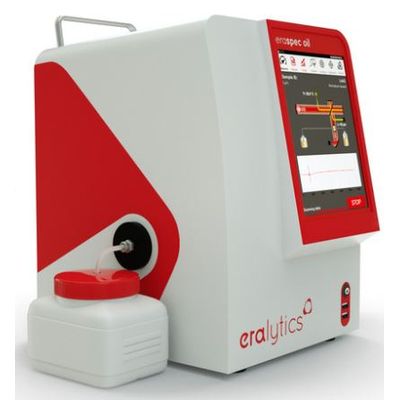

ERASPEC OIL represents a significant advancement in oil condition monitoring, utilizing a portable stand-alone infrared analyzer to deliver swift and accurate analysis of lubricant oils directly on-site. This device adheres to ASTM, DIN, and JOAP standards, leveraging a patented interferometer design to produce laboratory-grade results. It evaluates contaminants, degradation products, additive depletion, and calculates properties like TAN, TBN, and viscosity. With a focus on chemical changes in lubricants, the device applies IR spectroscopy to monitor additives and degradation processes such as oxidation, nitration, and sulfation. The system includes features like Direct Trending and Spectral Subtraction to enhance result accuracy, supported by expandable databases. Its portability is complemented by optional accessories like a 10-position autosampler for higher throughput, maintaining the convenience of on-site oil analysis.
