A versatile, powerful, magnet designed specially for odd shaped, round, oval or round cornered hoppers. The Model P has been constructed with a flexible basic design which makes it a real piece of protective magnetic equipment for virtually any shape hopper. In operation the sturdy grid bars positioned over the magnetic element act as baffles to deflect your flow of material onto the magnetic tubes where iron contamination is trapped and held. The built-in baffles control excessive speeds of material, but a smooth steady flow is not obstructed.

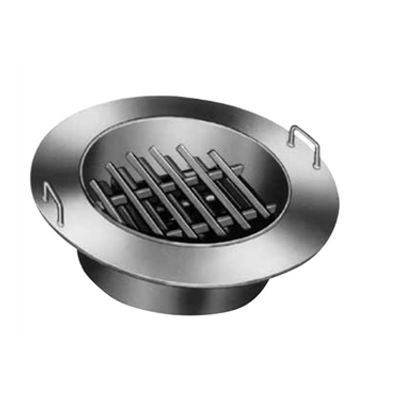

This separator provides “Final Magnetic Action” on bulk foods, chemicals, pharmaceuticals, etc. being packaged in barrels or similar type containers. These units are the result of many requests for a portable type magnetic separator for use in a final separating action as materials are being packed in barrels or other types of large containers.

Double-bank units are designed to give double protection in installations where the problem of iron contamination is particularly acute. These models have a second row of magnetic tubes aligned directly below the open spaces between tubes in the top row.

These revolving models provide speedy automatic removal of unwanted iron from bulk materials that tend to stick, clog and bridge. Eriez Rota-Grates have been specially designed to remove both large pieces of unwanted iron as well as minute ferrous particles from material flows that tend to clog and bridge when passed through small openings. This dual action unit rotates several powerful magnetic tubes through the material. The magnetic action attracts and holds the unwanted iron, and the rotary action prevents the material flow from packing and plugging the processing line. Available in 24 sizes.

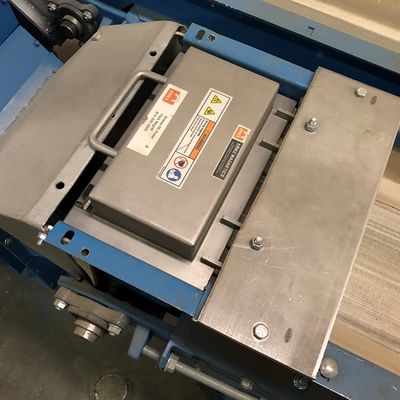

Eriez Permanent Plate Magnets provide dependable and economical solutions to problems associated with tramp iron contamination in processing lines. Plate Magnets installed in chutes, spouts, ducts, pipes, or suspended over conveyors remove tramp iron to help prevent costly shutdowns associated with machinery damage, prevent spark– caused fires and explosions, prevent product contamination and improve product purity.

Eriez’ Xtreme Rare Earth Magnetic Tubes utilize the industry’s strongest magnet circuit available to recover more fine-iron contamination and reduce product wash off. They can be used as inspection tools or in areas where conventional Grate Magnets will not fit.

For 2" (51 mm) through 4" (102 mm) Pipelines. The magnetic element, consisting of a group of magnetic tubes, is arranged to cause the material flow entering the body to impinge against the tubes and filter through the magnetic field, completely covering the open area. This arrangement takes advantage of the material change in direction and the difference in inertia between the unwanted iron and the material carrying it. The magnetic circuit is designed so the entrapped iron will have a tendency to work around and cling to the down–stream side of the tubes. This action prevents iron particles from being washed off by the continuous flow of material.

This unit is the same as the Model L, except it has a brass or optional stainless steel filter sleeve that fits around the magnetic tube, making the unit perform a dual separating operation. Magnetic power from the tube draws and holds fine iron contamination, while the filter element catches and holds nonmagnetic fines, lint, etc. This model is recommended where more than magnetic impurities contaminate a product.

For Difficult-to-Flow Products. The Model U Trap utilizes a Rare Earth magnet circuit to remove fine and weakly magnetic contamination like rust, scale, or screen wire. Model U Traps remove ferrous contamination from difficult–to–flow or chunky products like vegetables, salsa, or meat batters. The special body design of the Model U incorporates a gradually tapered transition that gently directs the product over a smooth magnetic surface. The body design does not incorporate diverters or baffles. This design works well for applications where finger–style traps would plug due to large product size or where delicate products would break if forced against a baffle.

For 6" (152 mm) through 30" (762 mm) Pipelines. Reduce damage and maintenance to filters, pumps, refiners and other processing machinery handling paper, chemical slurries and other liquid materials. Rugged welded pipe and reinforced plate and tube construction withstands working pressures up to 75 psi (5.3 kg/sq cm). Model T Traps are primarily for upright installation in horizontal lines, however, they may also be mounted sideways, or in inclined or vertical lines.
