Esit Electronic Ltd. Co. products

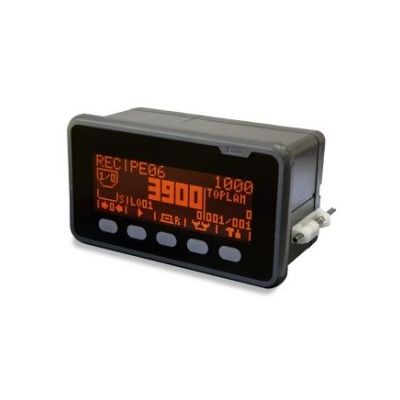

Esit ECI has a high value for industry with its new breakthrough modular expandable design and 800 Hz data output rate.It enables sensitive measuring and checking with its next generation intelligent filtering technology, gResolver, within vibrant and unstable environments. With its controlling features, new Esit ECI Weighing Control Indicator provides dosing function as standard, while delivering solutions to a wide range of needs via flexibly expandable outputs. Also optional expansion cards enable it to conform to almost any industrial communication protocol.

Esit ECI-EX is a indicator that is used in explosion risk areas such as environments of combustible chemicals, gas or petroleum products. ECI-EX boxes have power supply, ECI and zener barrier. It  gathers the electrical signal from load cells and transmit them to the indicators through zener barriers using for protection.

LCA-X load cell amplifiers weigh various tanks and similar units, and enable remote monitoring of all measurements in the most cost-effective way possible. Weights of one or more units being weighed by the load cells can either be measured by the LCA-X devices in the measurement field and they can be monitored via a remote computer. The amplifier itself does not have a display.

The BB bending beam load cell has been developed for use in electronic weight and force measurement applications under industrial conditions. They are mostly used in low capacity applications such as tank weighing systems, platform scales, bagging and batching machines, and conveyor belt scales. A good level of sealing is achieved by a bellow covering the strain gauge area on the stainless steel body of the load cell.

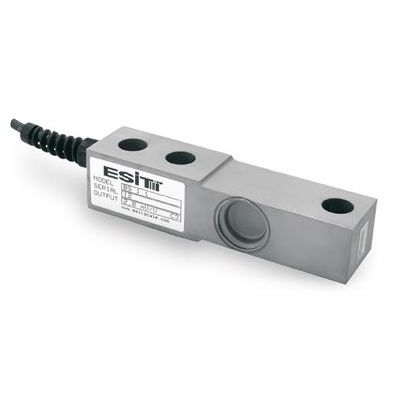

The BS shear beam load cell has been developed for use in electronic weight and force measurement applications under industrial conditions. The excellent linearity and reliability of the BS series is enhanced by thermal compensation for the effects of temperature on zero and span stability.  Having a thin profile which is fully resistant to side forces, the BS shear beam load cell is suitable for low and medium capacity tank weighing systems, automatic weighing equipment and process weighing applications. The strain gauge area is welded in accordance with IP68 standards. Thanks to its stainless steel structure, which provides resistance to water and other chemicals, the product is an ideal solution for such industries as chemicals, petrochemicals, caustic soda and fertilizers.

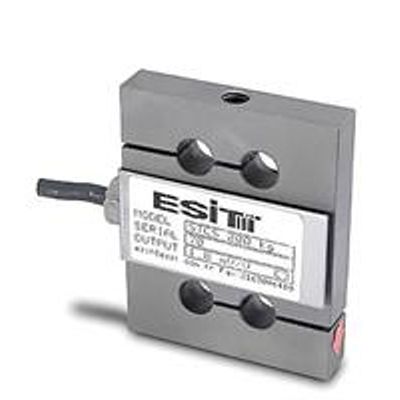

The STCS bending beam load cell has been developed for tension and compression type weight and force measurement applications. The STCS load cell finds application in tank weighing applications, hopper scales, electromechanical scales, tension-tear test devices, process weighing applications and other similar systems. It offers a high level of accuracy and features an internal thermal compensation that corrects output drifts due to ambient temperature variations. Stainless steel STCS load cells are resistant to all types of weather conditions and protected to IP66 standards.

Protects load cell against lateral loads. Used in accurate and vibrating weighing systems.

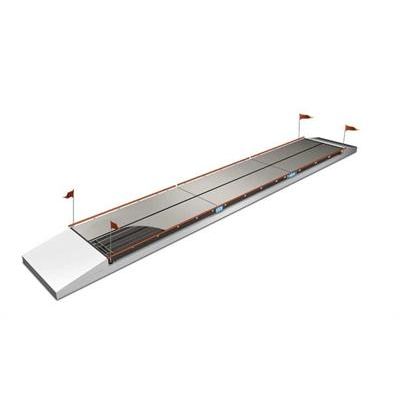

ESİT Hippo A is a modular steel weighbridge with pit-mount and surface-mount options. Designed to meet European standards in its respective industry, Hippo offers a strong static build which is suitable for use in every sector where legal loading and weight measurement is required. ESİT Hippo A weighbridges feature a modular structure with a width of 3 m and are produced in various lengths from 4 m to 24 m with 2 m intervals. Thanks to its modular structure, Hippo can be easily assembled and is suitable for international container shipping.  Hippo steel weighbridge is designed not only to provide robustness and long-term durability, but also to offer easy assembly, easy handling, easy cleaning and ideal height. ESİT Hippo A vehicle scales are equipped with ESİT SC load cells and SC EL rubber mounting kits as well as PWI-T  microprocessor-based electronic weighing terminals as standard.

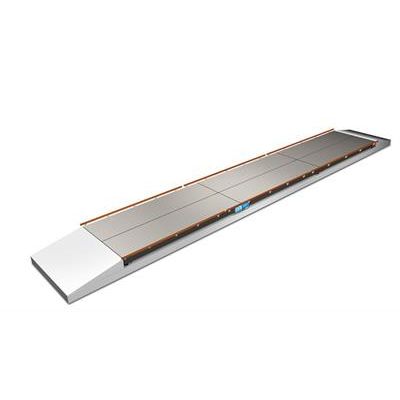

ESİT Hippo is a modular steel weighbridge with pit-mount and surface-mount options. Designed to meet European standards in its respective industry, Hippo offers a strong static build which is suitable for use in every sector where legal loading and weight measurement is required.  ESİT Hippo weighbridges feature a modular structure with a width of 3 m and are produced in various lengths from 4 m to 24 m with 2 m intervals. Thanks to its modular structure, Hippo can be easily assembled and is suitable for international container shipping.  Hippo steel weighbridge is designed not only to provide robustness and long-term durability, but also to offer easy assembly, easy handling, easy cleaning and ideal height. ESİT Hippo vehicle scales are equipped with ESİT SC load cells and SC EL rubber mounting kits as well as PWI-T  microprocessor-based electronic weighing terminals as standard.

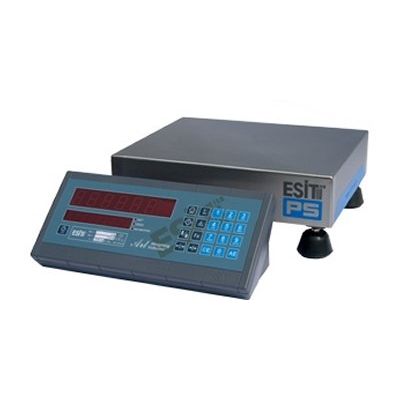

Fully-automatic, single-load cell Esit PS desktop scales are robust and reliable devices designed to withstand heavy industrial conditions. Standardly bundled with multi-functional electronic indicator ART, and produced in various capacities (6 kg, 15 kg, 30 kg and 60 kg) and sizes (24x30 cm, 30x40 cm, 40x50 cm) with a stainless steel platform and load-bearing parts, Esit PS scales aim to meet all types of user requirements. PS desktop scales may be integrated with other Esit indicators to be used in various other applications and under many different conditions. There are stainless steel and Exproof types for use in case of humidity and in the presence of flammable materials. They optionally feature filling control and industrial control outputs.
