ESZ Makina Ins San Ve Dis Tic Ltd Sti products

ESZ Makine supplies floating suction assemblies for use in tanks where no contamination can be tolerated. Floating suction assemblies float near to the top of the liquid surface where draw uncontaminated liquid.

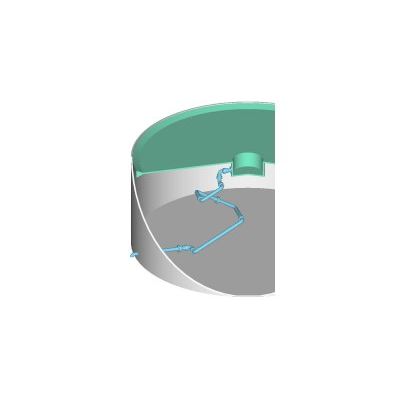

ESZ Machine supplies floating roof drains designed for better solutions to the articulated piping. Roof drainage system is maintenance free and combination of flexible swivel joints and pipes.

ESZ Machine supplies IFC Inflow top loading arms specially designed to be used for filling tankers from the top or the side.  Top loading arms are designed to meet highest standards under toughest conditions. Top loading arms are designed for open, with cone or with flanged connections. Top loading arms can be operated manually or with hydraulic/pneumatic systems.

ESZ Machine supplies IFC Inflow bottom loading arms and skids designed to be used for filling tankers from bottom or the side. Bottom loading arms are designed to meet highest standards under toughest conditions. Bottom loading arms can be operated manually or with hydraulic/pneumatic systems.

The safeload manual API coupler for petroleum tanker bottom loading is a robust, reliable & affordable coupler ideal for depot loading & lower use applications. 3 year warranty for wear & tear on all metal prts under normal environmental conditions. Safeload design prevents operation unless properly connected. Tapered lead in ensures failsafe adaptor alignment. Four wrapround extended triggers securely lock coupler in place. 4" TTMA inlet flange. Outlet connection complies with API RP 1004. Hard anodised aluminium body with viton seals as standard. Major oil company approved.

The Safeload semi auto API coupler has all the features of the manual unit, with the added benefit of the semi auto feature allowing quicker connection to the tanker. Ideal for high volume terminal applications. Instant snap on fixture to tank adaptor. 3 year warranty for wear & tear on all metal parts under normal environmental conditions. Safeload design prevents operation unless properly connected. Tapered lead in ensures failsafe adaptor alignment. Four wraparound extended triggers securely lock coupler in place. Easy to maintain & service with all seals easy to replace. 4” TTMA inlet flange. Outlet connection complies with API RP1004. Hard anodised aluminium body with viton seals as standard. Major oil company approved.

These units are constructed from treated mild steel and supplied direct to site in fully assembled condition ready for bolting down onto prepared foundations. The standard configuration is for single side loading with up to 5 product lines. Also available for dual side loading.

Standard width range allows safe & easy access. 800mm wide steps provide easy access for a single operator. Compression spring balance allows the unit to be easily lowered & raised by a single operator. Sturdy galvanised steel construction for long operational life. Low cost modular design to accommodate most applications. Available in 3, 4, or 5 step options. Supplied with vertical mounting plate for easy installation. Options; safety cages, pneumatic control & key interlocks.

Our standard 800mm wide units are availabble c/w safety cages. Standard cage size is 1.4m D x 2.8 W. 1.4m square cage option available. 1m high, 3 rail safety cage provides optimum fall prevention. Provides a safe working area on top of the tanker or ISO container. Durable galvanised steel construction as standard. Lightweight aluminium or corrosion resistant stainless steel options. Special size & material cages are available for specialist applications.

IFC Inflow loading platform is the ideal low cost, easy to install, low maintenance safe access solution for working on the tops of the tankers & ISO containers.
