ETG Risorse e Tecnologia S.r.l. products
ETG Biogas analyzers product line

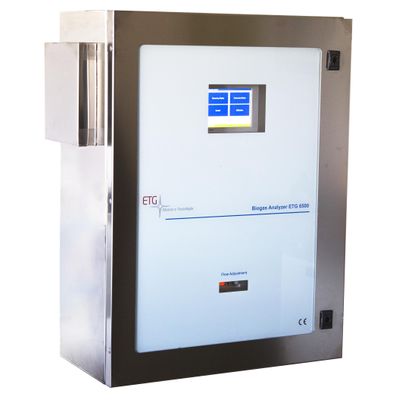

ETG - Multicomponent gas analyzer for Biogas and Biomethane (Wall Mounted version)
The ETG 6500 WM Bio gas analyzer is the ideal solution for continuous gas analysis. Based on NDIR (infrared) + ECD (electrochemical) technology, ETG 6500 WM has proven to be a valuable ally in managing Biogas and Biomethane plants. Reliable, safe, resistant and highly customisable, they are built on the customer`s needs and adapt to every situation. They are designed to be user friendly and extremely low maintenance.
ETG - Multicomponent gas analyzer for Biomethane
The ETG 6500 BIO LNG gas analyzer is developed with the aim of providing a simple and reliable solution for the liquefying processes. Thanks to the photoacoustic technology, it is capable of providing stable measurement results, which makes it ideal for a continuous monitoring of the process. ETG 6500 BIO LNG, thanks to its design, which let the gases flow separately from the sensors, requires very little maintenance operations, guaranteeing a long components operating life and minimizing value drifting over time.
ETG - Multicomponent gas analyzer for Biogas (Portable version)
The MCA 100 Bio series of gas analyzers by ETG are the ideal solution for Biogas measurement and industrial combustion applications, because of their accuracy, stability, reliability, broad measurement range, and the variety of available form factors. Unlike other analyzers, ETG MCA 100 non-dispersive infrared (NDIR) sensor can measure multiple gases in a single instrument, using only one optical path platform. Single-gas analyzers are inadequate when using methane as a bio-fuel,because the gas often contains large amounts of CO2 as a contaminant. ETG analyzers have the ability to measure CO2, H2S and O2 in addition to methane, providing the optimal combination of gases analysis for Biogas/Biomethane process. The enhanced optics and electronics of our NDIR analyzers have virtually eliminated zero drift after the initial warm up period. The temperature and pressure compensation eliminates the major causes of span drift in many NDIR instruments.
ETG - Multicomponent gas analyzer for Biogas
The ETG MCA 100 Bio series of gas analyzers by ETG are the ideal solution for Biogas/Biomethane updgrading measurement because of their accuracy, stability, reliability, broad measurement range, and the variety of available form factors. Unlike other analyzers, ETG MCA 100 Bio nondispersive infrared (NDIR) gas analyzers measure multiple gases in an instrument with a single optical path platform. ETG analyzers have the ability to measure CO2, H2S and O2 in addition to methane, and therefore provide the optimal combination of gases measurement for Biogas/Biomethane plants. We can measure H2S by NDUV technology that is maintenance free and doesn’t need Electrochemical cells replacement. The enhanced optics and electronics of our NDIR analyzers have virtually eliminated zero drift after the initial warm up period. The temperature and pressure compensation eliminates the major causes of span drift in the instruments.ETG Syngas Analyzers Product Line
ETG - Transportable Syngas sample pre -treatment
The biggest problem of Syngas analysis is the presence of "tars", which makes the sample gas extremely difficult to handle. Tar aerosols and deposits lead to frequent maintenance and repair and, if ignored, they can damage the sensors permanently, or make them less reliable. This can result in lower efficiency in process monitoring, thus to a potential economic loss for the end user. In gas analysis, it is important to have a clean gas to feed to the analyzer, and ETG PSS100 does exactly what it is needed: at first, it makes the gas flow through 3 washing devices, which remove the biggest part of the impurities, then it goes into a peltier chiller, which removes moisture, and finally there is a protection filter, to ensure that only clean gas will flow into the sensors. Everything is fitted into a single compact and transportable device, which is perfect for every need.
ETG - Multicomponent gas analyzer for Syngas
ETG 6500 SYN series of gas analyzers by ETG are the ideal solution for Syngas measurement applications because of their accuracy, stability, reliability, broad measurement range, and the variety of available form factors. Unlike other analyzers, ETG 6500 SYN non-dispersive infrared (NDIR) gas analyzers measure multiple gases in the instrument in special wavelenght regions, interferences free from the other components.
ETG - Portable multicomponent gas analyzer for Syngas
ETG MCA 100 SYN P series of gas analyzers by ETG are the ideal solution for Syngas measurement applications because of their accuracy, stability, reliability, broad measurement range, and the variety of available form factors. Unlike other analyzers, ETG MCA 100 SYN P non-dispersive infrared (NDIR) gas analyzers measure multiple gases in the instrument in special wavelenght regions, interferences free from the other components.ETG6900 TDL Product Line
ETG - Advanced gas analyzer serving Tunable Diode Laser Spectroscopy - NH3 detection
This avant-grade monitoring system has the ability to detect even quicker NH3 molecules at the most accurate range. ETG 6903 TDL Rock (NH3) continous status monitoring, automatic calibration and remote controlling option (by ethernet & USB) allows the user to exploit the maximum capacity of the instrument at the minimum effort and mantenance. ETG 6903 TDL Rock (NH3) is expandable in a multipoint system for any sample conditioning.
ETG - Drone Based Monitoring System
Regarding the problem of monitoring diffuse emissions, or of the leaking in gas pipelines, ETG Risorse in collaboration with NIMBUS has developed a drone for GHG diffusing emission monitoring, simplifying this type of analysis for the end customer. This system, equipped with a sensor with TDLAS (tunable diode laser absorption spectroscopy) technology, is able to detect methane concentrations starting from 0.1 ppm, which makes it particularly suitable for all types of analysis in which both high sensitivity and a wide range of areas to cover.
