Everfilt Water Filtration Systems
14 products found
Everfilt Water Filtration Systems products
Sand Media Filters
Everfilt - Skid-Mounted Sand Media Filters
Everfilt® SK-SM-Series Skid-Mounted Sand Media Filters are our standard SM-Series Sand Media Filters, with the addition of a carbon steel skid (mounting platform for filtration system). The skid-mounted water filtration system creates a platform that allows for easy maneuverability for permanent and mobile applications. Everfilt’s SK-SM-Series Skid-Mounted Water Filtration System, includes a fabricated backwash manifold, stainless steel sight glass and air/vac relief valve.

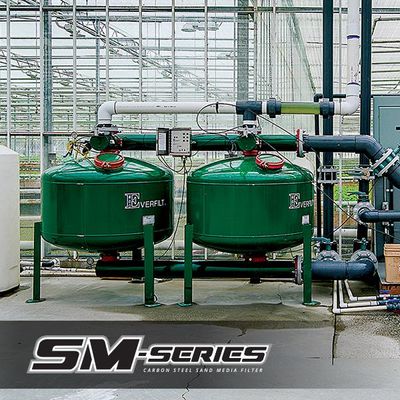

Everfilt - Carbon Steel Sand Media Filters
Carbon steel sand media filters. Standard AG media filters available in multiple sizes and configurations. Stainless steel sand media filters available (see SSM-Series). Everfilt® SM-Series Sand Media Filters have butt-welded tank jackets and a rounded dome shape for its tank top and bottom, so that filter operation will be effective even at higher operating pressures or differentials. Everfilt® pioneered the design of the radial hub - carbon steel underdrain — and many manufacturers have since followed our lead. Everfilt’s carbon steel underdrain is hydraulically balanced to ensure efficient collection of filtered water.
Everfilt® - Sand Media Filters & Multi-Media Filters
Sand media filters are used to remove suspended solids from water and wastewater. Because they have one layer of filter media, sand media filters remove only relatively large solids (normally in the range of 40 micron and larger). The effective size of each granule of sand typically varies from 0.35mm – 1.2mm. Larger granules yield coarser filtration. Finer granules yield finer filtration.

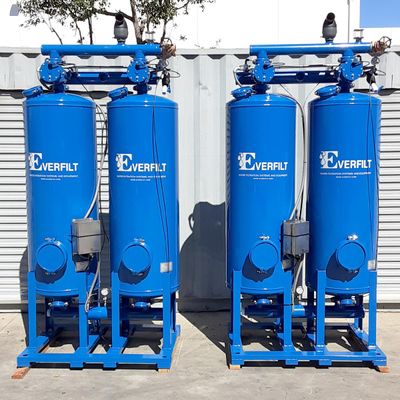

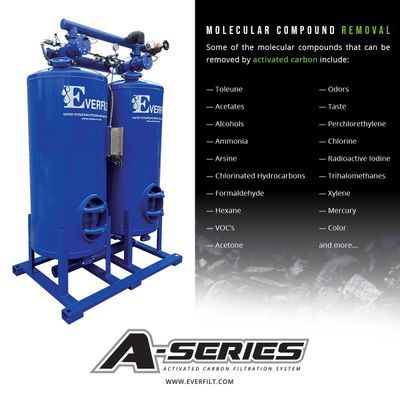

Everfilt® - Activated Carbon Media Filter
A-Series Activated Carbon Media Filtration Systems utilize GAC Granular Activated Carbon as its source for media filtration, layered of a gravel base covering and protecting the 304SS stainless steel wedge wire underdrains. For specialty projects, Everfilt® will provide custom media packs to meet clients projects needs.
Everfilt® - Pressure Screen Filters
SMS-Series Screen Filters incorporate the unique configuration and high-strength capabilities of profile wire. Utilizing an all-welded single unit made of stainless steel profile wire. Optional 35, 50, 75, 100, 150 and 200 stainless steel screen mesh options, allows for a perfect solution across many industries or applications. With a 125 PSI MAX rating and a 400 PSI burst strength, the SMS-Series Screen Filters are ready to outperform.

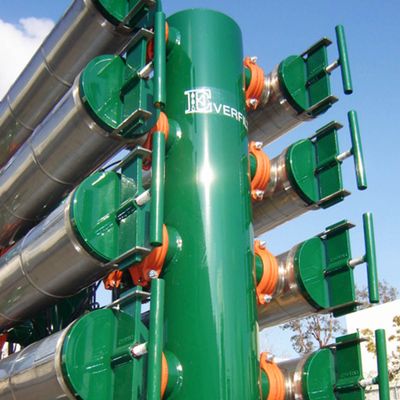

Everfilt® - Pressure Screen Filter
STAK-Series "Stacked" Screen Filter units are designed to deliver high-volume, automatic filtration in a compact package. Suitable for both organic and inorganic solids removal. Solids removal is accomplished by an all-welded stainless steel single unit, made of 304SS stainless steel or 316SS wedge wire. With a collapse strength of 125 PSI and a burst strength of 400 PSI, the cartridges are immune to blowouts, collapse, rupture or tearing that is common from woven or perforated screens. Available in 50, 75, 100, 150 and 200 mesh sizes.
Everfilt® - Backwash Control Panel
Leaders in forward water filtration technology, The Everfilt line of automated backwash controllers offers the filter system operator the advantages of fully automated filter system backwashing. Filter system automation will quickly pay for itself by providing substantial savings of labor and by also insuring optimum filter flow conditions. The Everfilt line of automatic controller’s offers the water filtration system operator the advantages of fully automated filter water filtration system operation and communication to remote control centers. Available in : 94B-4 = 4 station ( no LCD display ) 94B-4L = 4 station (LCD) 94B-8L = 8 station (LCD) 94B-12L = 12 station (LCD)

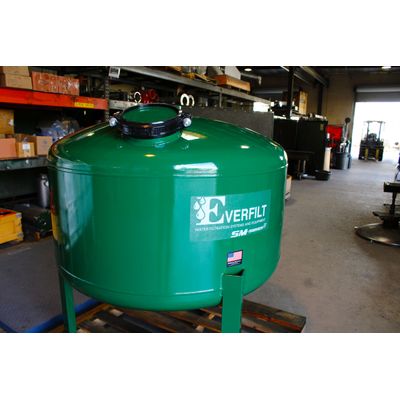

Everfilt® - Carbon Steel Sand Media Filters
Everfilt’s SM-Series media filters are constructed using carbon steel, a material known for its durability. For maximum strength of the media filters, Everfilt butt welds its tank jacket and has chosen a rounded dome shape for its tank top and bottom so that filter operation will be effective even at higher operating pressures or pressure differentials. Call us at 1-800-360-8380 to consult with an engineer today! Innovators in Water Filtration – All Steel, All Welded Underdrains All-Steel, All-Welded Underdrain – Everfilt pioneered the design of the radial hub stainless steel underdrain – and many other manufacturers have since followed our lead. We manufacture quality systems for use in water and wastewater treatment. For more information regarding water or wastewater treatment, or our other innovative filtration services, Contact us! Everfilt’s underdrain is hydraulically balanced to assure efficient collection of filtered water.

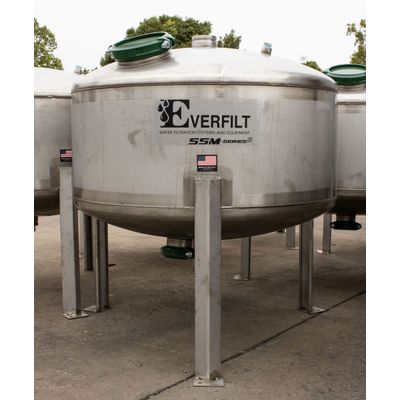

Everfilt® - Stainless Steel Media Filters
Durable, Long-Lasting Construction- Everfilt stainless steel media filters are constructed using heavy 11 gauge 304 stainless steel. Unlike some other media filtration systems, users will never see an Everfilt tank flex during start-up or backwash because thin gauge stainless steel has been used in the filters construction.
