Evergreen Technologies Pvt. Ltd. products

EVERMESH MIST ELIMINATOR is fabricated in pad form from symmetrical interlocking loops of knitted metal wire or plastic monofilaments. The pad with a high free volume and large impingement area, can be installed in any existing or new process vessel to provide separation efficiencies up to 99% for particles down to five microns at pressure drops in the vicinity of 25 mm WG. The EVERMESH MIST ELIMINATOR is a static, in-line device and in a majority of the cases it can be installed in the evaporator, scrubber, pressure vessel etc., without a special housing. There is practically no maintenance required except for cleaning when used in fouling services.

Fibre Bed Mist Eliminators are used to provide the highest possible collection efficiency for process conditions requiring stringent performance levels. The EVERFIBRE BED MIST ELIMINATOR is result of detailed investigation of mist characteristic, laboratory studies of fibre and surface treatments. Evergreen have over 35 years experience in the design, manufacturing and installation of Candle Filter Elements.

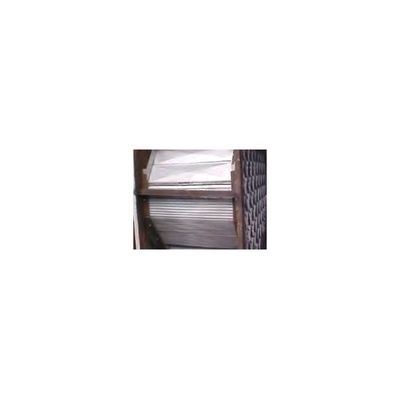

EVERPACK SM COLUMN PACKING is the sheet metal version of the popular EVERPACKWM (wire mesh) and HYFLUX (knitted wiremesh) PACKING. Their development is apart of EVERGREENS continuous &comprehensive development program to improve column packing performance. EVERPACK SM is supplied in modules which consists of parallel layers of uniquely designed embossed sheet metal strips which are corrugated and arranged vertically. These modules are then stacked with an alternating 90 degree orientation of every other layer which gives a good lateral distribution of liquid The embossed metal strips help to draw the liquid in all directions into a thin film and provides a marked improvement in uniform wetting of the packing bed.

The chemical processing and refining industry encompasses a number of applications where two liquid phases are made to intimately contact one another. This leads to a dispersion of one liquid phase in the other and the key to effective process performance is an efficient way to separate the two phases once again. The EVERSEP range of liquid - liquid Coalescers are a family of specially designed equipment to optimize the coalescence of droplets and thereafter to separate these coalescer droplets into their respective phases.

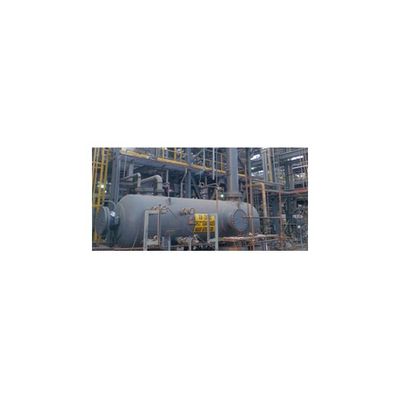

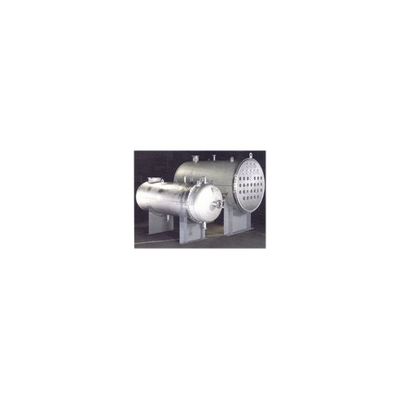

As the oil & gas and chemical processing industry matures, a new class of high efficiency separator internals are required. As a result of its in house design and engineering capabilities, as well as its working relationship with various end users, Evergreen has developed a comprehensive range of high efficiency separator internals. Separator internals design requires an in-depth knowledge of gas / liquid and liquid/liquid separation technology along with an in depth knowledge of the interplay between these phases when a three phase system (gas/oil/water) is required to be handled. The size of the separator vessel is important as it has a bearing on the capital costs incurred by the end user. The performance of separator internals will play a critical role in the sizing and final performance of the separator, and a CFD model maybe required to optimize the final design.

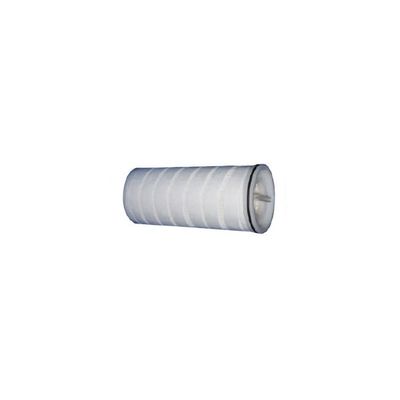

Cartridge filters & coalescers for a wide range of critical application in the petrochemical & refinery, fine chemical & pharmaceutical industries with technical support from leading filter manufacturers.

Continuous Film Contactors for a niche range of applications such as mercaptan removal from LPG streams, etc. developed in a joint development with the R&D group of Engineers India Ltd.
