ET140 push-in resistance temperature detector probes with handle are designed for temperature measurement in liquids, gases and soft materials. Detectors can be used in industry, agriculture, labs and etc. Optional sharp tip of the probe simplifies the insertion into the measurable environment. Depending on the needs of application, different platinum sensors for temperature up to +260 °C, different length on cables and flexible cable armor can be supplied.

ET204 temperature sensor is designed for use in HVAC/R systems.

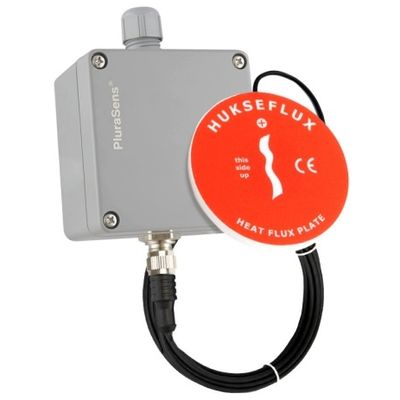

Heat flux transmitter E2007HF is a member of new PluraSens® family of multifunctional measurement instruments. The transmitter is designed to measure the heat that flows through the object in which or on which the heat flux sensor plate is mounted. The heat flux is measured by a thermopile plate sensor element. E2007HF can be used for in-situ measurement of building envelope thermal resistance (R-value) and thermal transmittance (H-value) according to ISO 9869, ASTM C1046 and ASTM 1155 standards. RS485 Modbus RTU interface allows direct Fieldbus networking of the devices and optional analog output can be used to connect the transmitter with additional secondary instruments.

Duct-mount humidity and temperature transmitter E2228-DM is a member of new PluraSens® family of multifunctional measurement instruments. The transmitter is intended for measurement of relative and absolute humidity, temperature and dew point of air with high accuracy and stability in non-aggressive gases.

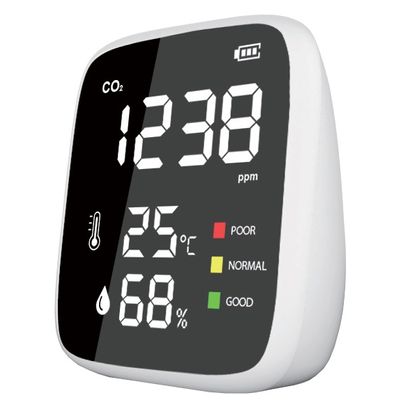

Air Quality Monitor E2250 is intended for use in schools, hospitals, offices and other public spaces. Monitoring air quality is important to maintain comfortable and safe environment for workers, students, clients and everyone else. The device measures temperature, relative humidity and CO₂ level and gives visual and sound alarm when CO₂ level exceeds 1000 ppm. Monitoring these indoor air quality characteristic helps to assess the need for ventilation which increases the efficiency of the HVAC systems. E2250 is a maintenance free plug and play device.

Barometric pressure transmitter E2407 is a member of new PluraSens® family of multifunctional measurement instruments. The transmitter is intended for measurement of the barometric pressure in residential, business and industrial indoor spaces. RS485 Modbus RTU interface allows direct Fieldbus networking of the device. Two configurable analog outputs can be used to connect the transmitter with additional secondary instruments.

Ammonia detector-transmitter E2608-NH3-E is a member of new PluraSens® family of multifunctional measurement instruments. The instrument is intended for leakage control in refrigeration facilities, warehouses etc. It is not recommended to use the device in spaces with constantly high ammonia concentration such as cattle, pig and poultry livestock houses, since it shortens the sensor lifetime.

EK30 one-sided light module is intended to warn people in areas, where hazardous concentrations of gas can accumulate. The module has visual and sound alarm which can be individually configured. Custom text can be ordered in different colors, according to customers needs. Text visible on one side.

ET4xx-S011 family of long stem thermometers is designed for temperature measurement at several meters depth in fuel oil tanks, peat or compost pits and other similar applications.

Model E6500 is 1/8 DIN size panel mount controller, designed for accurate temperature measurement and regulation in a large variety of applications and industries. Universal input supports Pt50, Pt100, Pt500, Pt1000, Ni500 and Ni1000 RTD sensors in two, three or four wire circuit, or thermocouple types B, J, K, N, R, S or T with internal cold junction compensation. The controller features enlarged dual LED display, three outputs, On/Off control modes with fast autotuning to reach a setpoint in the shortest time with minimum disturbance.
