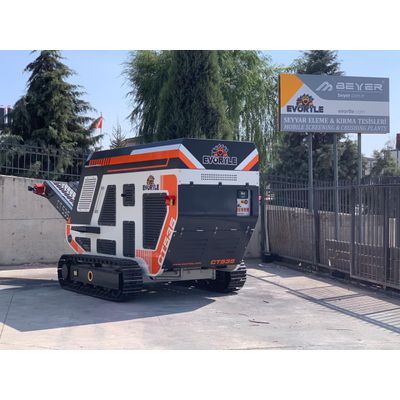

The CR 535 is compact mobile jaw crusher which providing an ideal solution for recycling construction and demolition waste onsite. Because of quick set-up time and easy transport, CR 535 is ideal for small size operation. Jaw crusher can be adjusted hydraulically so changing the product size takes less then one minute. All the function are controlled by the remote control system that means only one man can operating machine.

Feed Hopper Volume: 0.5 m³ (0.7 yd³)*.

Capacity: Max. 80 m3/hour. Feeding Hopper Volume: 4 m³ (5.2 yd³)*. Remote Controlled Hydraulic Tilting Hopper Grid. Main Belt Conveyor Width: 800 mm (31.5"). Speed Adjustable Main Belt Conveyor. Forced Vibratory Special Screening Machine: Eccentric Pivot, 4-Housing. Screen Dimension: 2.5 x 1.25 m / 2 Decks (8` 3" - 4` 1"). 3 Units of Hydraulic Collapsible Belt Conveyor Attached to the Plant. Control Panel. Tandem Axle Chassis with Air Brakes, Towing Eye and Taillights. It can be towed up to speed of 80 km/h on highway (50 mph).

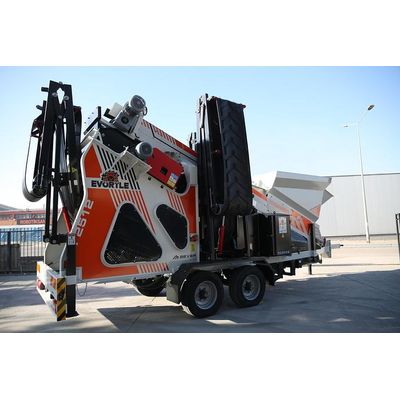

Formerly known as the Beyer BM2512R-MOD, but now the Evortle SR2512-MOD: No Hopper, 24" Feeder, 3` x 6` 2-Deck screen, 18" x ` Fines Conveyor (7`-4" discharge height), 16" x ` Middles Conveyor, 16" x ` Overs Conveyor, 30-60 TPH Production.

Optional Properties:  Diesel Driven Generator Set 25 kVA. Piano Mesh Wire and Stretcher. Sloped Hopper Grid. Washing (Spraying) System. Additional Stock Conveyors.

Feeding Hopper Volume: 4 m³ (5.2 yd³)*

Vibro-Feed Hopper Volume: 0.7 m³ (0.9 yd³)*.  Jaw Crusher Entry Opening: 500 x 350 mm (19.7" - 13.8").

Feed Hopper Volume: 0.5 m³ (0.7 yd³)*. Jaw Crusher Entry Opening: 500 x 350 mm (19.7"-13.8").

Remote Controlled Hydraulic Tilting Sloped Grid. Forced Vibratory Special Screening Machine.

Width: 650 mm 120 mm (25" - 47")*. Length: 30 m 250 m (30 yd - 275 yd). Onboard Transformer: If Required.
