The SFC3000 is far more than just a dedicated flow computer. It can operate on a number of levels from a supervisory machine to a standalone flow computer or as a system component. With its touch screen, VGA display and extensive processing capabilities, combined with simple to use controls and unique operating software it can function as a complete station supervisor integrated into a flow computer housing. Designed specifically to meet the needs of the world wide liquid hydro - carbon and gas measurement markets, the SFC3000 is intended to positively contribute to both management and conservation of the world’s dwindling energy resources by providing both versatile and accurate measurement and incorporating state of the art designs and components.

3 Pulse Counting/ Frequency measurement inputs: DC to 5KHz, ISO 6551 or API Chapter 5.5

3 Pulse Counting/ Frequency measurement inputs: DC to 5KHz, ISO 6551 or API Chapter 5.5

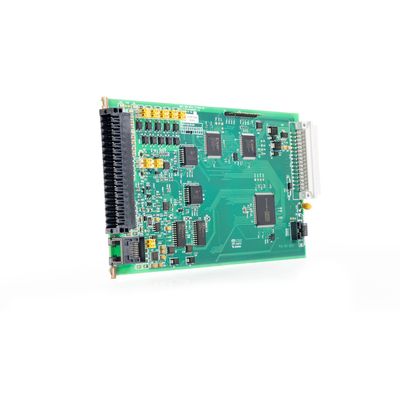

Specification and use as in I/O Digital STREAM BOARD with the following Inputs and Outputs. 3 Pulse Counting/ Frequency measurement inputs. 2 Switch / Valve Status input. 1 HART® transmitter loop. 3 Analogue 4-20mA Inputs. 1 Selectable Analogue 4-20mA Input or Digital Output. 1 Direct PRT (4 wire) Input. 3 Digital Outputs (Output 1 can be used for prover output frequency). 2 Analogue Outputs. 1 Selectable Analogue Output or Digital Output. 1 Serial Communication connection.

Specification and use as in I/O Digital STREAM BOARD with the following Inputs and Outputs. 3 Pulse Counting/ Frequency measurement inputs. 3 Switch / Valve Status inputs. 6 Digital Outputs. 6 Selectable Digital Status Inputs or Digital Outputs. 1 Serial Communication connection.
