Explosives Instrumentation Technologies Corporation (EIT) products

Output:  150VDC  1.5 Joules, Firing Capacity: 50 Ohms. Wieght:  15 oz. (0.42 kg). Battery:  1 - 9V Battery.

To Test: Always check blasting circuit with appropriate for blasting test device prior to connecting to Blasting Machine- Before connecting to blasting circuit, depress `CHARGE` switch until `READY` light illuminates. While maintaining pressure on `CHARGE` switch depress `DETONATE` switch. `READY` light should extinguish immediately. Caution: Do NOT relax `CHARGE` switch when depressing `DETONATE` switch. The dual switch firing circuit assures the blaster`s intent to initiate. When `READY` light fails to illuminate within 5 seconds, replace the Heavy Duty Alkaline 9V battery accessible through the battery cap located on the right side of the unit. Make note to insure proper polarity when replacing battery. To Fire: Connect Blasting Machine to blasting circuit and repeat `CHARGE` AND `DETONATE` sequence as in To Test.`

NEVER use the HB-15 as an alternate energy source on equipment for which it was not designed. Never use a damaged or questionable machine. EIT Corporation repairs all units which it produces. Output oscillographs are recorded for every machine. If a copy of these test traces is required please contact EIT Corporation-

NEVER use the HB-50asan alternate energy source on equipment for which it was not designed. Never use a damaged or questionable machine. EIT Corporation repairs all units which it produces. Output oscillographs are recorded for every machine.

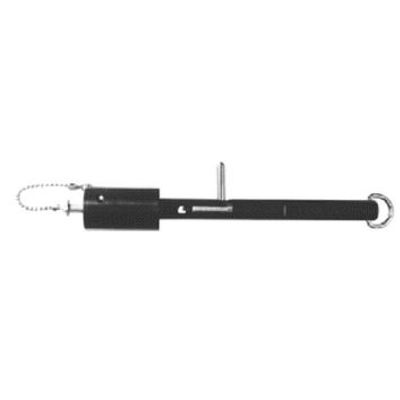

E.I.T. HR mechanical initiators are designed for initiation of non-electric blasting systems. Initiators are made ready by loading a #209 shotgun shell primer into the breech block and then threading the shock tube through the flashguard and into the nozzle. Once loaded the unit is ready to initiate from its cocked position.

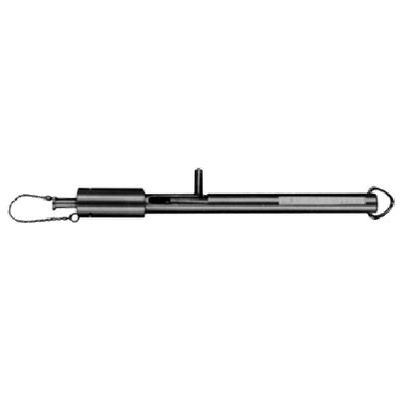

E.I.T. HR mechanical initiators are designed for initiation of non-electric blasting systems. Initiators are made ready by loading a #209 shotgun shell primer into the breech block and then threading the shock tube through the flashguard and into the nozzle. Once loaded the unit is ready to initiate from its cocked position.

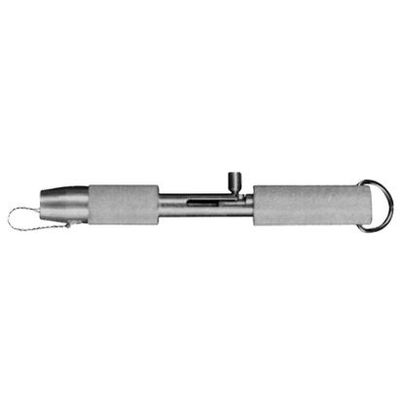

E.I.T. HR mechanical initiators are designed for initiation of non-electric blasting systems. Initiators are made ready by loading a #209 shotgun shell primer into the breech block and then threading the shock tube through the flashguard and into the nozzle. Once loaded the unit is ready to initiate from its cocked position.

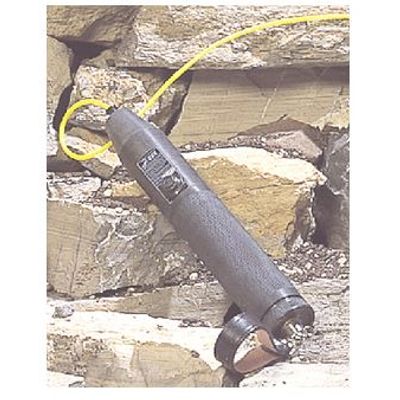

The Scorpion HR-1 extends E.I.T.’s long line of non-electric initiators. One bottom-loading 9V battery powers the HR-1 and may be removed and replaced using the easy one-step battery cover. The waterproof HR-1 also features an impact-resistant case and a factory-supplied belt loop.

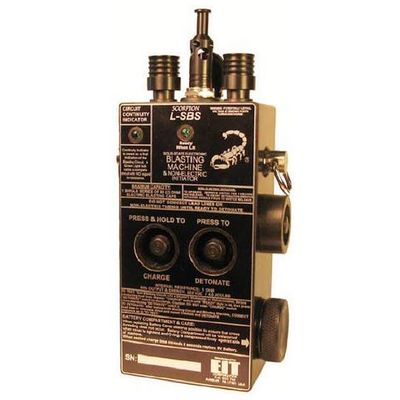

The Scorpion L-SBS stands for Small Blasting System. This machine was designed for blasters who typically fire smaller electric blasts and also use non-electric blasting.

The Scorpion L-SBS stands for Small Blasting System. This machine was designed for blasters who typically fire smaller electric blasts and also use non-electric blasting.
