EXTRUDEX Kunststoffmaschinen GmbH products

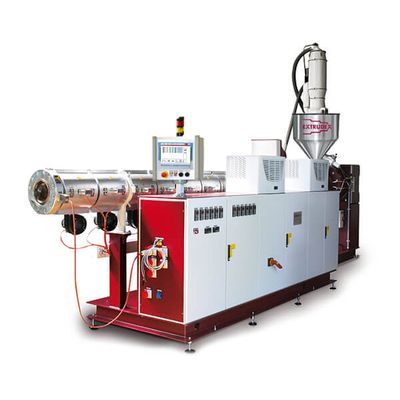

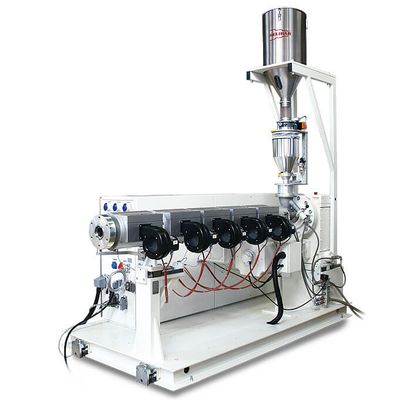

with grooved intake zone, axially or helically grooved barrel and barrier screw with shearing and mixing sections.

EXTRUDEX extruders with grooved intake zones provide significant benefits including: High pressure build-up and high pressure stability, High specific throughput rates, High intake and output consistency. These benefits are realized with all thermoplastic resins which are suited for solid-phase transport within grooves, i.e. which exhibit low "outer friction". Process-relevant components such as the screw and the grooved barrel are designed and/or optimized in accordance with the intended application at hand.

Multilayer die heads with interchangeable rotary distributor for maximum process flexibility. Exchangeable rotary distributor permits realization of almost all common layer structures with only one extrusion head, Expandable plate-module design permits simple upgrading of extrusion head from 2 to up to 6 layers, Suitable for tube outer diameters in range 4 - 20 mm (larger diameters available on request)

MONOLAYER Pipe Die Heads for extrusion of monolayer pipes and tubing e.g. in PP, PE, PA, PPS or WPVC. With spiral mandrel or spider distributor, Outer diameters in range 4 -110 mm, Wall thicknesses in range 0.5-20 mm, Personalized colour stripes as required

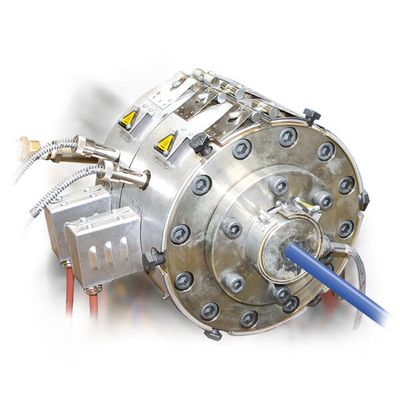

MONOLAYER Crossheads and Sheathing Heads for coating / sheathing of pipes, tubes, wires and cables. With rotary distributor, Outer diameters in range 4-100 mm, Wall thicknesses in range 0.1-3 mm
