FAFNIR GmbH products

VISY-Density Module. Highly Precise Density Measurement Module. The density measurement module VISY-Density determines the density of fuels. It can be mounted on the VISY-Stick, eliminating the need for an additional sensor. Used in combination with the density measurement module, VISY-Stick provides extremely exact information about product fill level, water level, product temperature and product density in the tank. Continuous measurement of density without hysteresis. Function in combination with the fill level sensor VISY-Stick. Quality control of the fuels.

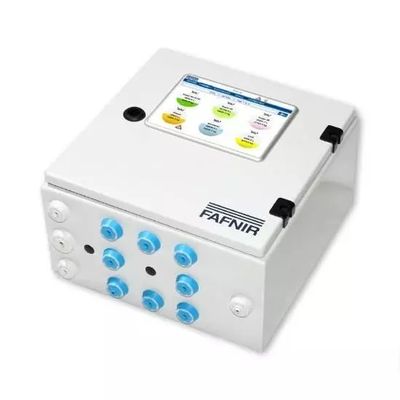

Measurement Analysis with Graphic Display. VISY-Command GUI includes the intrinsically safe electric current of the VISY-Stick probes and their measurement analysis and provides up-to-date data at any time via various interfaces. The integrated display unit with the 5.7" colour touch screen provides and displays the current measurement values and the reporting functions in a user-friendly form. Attachment of as many as 3 different sensors to one connection. Up-to-date overview of tank contents using graphic display.

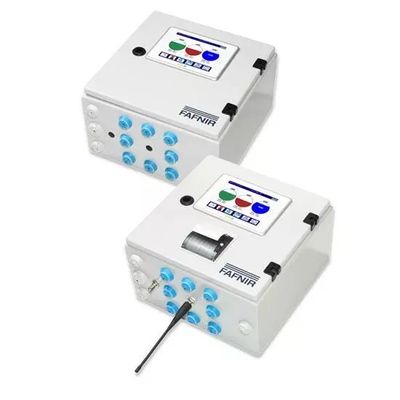

The control unit with integrated SECON-X functionality for worldwide access to your data. The VISY-Command Web is a universal measurement evaluation unit for petrol stations with optional remote access via encrypted and secure internet interface. With internet-capable devices such as smartphones, PCs or tablets, real-time data is available at any time. The graphic user interface of the VISY-Command Web displays tank levels and alarms graphically. Wet stocks, deliveries and leakages can be viewed both locally and via secure VPN access at any time. Local client-side server guarantees strong data protection. Standardized data format (XML) . Hierarchical data access enables company-specific access rights.

The VISY-Stick Interstitial is an interstices sensor and is used for the quick detection of leakage. It is used in double-walled tanks when the interstices have been filled with a leak-detection fluid. If the level of the liquid in the defined area of the interstice changes, an alarm is triggered. Continuously measures liquid level and temperature. Immediately triggers an alarm in case of leaks. Simple and low-cost installation and start-up.

The VISY-STICK Sump sensors are used to monitor the manhole shafts and the shaft below the dispenser. The sensors detect any liquids which may collect in the shafts and can quickly and precisely distinguish between water and fuels. Measurement of water level in manhole or dispenser shaft. Alarm is triggered when fuel and water and detected. Encapsulated design for protection from contamination. Equipped with manipulation guard.

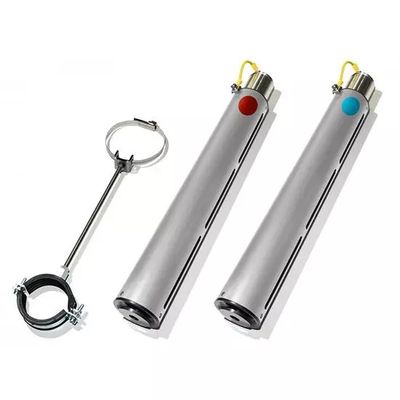

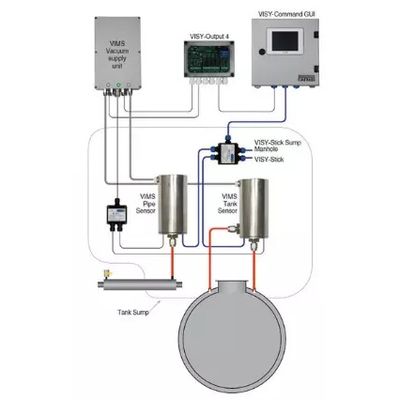

VIMS is the smart solution for leak detection and leak prevention for double walled pipes and tanks. VIMS is the smart solution for leak detection and leak prevention for double walled pipes and tanks. A leak in either of the walls will be detected before any product can enter the environment. VIMS fulfils the highest level of environmental protection and meets the requirements for class I leak detection EN 13160-2.

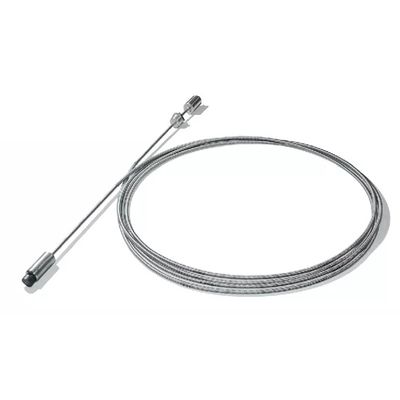

The flexible magnetostrictive sensor for Tall Tanks. The VISY Stick-Flex flexible magnetostrictive sensor is a practical and cost effective solution for accurately monitoring above ground fuel storage tall tanks with heights of up to 22 meters. Used together with any of FAFNIR’s leading VISY-Command control units, all wet stock management and inventory control requirements can be automated, allowing efficient management both on site and in the headquarter. Simple & Cost-Effective Installation: The sensors corrugated hose is stretched by a weight and a magnet which affixes itself at the bottom of the tank. Tried & Tested: VISY-Stick Flex systems offers high accuracy tank level measurement. They are ideal for fuel, depots.

Flexible sensor with accurate temperature measurements for Tall Tanks. The VISY-Stick Flex Temp is a sensor that achieves high levels of accuracy through 31 integrated temperature sensors (max) for precise measurement of liquid temperatures in Tall Tanks. The VISY-Stick Flex Temp works along with the VISY-Stick Flex for monitoring the liquid temperature and to eliminate the possibility of errors. The data can be visualized through the VISY-Command Web console and remote monitoring is also possible using SECON-X. Please visit VISY-Stick Flex and SECON-X to learn more about these products. The sensor is easy to install and the weight at the end of the corrugated tube stretches the sensor and is fixed to the bottom of the tank by means of a magnet. Thus, the sensor is vertically positioned in the tank.

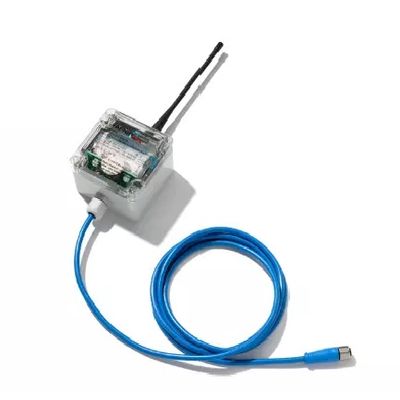

The tank content measurement system VISY-X is also available in a version for wireless operation. The VISY-RFT transwithter module mounted in the manhole shaft wirelessly sends the tank data recorded by the tank content sensors VISY-Stick to the measurement analysis VISY-Command RFR which is equipped with one, optionally two, external reception aerial(s).
