FAN Separator GmbH products

Inlet housing and screen housing made of cast iron. Press flange with output regulator made of stainless stell with 4 weights. Base plate made of stainless steel for an installation in the floor  5" outlet. Screen reinforced 520, Optional screen width. Auger 200/800/1100, 5-10, TD, 2SFK (F10412180). Oscillator connection size 4". Gear motor  U IEC 5,5kW  (F10632721).

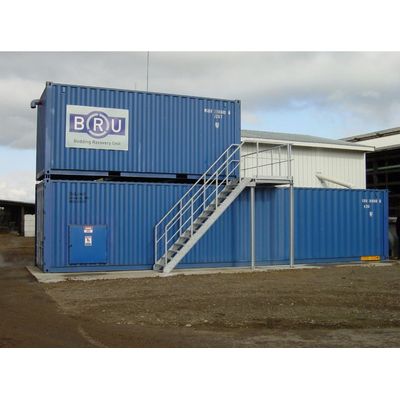

1 x ISO 20’ container, completely isolated for applications with low ambient temperatures (up to  –35°C)

Submersible motor mixer with 400V/50Hz submersible motor, 1450 min-1 Two-wing thrust propeller - stainless steel Mounting bracket with grade adjustment - in stainless steel Planetary gears, mechanical seal in oil bath, safe from running dry Thermal winding protection (PTC / PTC resistor) Temperature class H, media temperature 65°C Sealing sensor for planetary gear 12 m cable 12x2,5 in especially durable design with traction relief and 6m cable protective tube - without plug Motor protection is guaranteed only with original BAUER control unit (accessory) with built-in thermal tripping relay for PTC thermistor detectors and overcurrent relay.

Submersible motor pump with adjustable cutting device (CSP). Spiral housing and suction bell made of cast iron. CSPH: Impeller and cutting disc made of chrome steel. ESPH: Impeller made of spheroidal cast GGG60. Pump shaft made of stainless steel with angular ball bearing. Three phase current - submersible motor 4-polar for 400/690v/50hz / ip 68 with 8m cable 12g x 2,5² 1m cable protective tube and strain relief. Sealing on motor end: mechanical seal in oil bath. Sealing on pump end: closed and stainless steel mechanical seal. Motor temperature class h, with triple ptc resistor 180° c, for thermic winding protection. Medium temperature up to 65° c.
