By means of junction accessories such as aligner clamp or pin and wedge, the green steel hinge, connected to the formworks already supplied, enables users to create tanks, silos, ramps and anything else required to circulate. The use of through bars often incurs in the problem of infiltration due to the capillary effect. To solve this problem and thus ensure perfect water-tightness of the tanks made with its own ad hoc system.

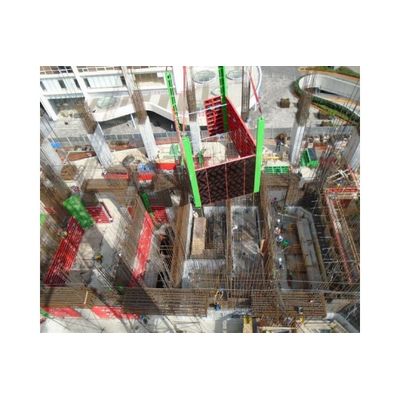

The lift shaft is made up of the modulo formwork of both sections and of four bi-tapered blocks, located in the inner corners. In the external part, formwork joined in the traditional way are used: clamps or pin and wedge, while the standard vice is used for the corner. For the following casting, it will only be necessary to reciprocally slide the bi-tapered blocks, placed in the corners, to aid the dismantling and their further reuse. The upper casting will be made using the mould supporting stirrups positioned on the previously obtained bar passage hole.
