Farwest Corrosion Control Company products

Chill Cast in Metal Molds: Assures consistent weight, greater density, less flake graphite grain boundary, and lower chemical segregation than Sand Cast Anodes. The ANOTEC Chill Cast structure is similar to "Spin Cast" Tubular Anodes.

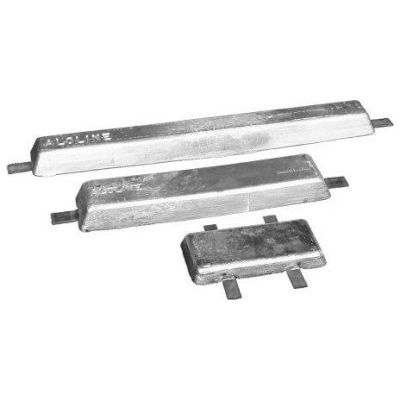

Aluminum anodes have long been used in the fight against corrosion. Applications for aluminum anodes include ship hulls, tank interiors, offshore structures, submerged pipelines, piers, pilings, etc. ALOLINE aluminum anodes are designed for optimum performance under a variety of environmental conditions and temperature ranges. Cast in different sizes and weights, ALOLINE anodes provide maximum performance in seawater and brackish environments.

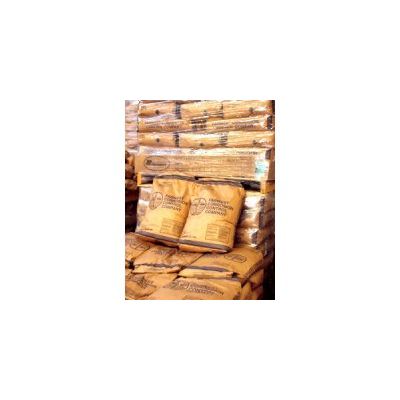

With the right coke breeze backfill, anode-to-earth resistance is decreased, since the backfill column functions as the anode rather than just the anode material itself. Gas blockage and drying tendencies are decreased by the increased anodic reaction surface area. Anode life is increased by the shift of the oxidation reaction from the anode surface to the backfill surface. Also, the backfill maintains hole integrity and prevents cave-in.

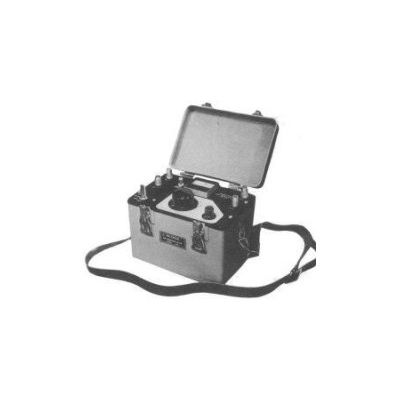

Designed for use by non-technical personnel, such as crews, servicemen, meter readers, etc., but also suitable for the most experienced engineers and technicians. 20 megohms input resistance practically eliminates low potential readings caused by resistance in the external circuit due to contact resistance of the reference electrode. This condition is frequently encountered in city work and in frozen ground.

Wide Range - High Sensitivity - Latest in Integrated Circuit Technology No Moving Parts - No Vibrators to Change - All Solid State Thoroughly Field Tested - Less than 8 Pounds.
