FAST ComTec GmbH products

It can be used in ultra-fast Multi-scaler and TOF systems, in Time-of-Flight mass-spectrometry and time-resolved single ion- or photon counting, fluorescence livetime imaging microscopy (FLIM). Pulse-width evaluation with 80 ps precision enables the user to calculate the area, the pulse height of the detector pulse but also if multiple events have occured - multiple events have a broader pulse width than single pulses.

It can be used in ultra-fast Multi-scaler and TOF systems, in Time-of-Flight mass-spectrometry and time-resolved single ion- or photon counting, fluorescence livetime imaging microscopy (FLIM). NEW !! Pulse-width evaluation with 100 ps precision enables the user to calculate the area, the pulse height of the detector pulse but also if multiple events have occured - multiple events have a broader pulse width than single pulses.

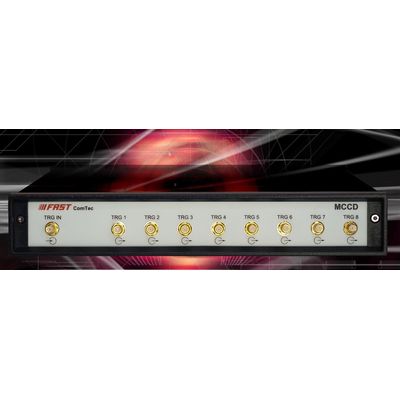

The Model MCCD is a fast pulse distributor intended to be used with multiple MCS8A modules. It expands one common START signal to several synchronous starting MCS8A units. The introduced additional time jitter is typical less than 0.075ps rms. Output rise / fall time is 60 ps. The minimum pulse width is 90ps. It can operate up to 6 GHz periodic signal frequency. In addition there is a synchronous clock source at the rear panel.

The MPA4 is a Multiparameter Data Acquisition System (4 or 8 channels). The MPA4 Multiparameter System is designed as an ultra fast list mode system with input ports for 4 or 8 ADCs, multiscalers or time-of-flight devices. 16-bit Ports can be combined to 32- or even 64-bit ports. For dependent single- and multiparameter acquisitions coincidence resolving times from approx. 20 ns (in steps of 20ns) to more than 1.3 ms can be selected. Eight 100 MHz 32-bit scalers are optionally available.

The MPA4T is a combination of a high resolution Multistop TOF System (1 START, 5 STOPS, 54 bit dynamic range) with a Multiparameter Data Acquisition System (4 or 8 channels).
