FBV Inc. products

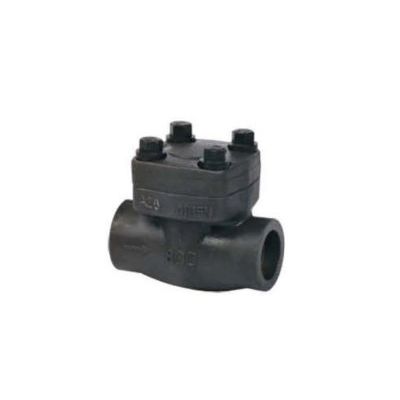

A swing check valve consists of a flap or disc which hangs down in the flow path. With flow in the forwards direction, the pressure of the fluid forces the disc to swing upwards, allowing flow through the valve. Reverse flow will cause the disc to shut against the seat and stop the fluid going back down the pipe. In the absence of flow, the weight of the flap is responsible for the closure of the valve.

A swing check valve consists of a flap or disc which hangs down in the flow path. With flow in the forwards direction, the pressure of the fluid forces the disc to swing upwards, allowing flow through the valve. Reverse flow will cause the disc to shut against the seat and stop the fluid going back down the pipe. In the absence of flow, the weight of the flap is responsible for the closure of the valve.

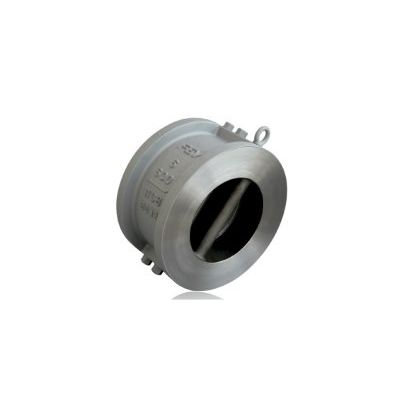

Wafer check valves, also known as dual-plate check valves, have two spring loaded half-moon shaped discs that rotate about their shaft. The disc plates are kept shut by a torsion spring. When fluid flows in a forward direction, the pressure of the fluid causes the disc plates to swing open, allowing flow. The check valve is closed by the spring as soon as flow ceases, before any reverse flow can occur.

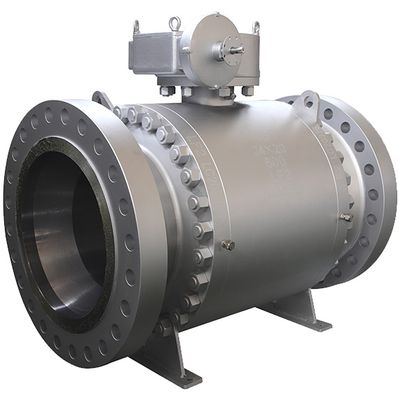

FBV trunnion ball valves are offered in 2 PC side entry, 3 PC side entry, welded body and top entry design in a wide range of carbon and stainless steel material.  FBV trunnion ball valves are manufactured according to API 6D Design and fire safe tested per API 6FA and API 607 Standard.

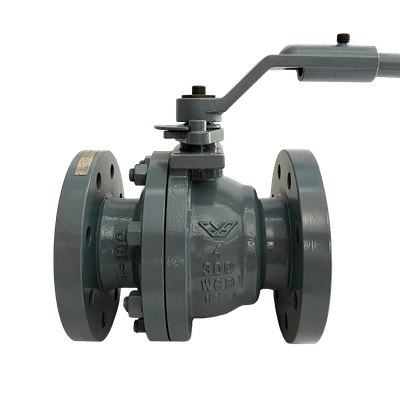

FBV floating ball valves are offered in 2 PC side entry, 3 PC side entry or welded body design in a wide range of carbon and stainless steel materials.  FBV floating ball valves are manufactured according to API 6D or API 608 Design and fire tested per API 6FA and API 607 Standard.

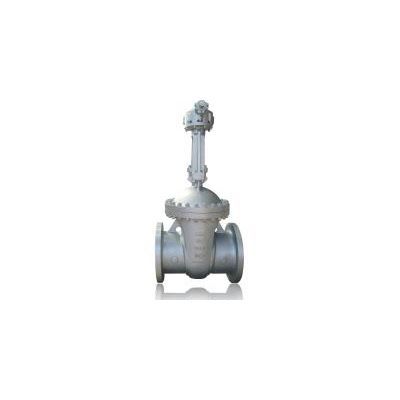

Sizes NPS 2 to NPS 48. Class 150 to Class 2500. Full or Reduced Bore. RF, RTJ, or BW. Outside Screw & Yoke (OS&Y), rising stem. Bolted Bonnet or Pressure Seal Bonnet. Flexible or Solid Wedge. Renewable seat rings.

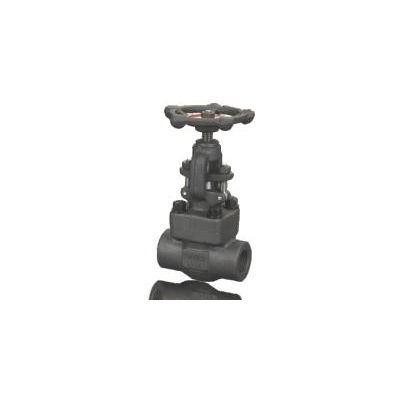

Sizes NPS 1/2 to NPS 4. Class 800 to Class 2500. SW, NPT, RF or BW. Outside Screw & Yoke (OS&Y). Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet

API 602 Steel Gate, Globe and Check Valves for Sizes DN 100 and Smaller for the Petroleum and Natural Gas Industries. BS 5352 Specification for Steel Wedge Gate, Globe and Check Valves 50 mm and Smaller for the Petroleum, Petrochemical and Allied Industries. ASME B16.34 Valves Flanged, Threaded and Welding Ends
. ASME B16.5 Pipe Flanges and Flanged Fittings: NPS 1/2 through 24
. ASME B16.25 Buttwelding Ends
ASME B16.10 Face to Face and End to End Dimensions of Valves
. ASME B1.20.1 Pipe Threads, General Purpose (inch). ASME B16.11 Forged Steel Fittings, Socket-Welding and Threaded. MSS SP-25 Standard Marking System for Valves, Fittings, Flanges and Unions

Sizes NPS 2 to NPS 24. Class 150 to Class 2500. RF, RTJ, or BW. Outside Screw & Yoke (OS&Y), Rising stem. Bolted Bonnet or Pressure Seal Bonnet.
