Fedrel products

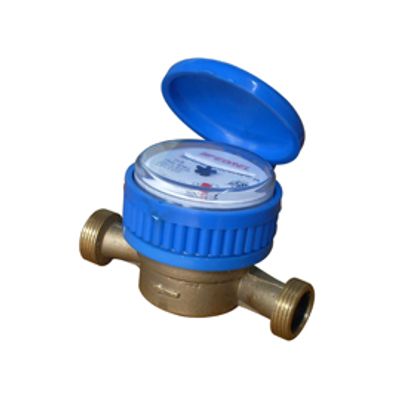

Description : FEDREL Make Single Jet Water Flow Meter. Size range : 15 mm (½”). Temp Range : 0°C to 45°C. Accuracy Class : Class B (±2 % @ Nominal flow rate). Product Standard : IS-779/ISO-4064. Body Material cum Standard : Brass IS-1264 Gr. DCB-2. Dial Details : Magnetic Drive, Extra Dry Dial. Protection Class : IP-68. End Details : Screwed Male Ends to BS: 21 BSP.

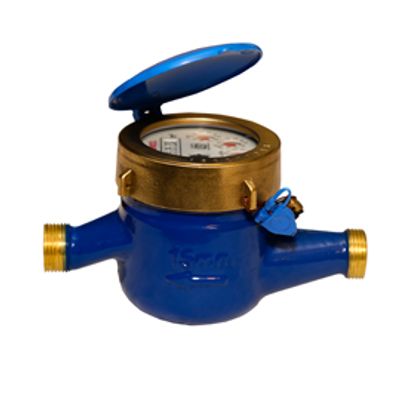

Description : FEDREL Make Multi Jet Water Meter (Brass Cover). Size range : 15 & 50 MM(½” To 2”). Temp Range : 0°C to 45°C. Accuracy Class :Class B (±2 % @ Nominal flow rate). Product Standard : IS-779/ISO-4064. Body Material cum Standard : Brass IS-1264 Gr. DCB-2. Dial Details : Magnetic Drive, Extra Dry Dial. Protection Class : IP-68. End Details : Screwed Male Ends to BS: 21 BSP.

Description : FEDREL Make Woltman Type Water Meter (Cold). Size range : 40 To 500 MM(1½” To 20”). Temp Range : 0°C to 45°C. Accuracy Class :Class B (±2 % @ Nominal flow rate). Product Standard : ISO-4064/IS-2373. Body Material cum Standard : IS-210 Gr. FG-200. Dial Details : Magnetic Drive, Extra Dry Dial. Protection Class : IP-68. End Details : Flanged Ends to BS: 4504 PN 16.

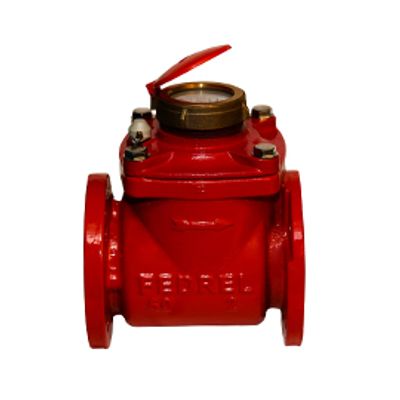

Woltman Type Water Meter (Hot) FM-03. Description : FEDREL Make Woltman Type Water Meter (Hot). Size range : 40 To 200 MM(1½” To 8”). Temp Range : 0°C to 90°C. Accuracy Class : Class B (±2 % @ Nominal flow rate). Product Standard : ISO-4064/IS-2373. Body Material cum Standard : IS-210 Gr. FG-200. Dial Details : Magnetic Drive, Extra Dry Dial. Protection Class : IP-68. End Details : Flanged Ends to BS: 4504 PN 16.

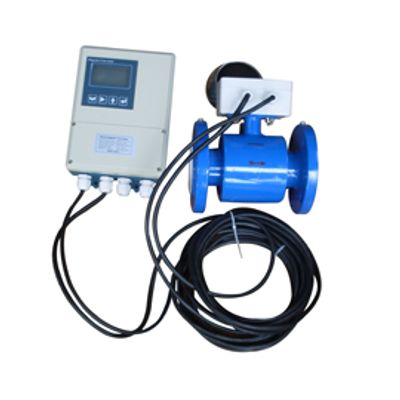

Description : FEDREL Make Electromagnetic Flow ADVANCED DATA LOGGING. Size range : 25 To 1000 MM(1” To 40”). Pressure Rating : PN-10/PN-16/PN-25. Display : Digital LCD. Flow Tube Material: SS-316. Electrode Sensor : SS-316 L. Dial Details : Magnetic Drive, Extra Dry Dial. Temp Range : 0°C to 120°C. Protection Class : IP-65. Enclosure: Die Aluminum Casting. Signal Output: 4-20 mA. Communication: RS-485. End Details: Flanged Ends to ASME B 16.5 (# 150). Transmitter: Power Supply 220 VAC, 4-20 Ma Output, RS-485 MODBUS protocol,8 digits display with resettable totalizer,LED backlight with LCD display, SS tag plate, IP-65 enclosure, Accuracy= ±0.5% & ±0.25%.
