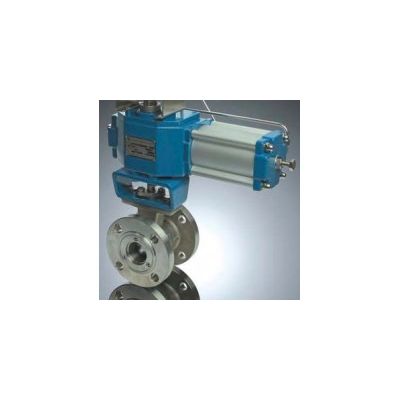

A segment ball valve combines globe valve control with the efficiency of a rotary ball valve. Additionally, the LINUO segment ball valve provides these features:

Economical metal seated valve. Bracket set available. Great for dirty, slurry service. Higher temperature + 650° F service. Live loaded packing is standard. Valves on the shelf; Ready now!

Economical metal seated valve. Bracket set available. Great for dirty, slurry service. Higher temperature + 650° F service. Live loaded packing is standard. Valves on the shelf; Ready now!

The LINUO butterfly is a quarter-turn valve suitable for both on/off and throttling service. Less friction means not only less wear, but also less torque, and longer life. LINUO valves are used extensively in industries such as pulp and paper, chemical processing, petroleum, chemical fiber, powder processing, pharmaceutical, and environmental protection.

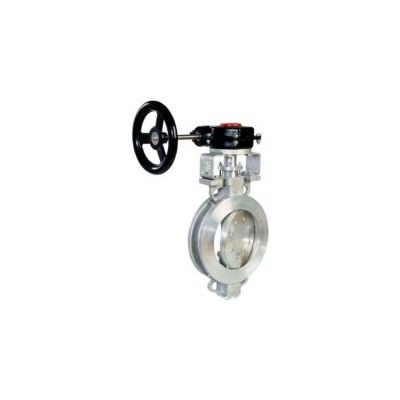

The triple offset design offers torque seating for tight shut off and minimal friction. Where traditional butterfly valve discs are in contact with the seat throughout the first 10 degrees of opening, the triple offset means that as soon as the valve begins to open, the disc surface moves away from the seat. Less friction means not only less wear, but also less torque, and longer life. LINUO valves are used extensively in industries such as pulp and paper, chemical processing, petroleum, chemical fiber, powder processing, pharmaceutical, and environmental protection.

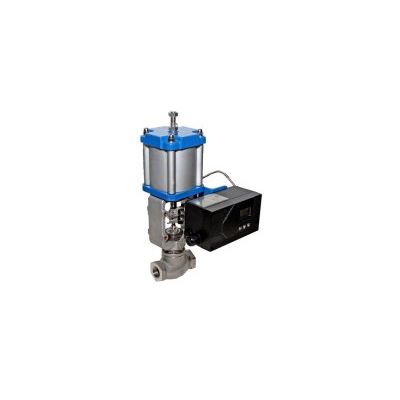

The GCV Control Valve series offers a light weight, economical valve with low pressure drop, maximum flow capacity, and reliable operation. Metal seated or soft - Depending on your shut-off requirements. Characteristics - valves can have linear trim or equal percentage. Trim options - Full Cv or reduced trim options are available. Automated - Valves are provided fully automated with SR actuators.

Nominal Diameter: DN50 through DN1200/2` through 48` Nominal Pressure Rating: PN 10/PN 16/ANSI 150.

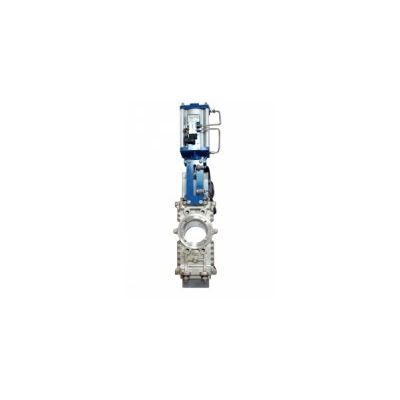

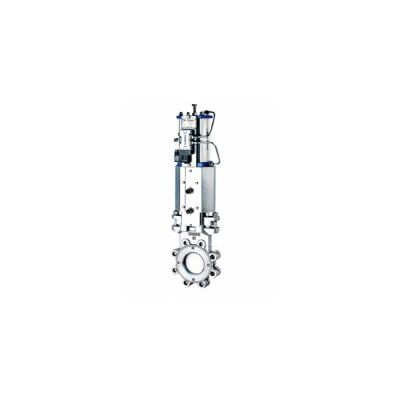

Design as per MSS SP 81-2001. Inspection and Test as per MSS SP 81-2001. Sizes: 2` thru 48`. End Connection Dimension as per ASME B16.5, Class 150. Body Material: Ductile Iron, Carbon Steel A105, 316 Stainless Steel. Seat: Metal, PTFE, EPDM, Viton. Operator: Hand Wheel, Bevel Gear.

Sizes: DA up to 132,000 in-lb torque at 100 psi. Medium: Clean, dry, compressed air or erosion free gas. Travel Stroke Adjustment: ± 5° adjustment at either 0° or 90° position. Springs: Self contained spring cartridge. Cylinder: Teflon coated for abrasion resistance and low friction. Ingress Protection: Rated IP67 for installation indoors or out.
