FG Water Technologies products

The Marina-C Series offers a sophisticated solution for seawater desalination, designed to produce between 100 to 320 tons of pure water daily. This container-type plant operates on an AC380V/50Hz/3-phase power supply and features diverse power configurations: 25Kw, 37Kw, and 60Kw. The system is engineered to achieve a recovery rate of approximately 35%, influenced by ambient temperature and source water quality. Constructed with 316L stainless steel and incorporating reverse osmosis membranes from German Speck and US Dow brands, the equipment ensures compliance with the GB5749-06 drinking water standard. It boasts an IP56 electrical control protection level, touch screen interface, and high-pressure pumps equipped with overpressure and under-pressure safeguards. The system is facilitated by automated functions like sand filter backwashing and reverse osmosis membrane cleaning, enhancing operational reliability and maintenance efficiency for diverse water treatment applications.

The iDesalt C Series watermaker by FG Water Technologies is engineered to convert seawater or highly saline brackish water into potable water utilizing advanced reverse osmosis technology. This containerized desalination system integrates essential components such as pretreatment systems, RO systems, and chemical dosing mechanisms within a compact design, minimizing the need for extensive on-site installations. It is crafted to meet industry standards like ASME and ASTM, ensuring durability and performance. Featuring advanced technologies like a super duplex high-pressure pump and an isobaric pressure exchanger, it enhances energy efficiency and operational reliability. The system is capable of producing 50 to 2000 m³/day of pure water, making it suitable for varied industrial applications, including island residential, hotels, and construction sites. Its modular design allows for easy transport and installation, with options for additional components based on site requirements and system specifications.

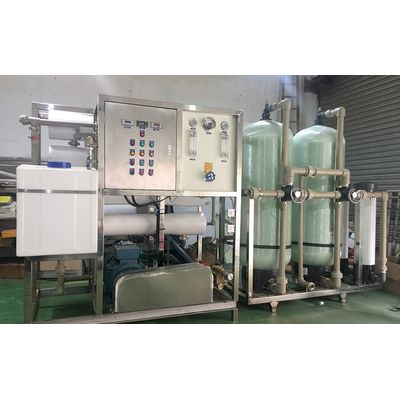

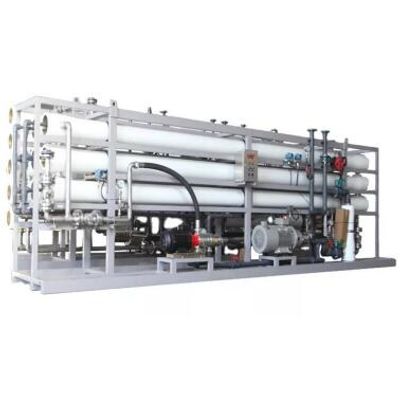

The Rogen Series BWRO system by Wuxi Fenigal Science and Technology Co. Ltd. is designed to efficiently produce water with low dissolved solids, drawing from sources like tap or well water. This system, with its high-efficiency reverse osmosis membranes, handles a capacity range of 200,000 to 900,000 gallons per day. Applications include semiconductor manufacturing, boiler feed, pharmaceuticals, municipal water reuse, food processing, and bottling. Its features include 8-inch TFC spiral wound membranes, a stainless steel multi-stage pump with a TEFC motor, and FRP membrane housings. The system is equipped with a PLC-based control panel, HMI screen, and liquid-filled pressure gauges, ensuring precise monitoring and control. Optional enhancements such as remote monitoring, feed water conductivity monitors, membrane cleaning skid, and containerized RO systems, allow for customized optimization based on specific operational requirements.

800 tons of water treated with 1kWh killing more than 99.99% of pathogens. We have over 10 years of experience in water treatment field.
