Fibrelite Ltd products

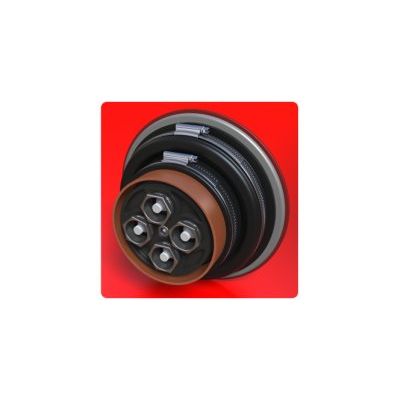

Our range of pipe and cable entry sealkits provides the perfect watertight solution to prevent leaking pipework and cable -penetrations through chamber walls: a major issue facing oil companies and installers around the globe.

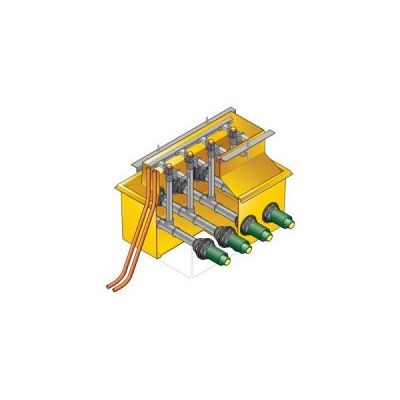

Fibrelite’s vacuum testable GRP dispenser sumps provide a strong, hard-wearing, liquid-tight containment solution that will last for the lifetime of the site. Unlike polyethylene, GRP will not deflect under ground water pressure or lose rigidity in extreme temperatures (from -50°C/-58°F to 50°C/120°F-). Manufactured using the latest in GRP technology, Fibrelite offers the largest range of dispenser sumps available. Each is designed specifically for the dispenser make and model complete with all fixing hardware. This simplifies installation and ensures a watertight system. All dispenser sumps are fully conductive for safety and supplied in two pieces to create the maximum possible space for maintenance teams and installers to work.

Fibrelite manhole covers now provide access solutions for every sector and remain the industry standard in retail fuelling, specified by all major oil companies. Covers come as standard with a C250 (25 tonne) load rating, for use in areas with slow moving traffic, or a D400/HS25 (40 tonne) load rating, for use in areas experiencing heavy wheel traffic – such as diesel lanes, truck stops or bus depots. Load ratings from B125 (12.5 tonne) to F900 (90 tonne) are available on request. Custom covers can be made in any colour or even incorporate custom logos or markings moulded into the upper surface of the cover for product or brand identification.

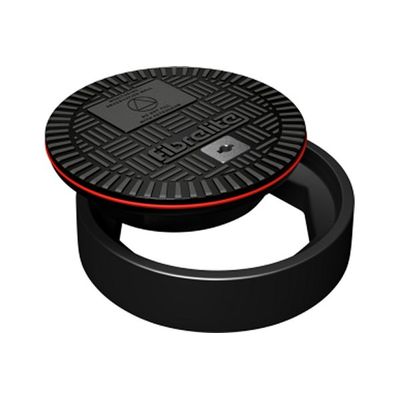

300mm (12`) diameter flat sealed flat sealed cover and frame - FL120. Standard FL120 composite flat sealed cover and frame.

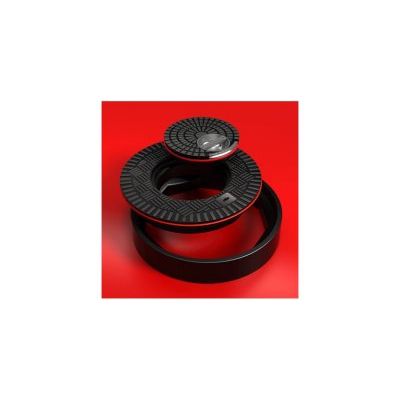

FL180-CF composite flat sealed cover with a central port, port cover (FC254/10) and frame.

Cover with a Monitoring Well ID plate and composite frame.

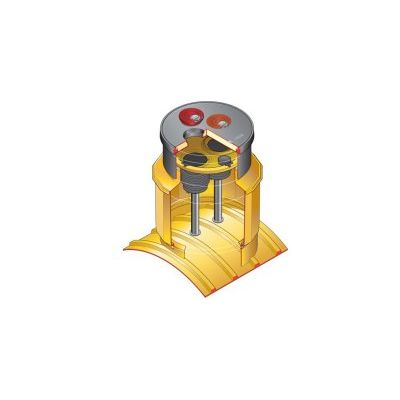

1.2m (48`) dia. 16 sided tank collar base chamber, corbel, internal lid, adjustable skirt, frame and round composite cover.

1.2m (48`) dia. 16 sided tank collar base chamber, corbel, internal watertight spill platform, adjustable skirt, frame and round composite cover with dual ports and fill covers.

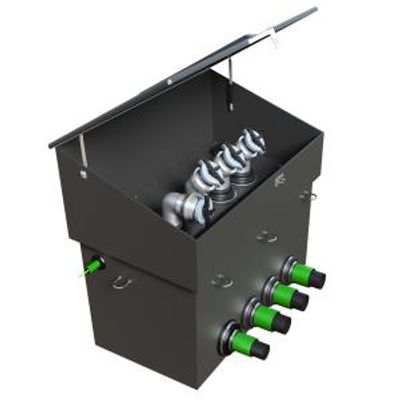

1237mm  x 686mm  x 1257mm  deep GRP above ground fill sump with hinged double door to fit up to 4 fill lines. System includes internal spill tray, pipework support rail and concrete tie fixings.

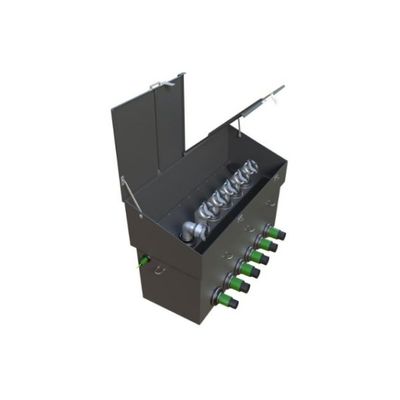

1737mm (68″) x 686mm (27″) x 1257mm (49″) deep GRP above ground fill sump with hinged double door to fit up to 6 fill lines. System includes internal spill tray, pipework support rail and concrete tie fixings.
