Filter Concept Pvt. Ltd. products

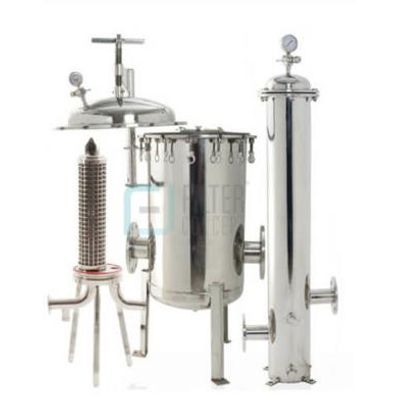

Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 500 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

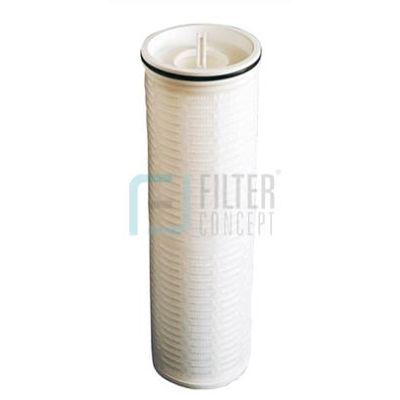

PP Pleated and glass fiber cartridges are designed for higher filtration area & high throughput. It has a 6 inch/152mm large diameter, is a coreless, single open-ended structure with an inside-to-outside flow pattern. Due to its large diameter with a big filter area, it requires lesser elements for a given flow rate than the standard cartridges diameter. Due to lesser elements, the Filter vessels’ size workout is smaller, resulting in lower capital investment and installation costs, as well as reduced operating costs.

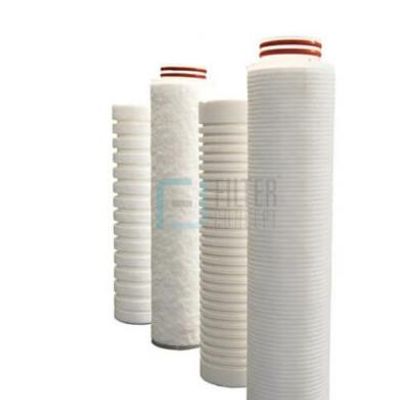

Spun bonded filter cartridges are made up of 100% polypropylene fibers. The fibers have been carefully spun together to form a true gradient density from outer to inner surface. Filter cartridges are available with core & without core version. The superior structure remains integral even under severe operating conditions and there is no media migration. Polypropylene fibers are blown continuously on central molded core, without any binders, resins or lubricants.

Filter bags are manufactured for optimum filtration performance. They are made from carefully selected media, according to the specifications of the process industry. The various types of media used comprise of needle-felt, monofilament and multi-filament. They are effective in removing solid particulates from liquids where large volumes of contamination are present or where highly viscous fluids are required to be filtered. They offer an effective solution to many filtration problems.

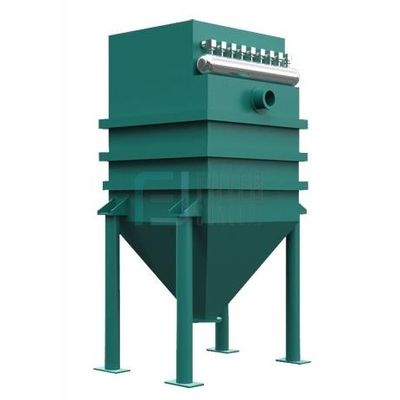

Filter Concept is manufacturer of Pulse Jet Dust Collection system for various Industries requirement for air quality improvement and enhancing the quality of air released by collecting dust and other impurities from air or gas by removing particulate matter from the air and environment. We are a manufacturer of highly customized units to accurately match your Application requirements with customized ducting solutions along with our dust collectors for your specific dust collection requirements.

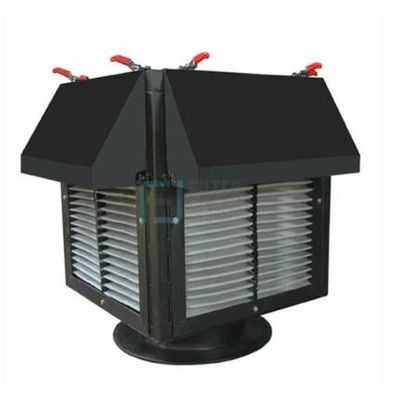

TURBINES, ENGINES, CENTRIFUGAL FANS, BLOWERS, & COMPRESSORS are common equipment for Industrial utility. They intake atmospheric air for its further operations. If moisture, dust, and varieties of solid particulate are present in the intake air, such contaminants can build up on the internal components such as valves, impellers, rotors, and vanes of the compressor, Turbines, Engines, Centrifugal Fans, Blowers . Such build-up can cause premature wear and reduce the efficiency. Therefore, it is recommended to install AIR Intake filters to avoid atmospheric dust particles coming with Air.

Pleated dust collection bags are now widely used in the field of dust collection system. These are made up of 100 % Spun Bonded polyester media with different coatings on it, as per requirement of applications.This spun bonded media are pleated in different pleated depths & heights to accommodate desired filtration area. Spun bonded filter media offers surface filtration, due to which pleated bags offer very high throughput & lower pressure drop across the filter compared to any conventional tube type filter bags. Pleated configuration offers almost 3 – 4 times higher filtration area compared to conventional bags.

We offer a range of gas filtration systems for removal of dirt, dust, rust, condensates, moisture contents, oil impurities & exhaust fumes. Filtered gas results low down time & reduces the production loss. These filtration systems are designed depending on their flow requirement, line size, working pressure, working temperature & level of filtration rating. Filter housings can be made of SS 316, SS 304, carbon Steel or aluminum. Filter elements are made of varieties of selective fiber media to achieve desired filtration level.

Compressed air is a very common source of energy. For its effective utilization, it must be clean. Filter Concept offers a wide range of compressed air filters for the removal of dirt, dust, rust, condensates, moisture contents, oil impurities & exhaust fumes. Filtered compressed air results in lower downtime & reduces production loss. These filtration systems are designed based on their flow requirement, line size, working pressure, working temperature & level of filtration rating. Filter housings can be made of SS 316, SS 304, carbon steel or aluminum. Filter elements are manufatured with varieties of selective fiber media to ensure desired filtration level is met.

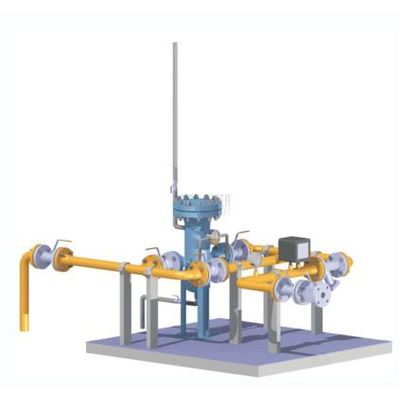

FilterConcept is keen to deliver the highest level of quality the products to its customers.With endeavor to that, FCPL has introduced Metering Skid Filter Systems to cater the demanding application of the oil & gas Industry. We offer a wide array of filter vessels that are compact and provide immediate turnkey solutions for several filtration needs.
