Filtertechnik Ltd products

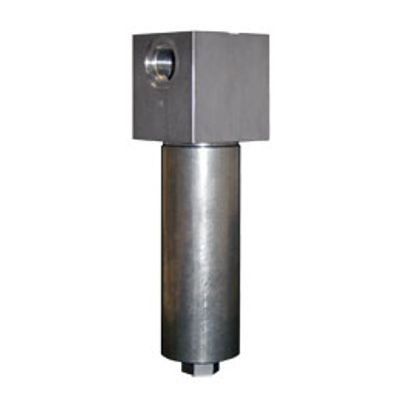

Filter Housing Specifications: Fluid compatibility: Petroleum based fluids, High Water Content, Invert Emulsions, Water Glycols, Phosphate Esters, Skydrol. Flow Rating: Up to 100 gpm (380L/min) for 150 SUS (32 cSt) fluids. Max. Operating Pressure: 100 psi (7 bar). Temp. Range: -20°F to 225°F (-29°C to 107°C). Bypass Setting: Cracking:Cracking: 30 psi (2 bar); Full Flow: 51 psi (4 bar). The RT filter is perfect for a range of industries including automotive manufacturing, mobile vehicles, steel making, machine tool and many more.

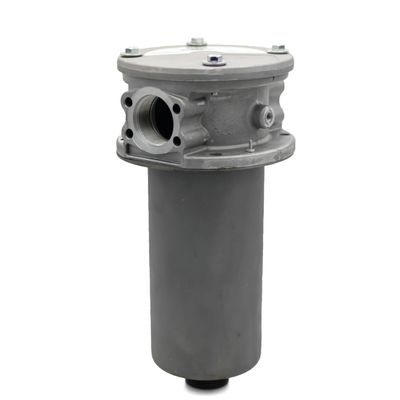

Filter Housing Specifications: Fluid compatibility: Petroleum based fluids, High Water Content, Invert Emulsions, Water Glycols, Phosphate Esters, Skydrol. Flow Rating: Up to 30 gpm (115 L/min) for 150 SUS (32 cSt) fluids. Max. Operating Pressure: 6000 psi (415 bar). Temp. Range: -20°F to 225°F (-29°C to 107°C). Bypass Setting: Cracking 40 psi (2.8 bar). The RF60 can be used in a variety of industries including mining, agriculture, steel making, mobile vehicles, construction and many more.

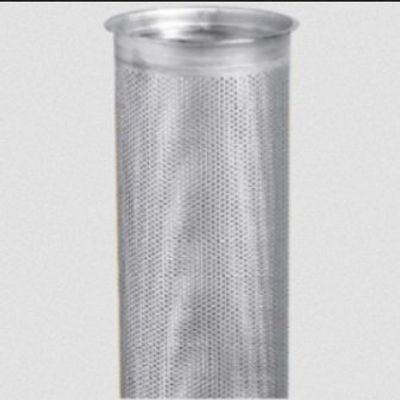

Filtertechnik Stainless Steel Mesh Cells have been designed to be used in standard filter housings and to provide cost effective filtration for a wide range of applications. They are manufactured from 316L stainless steel mesh so can be cleaned and re-used time and time again. Available in a variety of mesh sizes, these cells are robust and designed to withstand the most demanding filtration challenges.

Our Next Generation filter media provides superior filtration, cleaning contamination in oils down to 1 micron absolute. With its universal fitting, the filter element can be inserted into our stainless steel filter housings for clean and dry oil in no time and is capable of guaranteeing ISO cleanliness 14/12/10 or better. This cartridge has been designed to fit into all Filtertechnik stainless steel filter housings and our extensive range of oil filtration systems. Our filter media and cartridge design meets the highest levels of quality and incorporates a crush-protective centre tube to ensure durability and performance in the toughest applications.

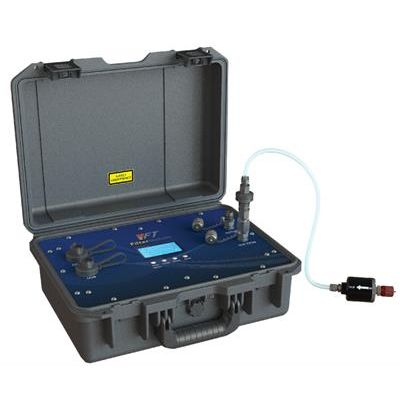

FS9V2-RH Real time measurement and display of particulate and water as %RH (% Saturation). We have further developed the award winning Particle Pal by integrating a water sensor that displays the percent saturation or relative humidity (RH) in real time.  By incorporating a state of the art water sensor into the FS9V2 compact design, you can now get instant water %saturation levels for accurate, repeatable measurement as well as the same features the new FS9V2 Particle Pal offers; ISO/NAS/SAE readouts of particulate cleanliness, memory, priming features ets.

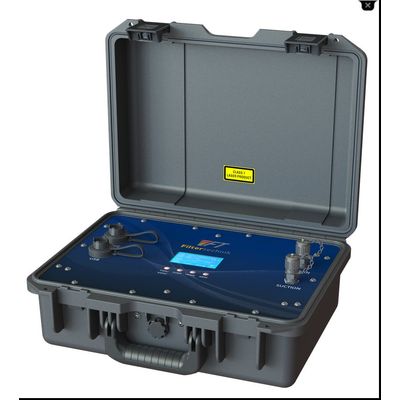

Particle Pal is a self-contained portable measuring system that gives ISO, NAS and SAE Particulate Cleanliness readings and Water Content analysis for Oils and Diesel Fuels. Complete with a rechargeable battery, high-pressure internal gear pump and controlled flow rate. Whether on-site or in the laboratory, the Particle Pal will provide cleanliness readings in real-time to allow you to understand the condition of your oil or fuel. Our FS9V2 units now have a single LCD showing all the connected sensors in real-time. We`ve added an internal memory for capturing data with a simple USB data transfer of results which can be printed in tabular or graphical format. Also included is powerful trending software which shows real-time cleanliness data in graphical format via USB transfer to a connected PC.

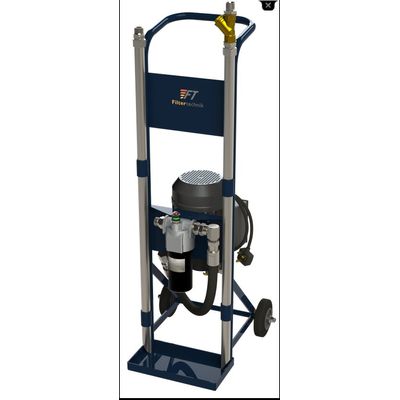

The Sentry is our entry level filtration cart designed to perform superbly within constant industrial or intermittent oil transfer applications. Fitted with a high-quality housing and absolute rated synthetic media elements it offers a flow rate of 25L/min alongside flexible filter  element selection and simple element changeovers. Use your Sentry to ensure that oil will be clean and ready for use at any time.

Do you want more from your filtration system? The SFC-3000 gives you just that. The SFC-3000 is a rugged filtration system designed for constant industrial or intermittent oil transfer use and more heavy duty than its entry-level counterpart the Sentry. Fitted with two high-quality filter housings, available in either 9” or 14”, it boasts a large dirt holding capacity and the option of staged filtration. On top of this, it offers a flow rate of 18 or 45L/min alongside flexible filter element selection to obtain a cleanliness level down to ISO cleanliness code 14/12/9-13/11/8.

When oil tanks need to be topped up, our range of dispensing systems are the natural choice. The integrated tank design, hose reel, pump and filter combination all offer excellent functionality and versatility, allowing for speedy, drip free top ups.

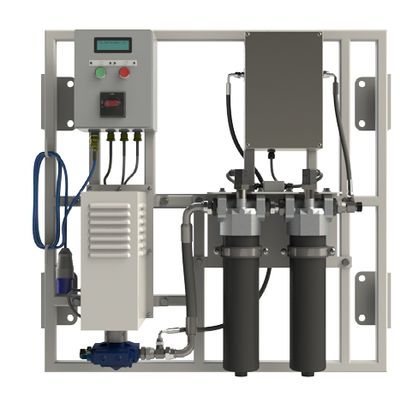

Filtertechnik have developed  an early warning system for hydraulic oil contamination designed to work inside a powerful hydraulic machinery, with in-cab display and alarms as well as additional off-line oil filtration. Designed to warn against rises in oil contamination due to particulate or water ingress. This system will extend service intervals as well as product life due to better filtration and early warning of contamination build up.
