Filtervac International Inc. products

The FilterVac Filter Carts are used to clean insulating oils found in switch gear and circuit breakers. These mobile and roadworthy filtration systems come with processing rates from 10-40 GPM and come equipped with one (1) or more particulate removing filter cartridges. A variety of filters are available with micron ratings down to 0.5 micron as well as water adsorptive cartridges. Typical system features include on board dirty and clean oil tanks, hose reels and power cables. Each system is designed to ensure operator friendliness and maintenance ease.

Standalone Vacuum Pump Packages to allow vacuum to be pulled on large transformers, FilterVac will supply a vacuum and booster pump assembly. This feature is provided to allow an operator to quickly reduce pump down times on a transformer.

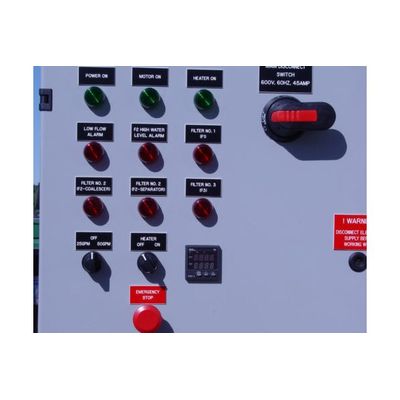

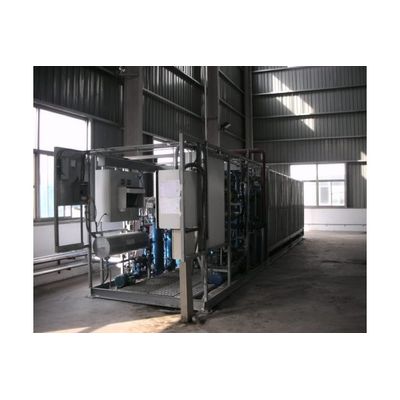

Filtervac also offers Coalescer/Separator purifiers that are able to remove free and emulsified water from turbine oil as well as particle contamination. High quality of oil cleanliness is achieved by the use of a series of coalescers, separators and high quality particulate filters. These systems are self-contained, skid mounted, and offer a P.L.C. controlled full status control panel for fully automatic operation. These systems come as either a dedicated stationary system or as a portable system for plant wide use with flow rates up to 100 GPM.

Model VPL-CSR: This series combines the principle of rapid free water and particulate contamination removal enjoyed by centrifuges and the polishing characteristics of our line of Vacuum Oil Purifiers to obtain maximum turbine oil system cleanliness. These systems are integrated into one self contained system and are provided with one full status control panel that allows for unattended and fully automatic operation.

Filtervac utilizes disc stack centrifuges to accomplish a fast and effective simultaneous three-phase separation of oil, water and sludge, regardless of the level of and the nature of the contaminants. In addition to the centrifuge the standard design includes an inlet gear pump, electric heater, polishing filter, control panel (Nema 12) and various safety interlocks to provide for a virtually automatic operation of the system.

Many industrial oil applications require 100% continuous filtration and call for Duplex Filtration. Filtervac offers several styles of duplexing.

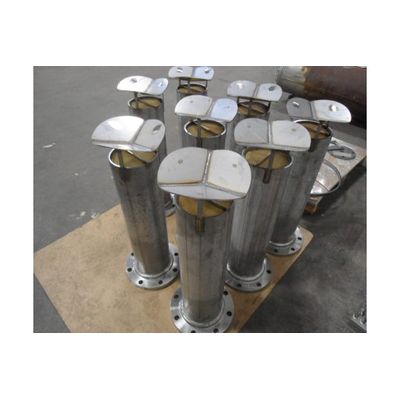

Filtervac offers A.S.M.E. Code designed housings for a variety of liquid filtration applications. A broad range of filtration vessels are offered, such as bag filters, basket strainers, filter separators and cartridge filters for a variety of flow rates. These carbon or stainless steel vessels are available in many design configurations and styles to suit your flow rates and application requirements.

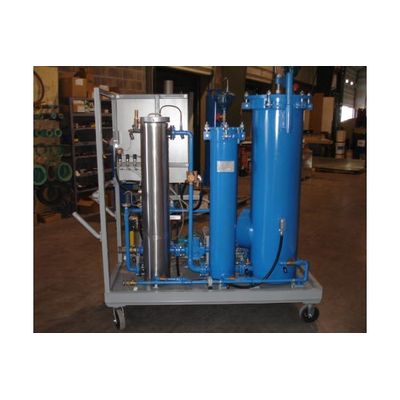

A Multi-Purpose Filter that meets the needs of any maintenance department & provides a cost effective solution to the above mentioned facts that are regularly faced by companies.FILTERVAC offers a variety of Portable Filter Carts that range in flow rates & levels of filtration.

The unique feature, which distinguishes the ECOIL System (OR-SRS) from other motor oil processing plants, is the ability to reactivate the used Fullers Earth. The ECOIL’s reactivation process is fully automated and enables the system to process oil again and again using the same clay. Clay need not be removed from the ECOIL System for a period of up to two years or 300 reactivations. When finally removed as dry neutral sand, it can be disposed of as non-hazardous substance and be used for building materials. Computer-controlled program allows for continuous oil regeneration in transformers without interrupting power transmission.

Meet the exacting standards of the latest Environmental code with a Canadian designed and manufactured Thermal Oxidation Waste gas flares by Canada’s leader in municipal gas flares.
