Filtration Consultants, LLC products

Diatomaceous earth, also called diatomite orkieselguhr, is a mineral of vegetable origin. It represents the accumulation of an enormous number of fossil diatoms. There are many deposits of diatomaceous earth in the world, but only some of them are both pure enough and large enough to serve as a source of raw material for the production of Diatomaceous earth filters and filter aids.

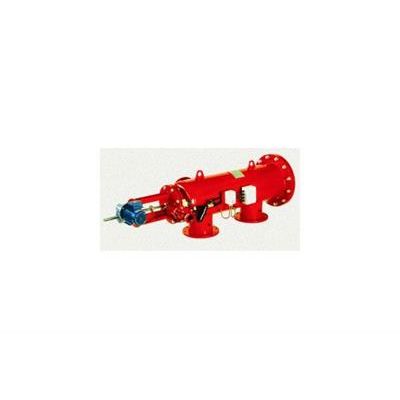

We sell Amiad filter equipment: Filtration Consultants LLC supports Amiad filters with sales, consulting, and equipment for Amiad filtration systems.

Zero Discharge – recirculate 99% back to plant. Fully automated – no operator. Complete turnkey systems – NO additional engineering needed. Continuous Operation. Backwashable. Filtration down to 0.5 micron level. Dewaters to 85% solids. 90%+ less water consumption / 80%+ less sludge volume to treat & dispose.

Rota Jet filters have universal applications. This type of filter has been further developed and perfected by LFC over many years. In order to obtain an optimally guaranteed dry cake cleaning, the V-sump type is equipped with scraping knives in combination with a conveyor screw. For the removal of wet or slurry cake, the single and double conical models are equipped with special sprayers, which in combination with rotating filter leaves ensure optimal cleaning. LFC Lochem has added an extra dimension to the universal applicability of these Rota jet filters by supplying the three different types as ‘standard’ with filtering surfaces of 3 to 200m’, depending on user requirements.

The RS and RB filters feature vertically positioned filter leaves in a horizontal cylindrical tank. With the RS version the connections are mounted on the fixed filter cover, so that they do not have to be disassembled when the tank is opened or retracted. With RB filters the entire filter pack is retracted, and the filtrate manifold, depending on the application, is equipped with a quick-acting closure. Both types of filter are available with filtering surfaces of 5 to more than 200m’, for both dry and wet cake removal. Depending on the application, the cover closure can be fitted with eye bolts and nuts, or with the special quick-acting bayonet/wedge lock closure developed by lFC.

The vertical MV filter is an extremely economical filter which has a cover closure with eye bolts and hand wheel nuts fitted as standard. A hydraulic davit is mounted for quick and easy cover opening. Depending on the application and on whether dry or wet cake is being removed, the filters are equipped with either a vibrator system or an oscillating sluice header. There is also a model which combines both systems. MV filters are available with filtering surfaces of 3 to approximately 1OOm’.

Because of its construction, the Tilting or model ‘T’ filter is pre-eminently suited to treating the filter cake after filtration by washing, drying or extraction. Filtration takes place with the filter tank in a vertical position and the filter leaves in a horizontal position. Cleaning or cake removal takes place with the filter tank in a horizontal position, while the leaves are in a vertical position. The filter is equipped with either a special recirculation system or “heel” filter elements, ensuring that no unfiltered liquids stay in the filter. Dry cake removal (scrapers or vibrator system) and wet cake removal (spray nozzles either static or oscillating) are both options.

The Pulse Tube filter is a filter type developed by LFC Lochem which has proved useful in many applications. As a single or polishing tube filter, it is especially suited to applications involving high filtration speeds combined with low solids concentrations, and where wet cake removal is possible. Process Pulse Tube filters, on the other hand, are used for both wet and dry cake removal.

As it s name suggests, this filter consists of a number of horizon tall filter elements mounted on a central shaft. Depending on the application, the filter material clamped between the filter elements may be paper, textile, fabric, needle felt or wire mesh. The filter is especially suitable for batch processes or as a safety filter with a small solids load. Cleaning is done manually by removing the plates from the shaft one by one and cleaning them or by changing/replacing the filter septum.
