Filtrec S.p.A. products

The New FILTREC Technology for filter elements, comes from three decades of experience within filter element construction. Steady, enthusiastic R&D activity, paying close attention to customers requirements & feedback. A tailored combination of materials have been custom designed for each filter element family, to perform at the highest possible level.

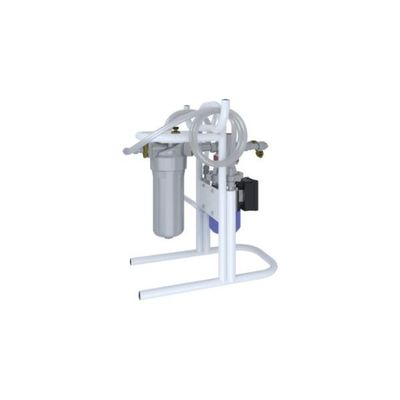

Support Frame and Filter Housing: Carbon steel, painted, filter housing by aluminium. Single Phase Electric Motor: 0,18 kW, 4 poles, 230V 50 Hz. Pump Protection: Y type filter, 500 µm. Overall Dimensions (LxPxH): 480 x 520 x 620 mm.

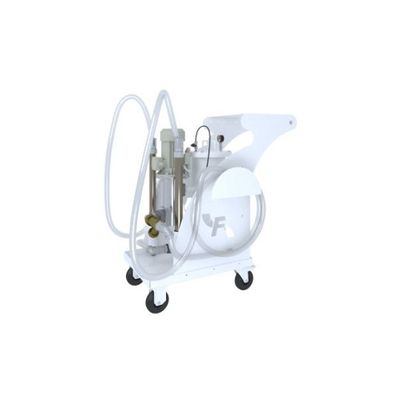

Support frame and filter housing: carbon steel, painted, mounted on 4 wheels (2 are lockable). Three phase electric motor: 1,1 kW, 4 poles, 230/440 V 50 Hz for FU1250, 3 kW, 2 or 4 poles, 230/440 V 50 Hz for FU2550. Pump protection: Y type filter, 500 μm.

Inline filters for operating pressure up to 70 bar, flow rate up to 400 l/min. Available with or without bypass, indicator port is a standard option to fit a visual or electrical differential indicator.

Inline filters for operating pressure up to 100 bar, flow rate up to 400 l/min. Available with or without bypass, indicator port is a standard option to fit a visual or electrical differential indicator.

Inline filters tor operating pressure up to 110 bar, flow rate up to 30 l/min. Available with or without bypass, indicator port is a standard option to fit a visual or electrical differential indicator.

Inline filters for operating pressure up to 160 bar, flow rate up to 400 l/min. Available with or without bypass, indicator port is a standard option to fit a visual or electrical differential indicator.

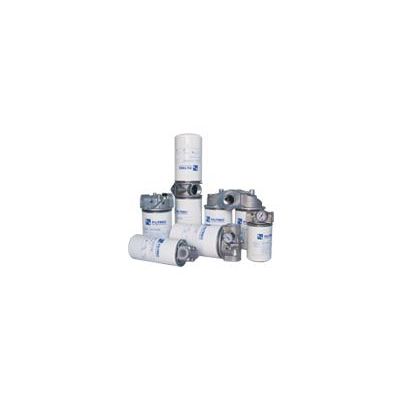

Inline filters with spin-on cartridge, suitable for use on suction, return or low pressure line. Available with or without bypass, indicator port is a standard option to fit a visual or electrical indicator.

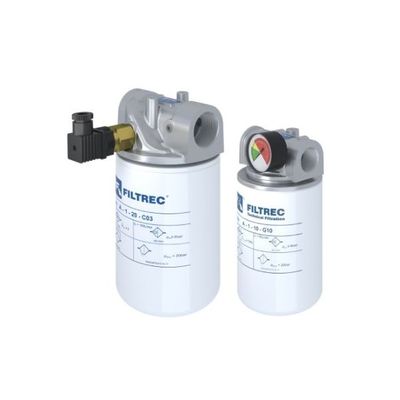

Return line filters with spin-on cartridge for operating pressure up to 12 bar, flow rate up to 300 l/min. Bypass valve inbuilt in the filter element, indicator port is a standard option to fit a visual or electrical indicator.

FS1 suction strainers are designed for direct mounting on the suction line, immersed in the oil tank, to protect the pump from coarse contamination.
