Filtrox AG products

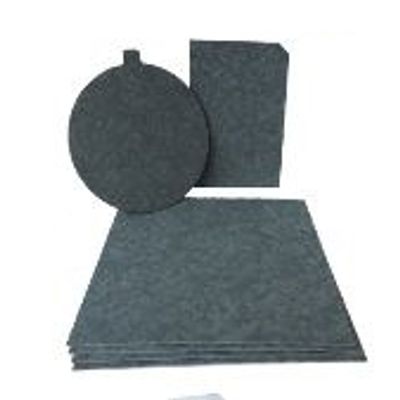

Standard depth filter sheets for the removal of particles from liquids to suit a wide range of applications. The pore size rating is from coarse to fine filtration, achieving a bright clear liquid.

This product range is specifically developed for frying oil filtration in the food service. Using SuperSorb filter pads the frying oil is cleaner after filtration and therefore lasts longer.

High quality depth filter sheets manufactured under controlled conditions. Widely used in the food and beverage industry as well as many other applications. The pore size rating is from coarse to sterile filtration, achieving microbiological reduction levels and thus producing sterile liquid (logarithmic retention of bacteria up to LRV >8). Premium food and beverage filtration, along with various other applications, rely on AF grades for superior performance. The XS grades for spirits filtration, manufactured from selected raw materials, offer low ions contents. SY grades, reinforced with synthetic fibers, deliver enhanced mechanical and chemical strength to excel in more demanding applications.

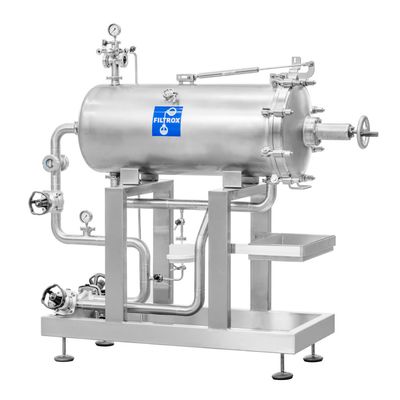

DISCSTAR® H is the newest generation of module housing. The precise horizontal stainless steel housing for 16″ filter modules, is developed and manufactured for everyday use. It is much safer to operate and easier to handle. This, due to an economic chest working height and easy loading and disposing of the modules. Available in version for Food & Beverage and for Pharmaceutical applications.

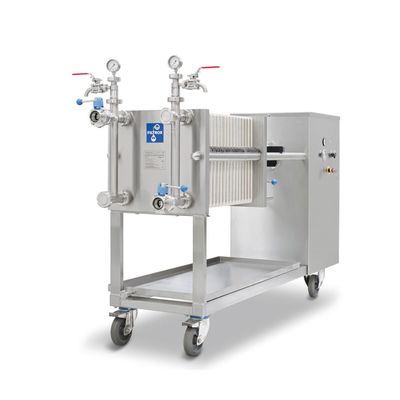

The NOVOX®-OD is a high precision stainless steel plate & frame filter, designed and built for hygienically critical, high-value applications. The unique design of the NOVOX®-OD allows efficient handling without the need for gaskets in the filter stack – inlet/outlet tubes are formed within the stack itself, sealed by the filter sheets. This feature makes the cleaning procedure much easier and eliminates the need for gasket removal or replacement. High precision construction of the plate & frame assembly and the hydraulic closing mechanism, combined with high-performance FILTROX filter sheets, make this system almost free of any drip-loss.

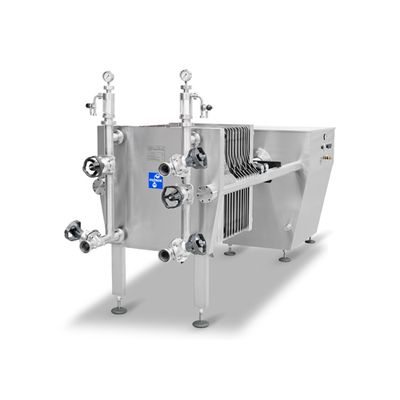

The NOVOX®-CP is a high precision plate & frame filter, designed and built for pharmaceutical and other critical applications. The filter plates are available in stainless steel or polypropylene (other materials on request). The NOVOX®-CP is an enclosed filtration system completely sealed for CIP without filter sheets. It eliminates any drip loss and prevents the liquid from having contact with the outside environment.

DISCSTAR® H is the newest generation of module housing. The precise horizontal stainless steel housing for 16″ filter modules, is developed and manufactured for everyday use. It is much safer to operate and easier to handle. This, due to an economic chest working height and easy loading and disposing of the modules. Available in version for Food & Beverage and for Pharmaceutical applications.

This filter module housing is designed with screw clamp closure system and standard piping. Ideal for Food & Beverage applications. Designed for heavy duty use and high-capacity depth filtration. Available for 12″ or 16″ filter modules. Full range from 1 to 4 modules.

DISCSTAR® LS has a tri-clamp connection. It has pharma-approved valves and pressure gauges. Therefore it is ideally suited for highly sensitive applications in healthcare and for pharmaceutical applications. It’s the system of choice for frequently changing filtration applications in the pharmaceutical industry. Available for 12″ and 16″ filter modules.

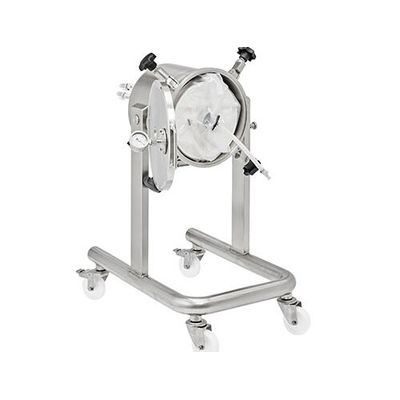

DISCSTAR® SU stainless steel housing. This system is designed to insert the PURADISC® SU single or double single-use filter modules. With a tiltable housing for loading and unloading the filter modules. The largest DISCSTAR® SU model for 16″ double modules offers a filter capacity of up to 1000L.
