Filtteck Co., Ltd. products

The Super-Micron depth filter cartridge is two-layers structure cartridge with fine fibers in inner layer and coarse fiber in outer layer in order to filtrate different diameter of dust in different layer. This design has high contaminant holding capacity. Therefore, the filter will have a longer service life and lower pressure drop.

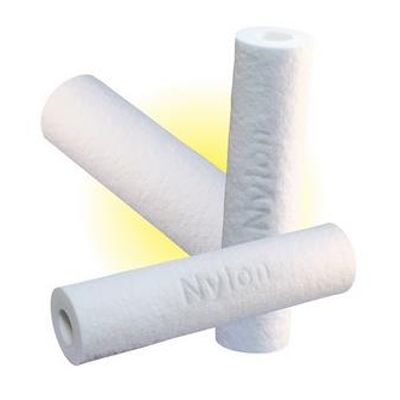

The Super-Nylon is the latest development in the highly successful melt-blown product range, an high removal rating nylon melt bonded cartridge for use in applications where chemical compatibility and/or high temperature rule out the use of polypropylene.

The Poly-Fluoro membrane pleated filter is made of poly tetrafluoroethylene (PTFE). PTFE are characterized by high chemical inertness. The Poly-Fluoro pleated filter cartridge are widely use for filtering the strong acid and base solutions that are used in wet etching, solvent striping, and cleaning manufacturing processes of semiconductor factory. The membrane has about 80~95% porosity, and the uniform pore size distribution. Moreover, the filtration area of each cartridge is as high as 0.9m² (0.67~0.8 m² for equivalent products of imported brands). Therefore, Poly-Fluoro PTFE membrane pleated cartridge filter has high flow rate, low pressure drop, and long-life service.

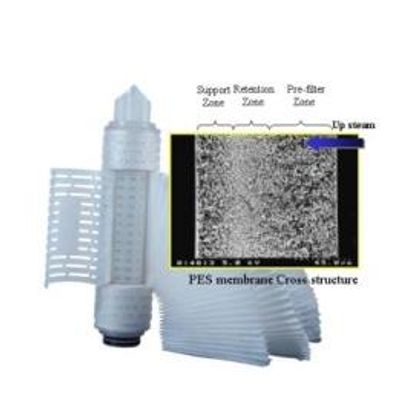

Poly-Philic pleated filter cartridge is a PES (polyethersulfone) membrane in a polypropylene casing. The filter media polyethersulfone is the mirrored asymmetric structure that ensure lower pressure drop at high flow rate, and extended service life.

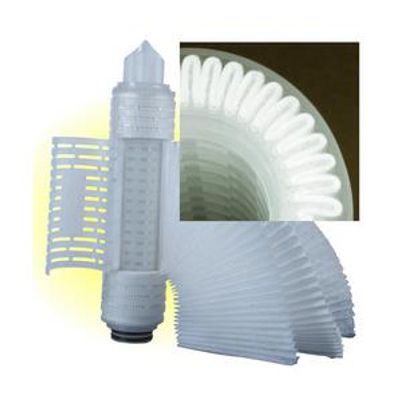

Constructed of melt-blown polypropylene fiber media, Poly-Ray pleated filter combine exceptional solids holding capacities with precise micron ratings than depth filters. The double sheets of melt-blown media are layered to provide absolute particle retention, high solid loading and long service life. Poly-Ray filter are also designed for membrane`s pre-filtration.

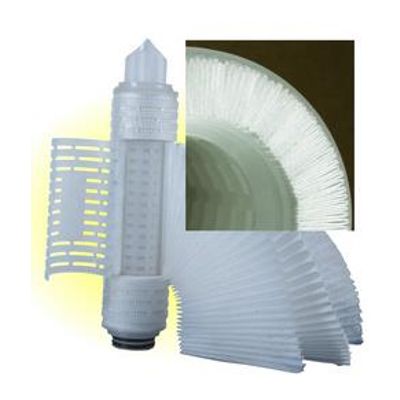

The Poly-Viscosity pleated filter is made of polypropylene fiber media and provide stable filtration of high viscous liquid and high solid contects under low differential pressure without the media deformation. No binders aer used in the meaufacturing process, which provides low extractables and wide chemical compatibility.

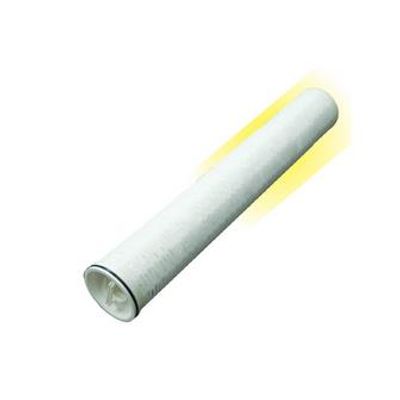

Poly-Flow Filter Cartridge puts great amount of Polypropylene into a cartridge. The structure creates a lot of advantages. The radial plates contain huge surface area. Therefore, it insures high loading capacity for long service life and high flow rate. With fewer change-outs, it lowers the cost of filtration and disposal. Besides, the fewer seals reduce the risk of bypass and insure a higher quality filtration.

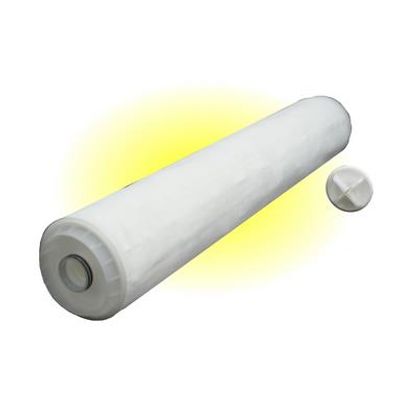

Multi-Flow filter is a large diameter, single opened ended horizontal pleated cartridge with an inside to outside flow pattern. The high flow filter which insures high loading capacity for long life, lower cost filtration and stability to flow rate. The filter is available from 20” to 80” that with one piece media, with fewer seals which reduced the risk of bypass and insure a higher quality filtration.

The GAC filter cartridge is filled with coconut shell granular actived carbon, GAC cartridge is mainly used in the reduction of odour and taste substances from drinking water. The GAC is also well suited for chemical adsorption, including VOCs.

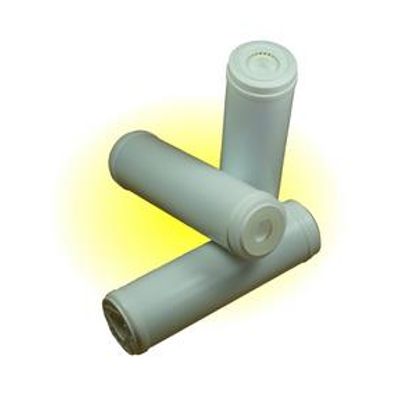

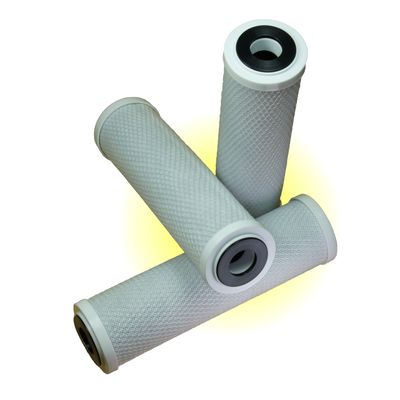

The carbon block cartridges contain coconut shell bused, nut shell based or coal based activated carbon which creates what many believed to be sweeter tasting water. Because of the unique pore structure of this carbon, it is well suited for chemical adsorption, including VOCs, while reducing chlorine and chemicals that contribute to taste and odor.
