Finder Pompe S.r.l. products

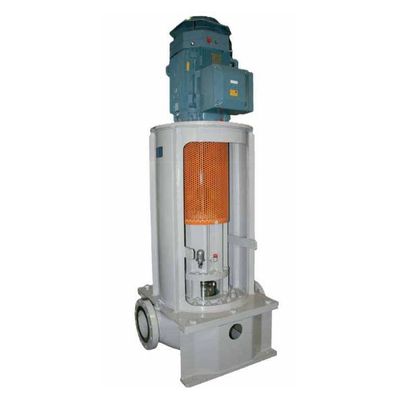

FG, PAG, TKV,HPVT,CKV and CKNV are vertically-suspended, single or multistage centrifugal pumps (VS1 or VS6 configuration), designed and built in full accordance with API 610 standards. The integrally cast diffuser type bowls assure optimum hydraulic efficiency and minimum radial
thrust.

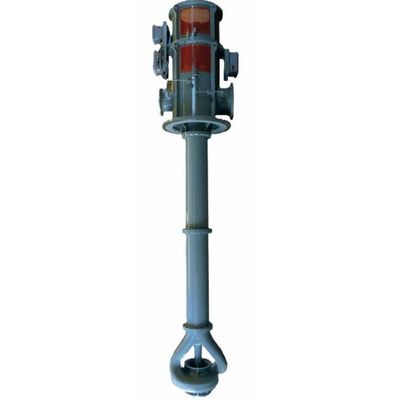

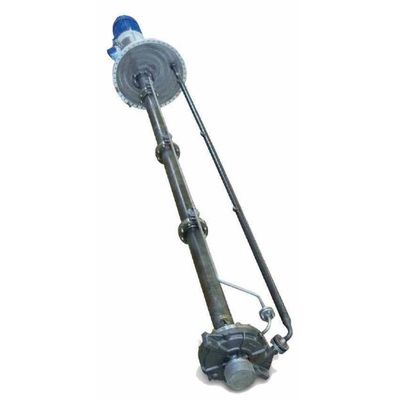

NDV, HPV and V-PEP are API 610 compliant, vertically suspended, single-casing volute, line shaft driven VS4 type centrifugal sump pumps. NDV, HPV and V-PEP pumps are engineered to customer specifications, application and requirements. Any pump length from 0,5 down to 10 m below the mounting plate can be achieved.

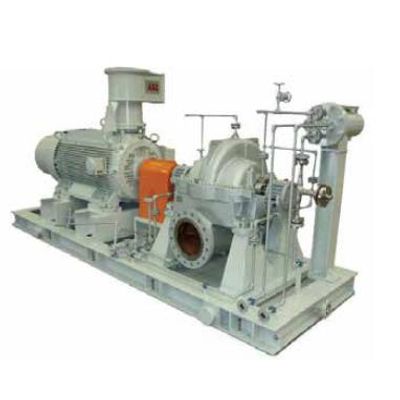

C2P0 heavy-duty process pumps are horizontal, between bearings, with axially split casing, double suction, one stage impeller (BB1 configuration), in full compliance with API 610 std., latest edition (IS013709).

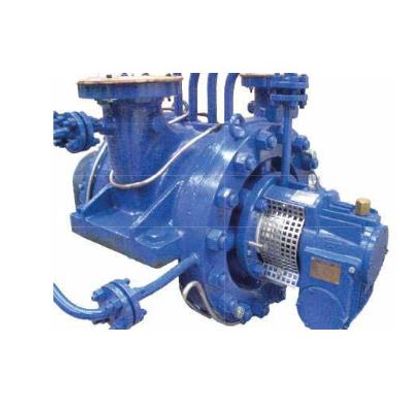

Single and two stage between bearings process pumps, BB2 configuration, designed and manufactured according to API 610, latest edition. Their compact configuration and generously sized components make these pumps suitable for the most critical applications. To minimize shaft and bearing loads, the axial thrust is intrinsically balanced. KSMKM and HPD series are a double sucton design, while the HPE line can be configured in either a single or double suction version.

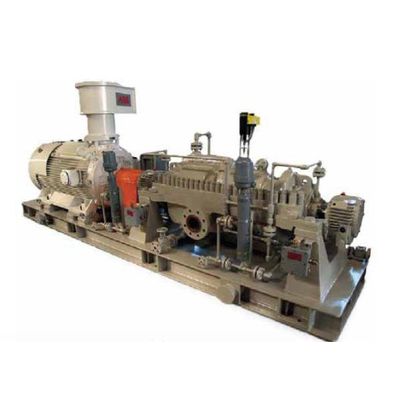

The HPM process pumps are multistage, axially split, volute type pumps with single or double suction first stage impeller that meet all requirements of the latest edition of API 610 standards.

The HPMB line barrel pumps is multi-stage and suitable for heavy-duty applications such as oil and gas, refining and petrochemical, power plant boiler feedwater, water injection and reverse osmosis- The HPMB pump was designed and manufactured according to API 610, latest edition.

Finder can supply seal-less pumps in 0H1,0H2 and VS4 configurations. SMKM-M, HPPMD and PEPMD pumps (0H2) and HPVMD (VS4) pumps are designed and manufactured in full accordance with the API 685 (seal-less centrifugal pumps for petroleum, heavy duty chemical and gas industry, latest edition) standards. Hydraulics are directly derived from the API 610 series (SMKM, HPP and HPV) while magnetic couplings, containment devices and inner bearings have been designed to comply with the most stringent requirements of the guiding norms.

SMKM and HPP series meets API 610 standards, latest edition (ISO 13709). The pumps casings are radially split, single or double volute. Stuffing boxes are designed to accomodate single or dual mechanical seals, according to the API 682 standard. Special designs, such as jacketed casings, reinforced bearings, etc., are available to meet specific process requirements. All material combinations listed in the API 610 material tables, plus erosion/corrosion resistant alloys, are available.

The PEP pump range has been specifically designed to meet low flow, high head and low NPSHr API 610 requirements without requiring increased speed solutions.

LHVN and L-PEP process pumps are single-stage, vertical in-line over-hung type (0H3 conf iauration) and fullv comply with API 610 std. (ISO 13709), latest edition.
