Our FIREMIKS equipped with Piston pumps (-PP) are particularly suited for use in systems with low start flows, for example sprinkler systems. Piston pumps are also very suited for low and medium viscosity concentrates. The unit shall be placed in such a manner that the concentrate has a free flow down from the foam tank to the dosing pump.

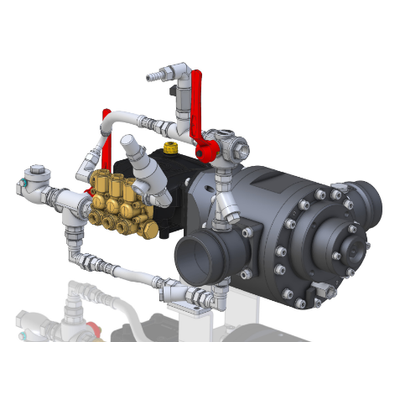

1% dosing system for firefighting - for fixed installations connected to a concentrate tank with gravity feed to the dosing piston/plunger pump. Extinguishing water drives the volumetric water motor, which in its turn drives the positive displacement concentrate piston/ plunger pump that doses the correct amount of foam concentrate in the extinguishing water

1% dosing system for firefighting - for fixed installations connected to a concentrate tank with gravity feed to the dosing piston/plunger pump. Extinguishing water drives the volumetric water motor, which in its turn drives the positive displacement concentrate piston/ plunger pump that doses the correct amount of foam concentrate in the extinguishing water

1% dosing system for firefighting - for fixed installations connected to a concentrate tank with gravity feed to the dosing piston/plunger pump. Extinguishing water drives the volumetric water motor, which in its turn drives the positive displacement concentrate piston/ plunger pump that doses the correct amount of foam concentrate in the extinguishing water

1% dosing system for firefighting - for fixed installations connected to a concentrate tank with gravity feed to the dosing piston/plunger pump. Extinguishing water drives the volumetric water motor, which in its turn drives the positive displacement concentrate piston/ plunger pump that doses the correct amount of foam concentrate in the extinguishing water exiting the water motor Equipped with a Manual air relief valve. Flushing of dosing pump is done automatically when the concentrate inlet is closed with Selector valve Dosing/ Flushing, (no 4 on Flow chart). Supplied with Flap check valve for concentrate inlet and Wrench to rotate the unit by hand at maintenance.

1% dosing system for firefighting - for fixed installations connected to a concentrate tank with gravity feed to the dosing piston/plunger pump. Extinguishing water drives the volumetric water motor, which in its turn drives the positive displacement concentrate piston/ plunger pump that doses the correct amount of foam concentrate in the extinguishing water

1% dosing system for firefighting - for fixed installations connected to a concentrate tank with gravity feed to the dosing piston/plunger pump. Extinguishing water drives the volumetric water motor, which in its turn drives the positive displacement concentrate piston/ plunger pump that doses the correct amount of foam concentrate in the extinguishing water

1% dosing system for firefighting - for fixed installations connected to a concentrate tank with gravity feed to the dosing piston/plunger pump. Extinguishing water drives the volumetric water motor, which in its turn drives the positive displacement concentrate piston/ plunger pump that doses the correct amount of foam concentrate in the extinguishing water,

A sturdy pump with minimum maintenance. Our FIREMIKS provided with a Gear pump (-GP) is particularly suited for working in the higher end of a systems maximum flow rate, such as deluge installations and full flow monitors. Gear pumps are also very suited for high and very high (up to at least 8000 cP) viscosity concentrates, incl Fluor-free foams.

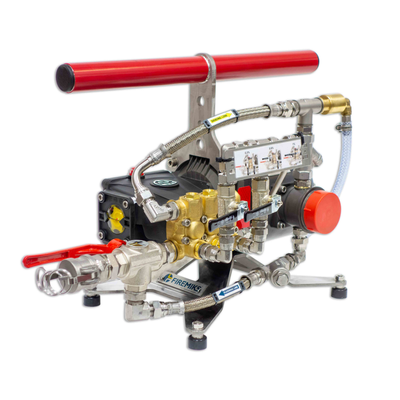

FIREMIKS Mobile units can be supplied with either Gear pump (-GP) or Piston pump (-PP). The main difference between these two types, apart from suitability for different viscosities, is that on Piston pump models we can offer three different dosing rates, 1-2-3%, 0,5%-1-3% or 0,3-0,6-1% with just one foam pump. The Mobile units are complete with suction tube and automatic air relief valve to speed up priming. They are equipped with a bottom bracket and carrying handle, or a surrounding cage frame, making them easy to handle. For larger sizes we equip the units with wheels to make them easy movable.
