Firewood LLC products

Firewood - Hammer mill wood

The hammer crusher is widely used in briquetting and granulation lines, lines for the production of compound feed, it allows to obtain a homogeneous fraction of raw materials suitable for briquetting or granulation. Everything that remains after this block is sent to a special press, which produces the final products. Specifications: Type: stationary. Drive: 55 kW; 3000 rpm. (depending on the type of raw material, execution with electric motors of 18.5-55 kW is possible). Disc: with 60 hammers; The speed of rotation of the rotor is 3000 rpm. Overall dimensions: length 1780 mm; height 1,043 mm; width 1028 mm. Productivity: from 1.5 t/h, (with raw material moisture up to 15%). Raw materials: sawdust, shavings, cod, waste agricultural crops (up to 15 mm). Installed power: 55 kW. Used power: 36 kW

Firewood - Drying complex based on drum drying

This type of complex is designed for drying wood waste (sawdust, shavings, wood chips) and agricultural crops. The process occurs in a drum, where the raw material loses moisture. After drying, it can be used for further processing or production. The system operates automatically and is controlled via a control panel. If you need more information, feel free to ask!

Equipment - Accumulating Equipment

Firewood - Dry Matter Hopper

The cylindrical hopper with the agitator is intended for temporary storage of dry raw materials and its giving by the screw conveyor further for processing. Can be completed with one or two conveyors.

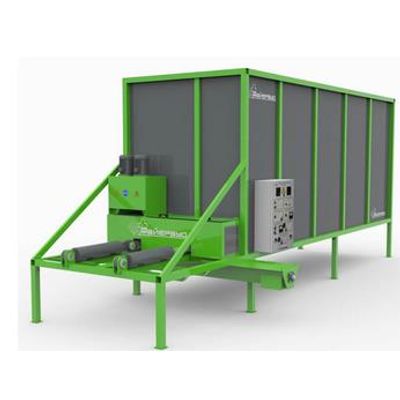

Firewood - Wet Raw Material Storage Hopper with Living Bottom System

It is intended for reception of raw materials, its accumulation and dosed giving. Raw materials are loaded into the hopper manually or by mechanical devices (conveyor, cyclone, loader). Unloading is due to mechanisms (rakes) that move back and forth alternately (depending on the setting). Raw materials from the hopper are fed in portions to the auger conveyor and unloaded through a window in the conveyor chute.

Equipment - Conveyors

Firewood - Screw Conveyor

Screw conveyors are used for transportation in horizontal, vertical or inclined directions of bulk, small pieces, dusty, powder materials.

Firewood - Scraper Conveyor

Scraper conveyors are used for transportation in horizontal or inclined directions of low-abrasive bulk cargo. The design of the conveyor consists of the following main parts: drive station, tension station, intermediate boxes, as well as a chain with scrapers. The load is moved in the scraper conveyor thanks to the scrapers, which are fixed on the traction chains and immersed in the bulk cargo. The chain with scrapers is located in the box, and the conveyor is loaded at the end of the conveyor.
