Fisnar products

The F6000N ADVANCE gantry robotic systems can be easily integrated with in-line industrial automation. Gantry industrial robots have all their axes above the work area making them ideal for large dispensing applications.

The F8000 series of robots are servo motor-driven, ball screw design, gantry robots. A heavy duty aluminum structure prevents flexing and vibration while maintaining functionality. Ideal for conveyorfed applications. Where applications require all moving axes to be above the workstation, the F8000 series provides the capability.

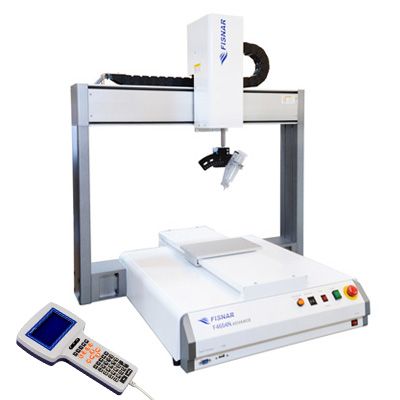

The F4000 ADVANCE 3-axis benchtop robots are designed to ensure precise fluid placement and positioning. When configured with a syringe, cartridge, or valve system, a high level of accuracy and repeatability is achieved. Specifically built for fluid dispensing processes, the F4000 ADVANCE proprietary robot software is user friendly and enables the creation of complex dispensing routines (dots, lines, circles, arcs, and fills) that can be set up and operational in just minutes using the teach pendant (included).

The F4000 ADVANCE series 4-axis benchtop robots are designed to ensure precise fluid placement and positioning.

The DB815-SB foot dispenser is a basic air powered dispensing system. Floor stationed and foot actuated, fluid will be dispensed only when the foot pedal is pressed. A three-way air valve is included along with a built-in air regulator. The suck-back control ensures that low viscosity liquids do not drip. Suitable for dispensing all types of fluids.

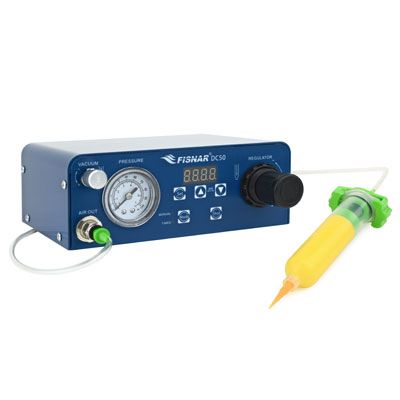

A general purpose, easy to use digital dispenser with a bright 4-digit LED display. The simple user-friendly programming enables a dispense cycle to be quickly created and automatically displayed. This low-cost system offers high reliability, repeatable dispensing, and adjustable vacuum suckback control to prevent fluid dripping from dispense tip. It is suitable for both low and high viscosity fluids.

The 580112C Caulking Hand Dispenser is lightweight and comfortable dispensing gun for caulk and sealant fluids dispensing directly from standard caulking cartridges without mess or waste.

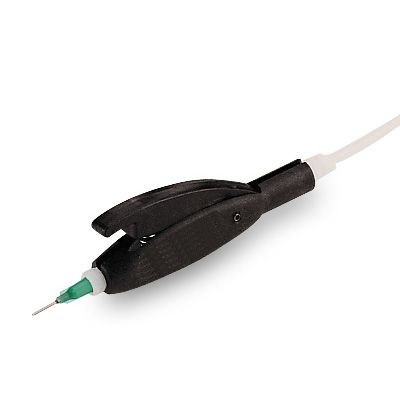

The 700PTPCW Pinch Tube Pens are ideal applicators for manually dispensing continuous beads or applying microdots of low viscosity liquids such as solvents and cyanoacrylates. The disposable pinch tube is the only part of the pen that is in contact with the material and discarded when contaminated. The pinch tube pen can be connected via a wide range of interchangeable fittings to gravity fed or pressurized reservoirs.

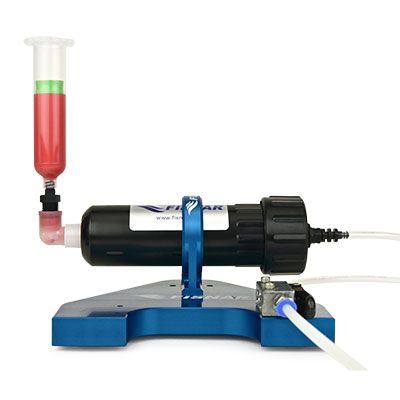

The 560548U Series of manual barrel loaders will fill a barrel directly from a 6 oz, 12 oz, 20 oz, or 300 ml cartridge. Barrel loaders are an efficient method of transferring greases, epoxies, silicones, solder pastes, and other thixotropic materials into a disposable barrel. The barrel loaders can be used for timed filling when connected to a Fisnar automatic controller. Syringe barrel and piston sold separately.

The EP1310C 1/10 Gallon Single Cartridge Pump System is a powerful, medium-ratio system for controlled fluid transfer from 1/10th gallon (310 ml) plastic cartridges. Suitable for silicone-type fluids, this low-pulse pump design can be used with a dispense valve or connected to an automatic production robot for controlled dispensing applications. The EP1310C is designed to easily transfer material for controlled dispensing via a high pressure valve, providing a maximum of 995 psi regulated material pressure. The cartridge is contained with a metal-jacketed cylinder.
