Flex7 Ltd products

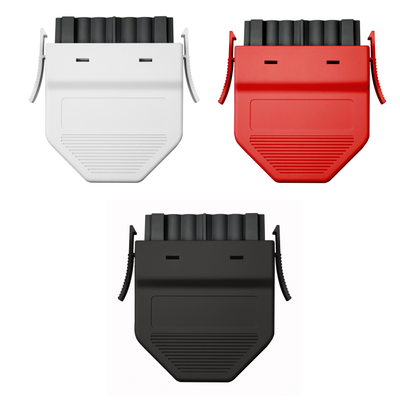

Available in white, red, black, or grey flex7 plugs are robust and simple to use. In-line terminals, and a pair of screws which both secure the cover and clamp the flexible cable make it quick and easy to wire on site.

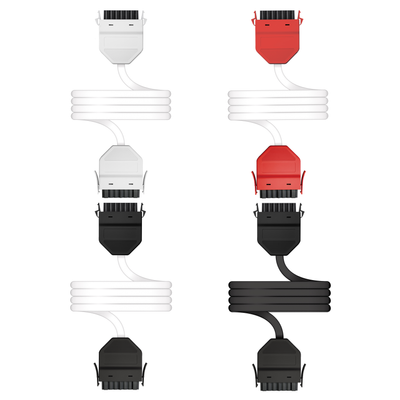

We offer an extensive range of luminaire leads which minimise installation time. All variants are available in Low Smoke Halogen Free (LSHF) Cable, in accordance with BS EN 50525-3-11 and CPR rated to category Cca, so you can be assured that they'll meet required safety standards for public and commercial buildings. All luminaire leads in the range are 100% tested, and come with ferruled conductors at free end. Compatible with all Lighting Distribution Boxes Non-associative colours, and other cable lengths may be available to special order. Please phone us on 020 8580 1066 for part numbers or advice.

PIR Sensor Heads need to be used in conjunction with a Control Module. A Sensor Lead is needed to connect the Sensor Head to a Control Module. The PIR (Passive infrared) sensor detects moving bodies of hear that are different (warmer or cooler) to the background temperature. The detection pattern is broadly rectangular at 9m x 7m when fixes at a ceiling height of 2.5m (longest length of detection aligns with the spring fixing clips).

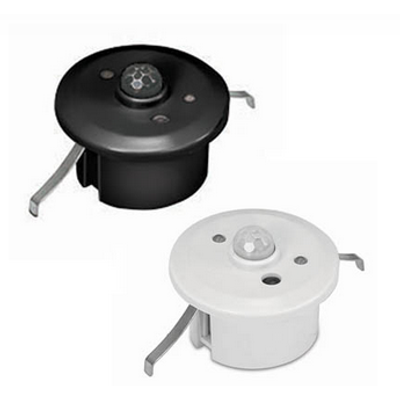

Using the 2 x M4 screws supplied, fix directly to a standard BESA box with 50.8mm fixing centres in surface mount installations. Alternatively, replace the M4 screws supplied with security type fixings and use in installations where resilience to unsolicited attempts to remove or tamper is paramount; public areas, prisons, secure units etc. Our range of Surface Mount / Tamper-Resistant Heads are available with absence, occupancy and daylight dependency/linking. A Tamper-Resistant version of our Auxiliary Head can be used to extend the area of detection by 6-fold. All options are available in black or white to match their surroundings.

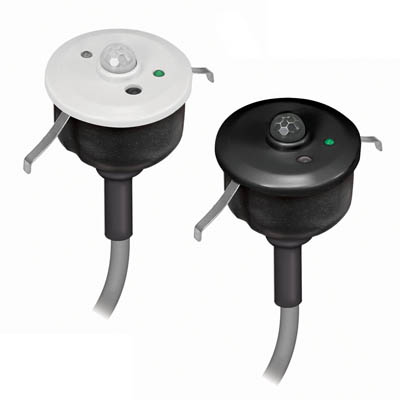

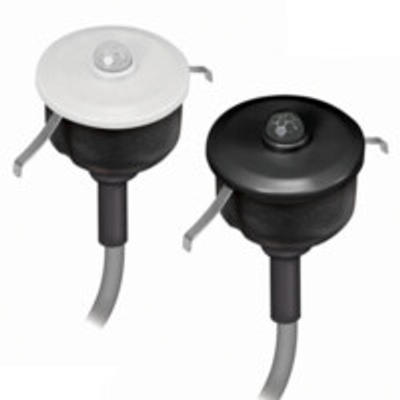

Use in external installations where protection from moisture is needed. Flush mount through a 34mm dia. hole into the ceiling, bulkhead, canopy etc. Sensor head comes prewired with 5m lead. Note: Control Module is IP2X and must be installed in a suitable location.

Use to increase the area of detection. Up to 5 Auxiliary Heads can be used in conjunction with 1 ‘Primary Head’, effectively increasing detection range by 6-fold. Ideal for use in corridors or large/irregular shaped rooms.

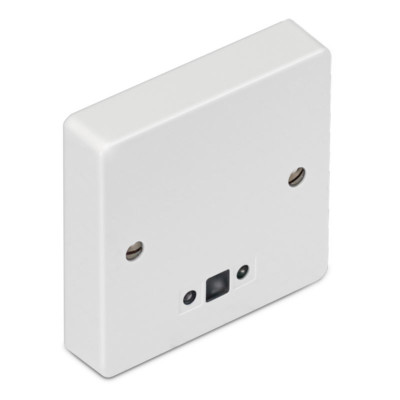

The Microwave Sensor emits low powered signals which are reflected back off walls and other objects. A change of condition eg. someone entering the room changes the reflected signal, and the sensor detects this as presence. flex7 Microwave Sensors are available as a wall-mounted or ceiling-mounted option.
