Flint & Walling products

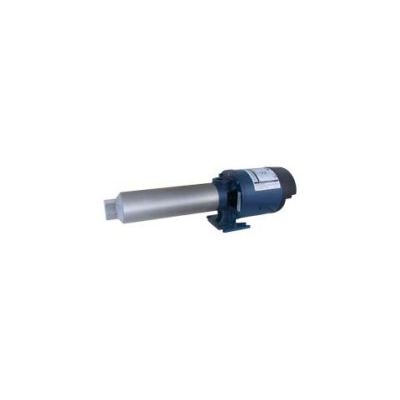

Our Stainless Steel Commander S Series exemplifies our dedication to top-tier water system performance. Featuring a stainless steel pump shell, hex drive shaft, coupling, and screen, our pump is engineered for durability. The NEMA standard motor mounting ring ensures easy installation and reliability in every application. Available in motor sizes ranging from ½ to 2 HP, with Flint & Walling motors for 1 PH pumps, and compatible with NEMA standard stainless steel motor brackets.

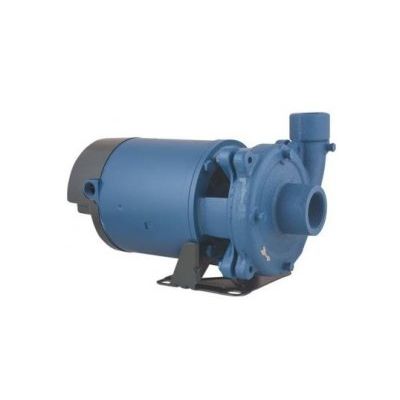

Two or three stage pumps for suction lifts up to 25` (8 m). Non self-priming. Capacities to 3,400 GPH (12,870 LPH). Pressures to 90 PSI (620.5 kPa). Multi-stage for high head. Suction lift to 25` (8 m). Low-lead brass or thermoplastic impellers.

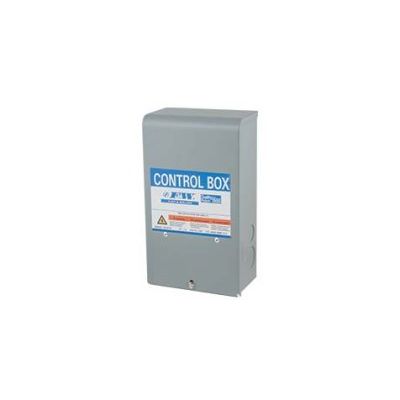

Flint & Walling ½ through 2 HP submersible control boxes feature: Universal voltage relay. Designed for outdoor installations. Heavy-duty terminal block for secure connections. Side and bottom knockouts for easy wire installation. Interchangeable with industry control boxes.

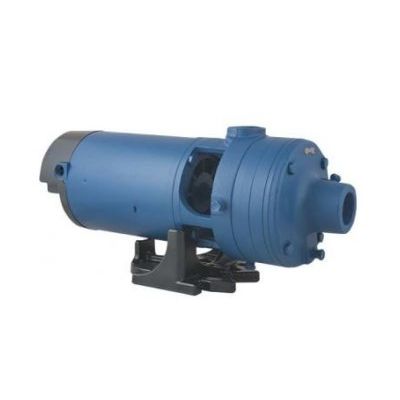

Single stage pumps for suction lifts up to 25` (8 m). Non self-priming. Suction lifts up to 25` (8 m). Low-lead brass or thermoplastic impellers. Capacities to 6,600 GPH (24,984 LPH). Pressures to 45 PSI. Discharge can be rotated for horizontal or vertical positioning.

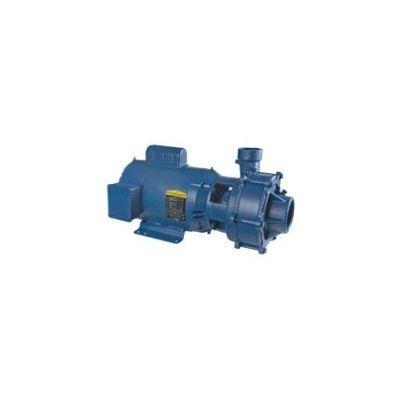

Rugged pumps built for extra performance. Nationally known NEMA JM motors. Nationwide service available from authorized service stations. Brass impellers are electronically balanced. Capacities up to 8,580 GPH (32,479 LPH). Pressures to 85 PSI. 3` (7.6 cm) suction.

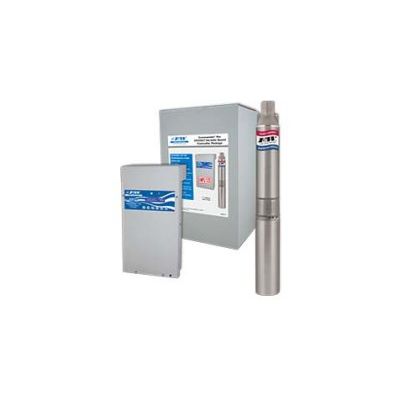

Easy-to-read diagnostic display. Increases flow as demand increases. Adjustable constant pressure. Available with pressure switch or pressure transducer. Automatic pump and motor protection. Superior cooling and dust protection. Meets Part 15 Class A FCC electronic interference standards. Programming lockout for secure operation. Tamper-proof cover. Automatic fan designed to maximize cooling. NEMA 3R for indoor/outdoor use

Easy-to-read diagnostic display. Increases flow as demand increases. Adjustable constant pressure. Automatic pump and motor protection. Superior cooling and dust protection. Meets Part 15 Class A FCC electronic interference standards. Programming lockout for secure operation. Tamper-proof cover. Automatic fan designed to maximize cooling. NEMA 3R for indoor/outdoor use.

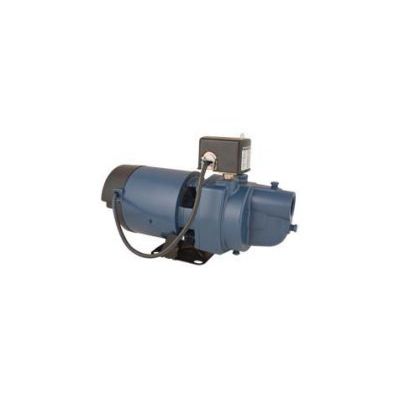

Designed for shallow wells with suction lifts from 0` to 25` (0 - 8 m). These pumps provide capacities up to 1200 GPH (4,542 LPH) and pressures up to 50 PSI. EK models feature the famous Flint and Walling “Service Plus” motor, available with Uni-frame flange construction. The F&W 56 frame, double ball bearing motor offers the ultimate in performance and dependability. Designed for years of trouble-free operation and simple, swift, on-site servicing, EK models feature unique interchangeability of replacement parts to keep inventories at a minimum.

 Designed to increase water pressure from city mains or private water systems. Powder coated cast iron and stainless steel.
