The visual level gauges TL series allow the liquid level to be checked in a clear and precise way at any time. Visual levels Top Level series M10 or M12 Connections c/c distance 76 - 127 - 254 mm.

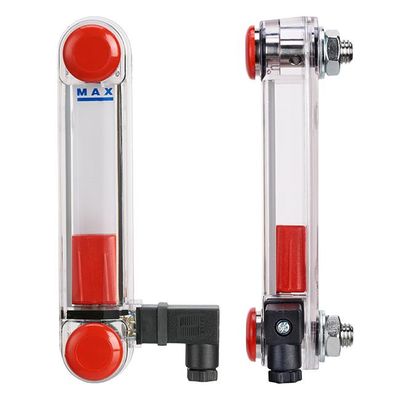

The visual level gauges TL series allow the liquid level to be checked in a clear and precise way at any time. Visual/electrical levels Top Level series, M10 or M12 Connections, c/c distance 76 - 127 - 254 mm, Possibility of thermostats/PT100.

The visual level gauges allow the liquid level to be checked in a clear and precise way at any time. The principle used is that of communicating vessels: the liquid goes through the level gauge by means of hollow screws, showing the user the exact point inside the tank. Through a full range of components our level gauges can meet the most particular needs, at a limited cost. Visual levels MULTICONTROL series, c/c distance 127 to 4000 mm, M10 or M12 Connections.

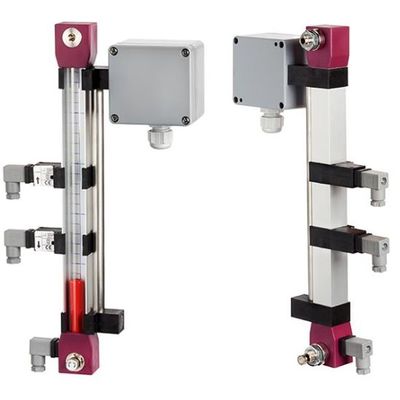

The LVC series gauges allow control at all times the liquid steadily, clearly and precisely. Visual levels with a continuous output Ohm / 4-20mA, c/c distance 200 to 3000mm, Possibility of variable position signals, Possibility of PT100.

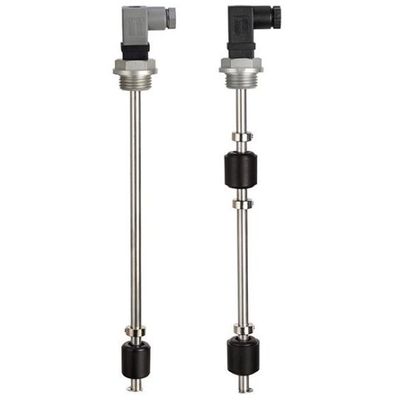

Use: Made to ensure, with maximum safety, the minimum or minimum and maximum levels of liquids in tanks, and hydraulic power packs containing mineral oils with viscosity not higher than 80°E. and for all non-corrosive and inflammable liquids. Electromagnetic level indicators to one or two contacts, 1/2" Bsp threaded Connection, SPST or SPDT Contacts.

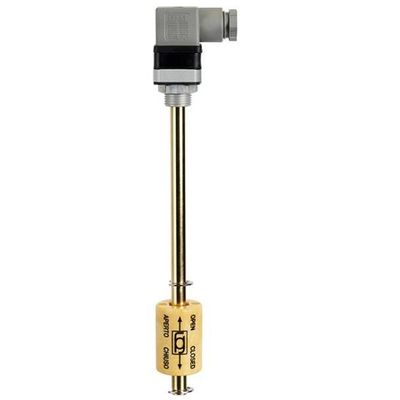

Use: Made to ensure, with maximum safety, the minimum or and empty levels of liquids in tanks, and hydraulic power packs containing mineral oils with viscosity not higher than 80°E. and for all non-corrosive and inflammable liquids. Electromagnetic level indicators at a control point M18x1, 5 connection, SPST or SPDT Contact.

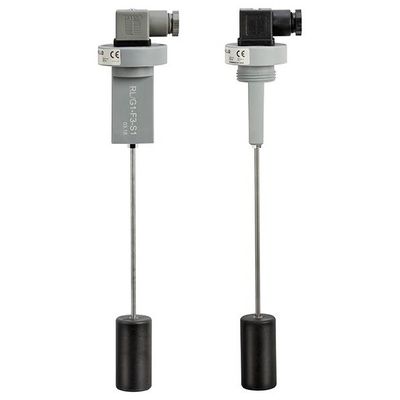

These electromagnetic level gauges in Kits can be obtained in the required length “L” simply by cutting the control rod with an ordinary pipe cutter and press fitting the float in the cutting place (see table for cutting). The control rod can commutate the signal of 1 or 2 Reeds in sequence (with single or exchange contact). The float does not hold magnets, therefore the Level can also be used in the presence of dirty liquids or ferrous particles.

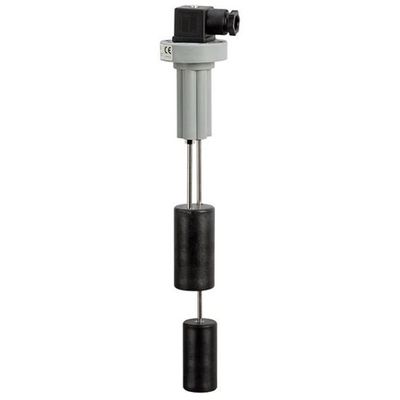

The RL/G2 range has a head which holds two control rods and two floats. Each control rod can commutate the signal of 1 or 2 Reeds (with  single or exchange contact). Each head can therefore contain from 2 to 4 Reeds. The most suitable system can chosen for each rod. In case of excessively dense liquids the two floats can be supplied entirely  separate from each other to prevent rod 1 from undergoing friction with the float of rod 2. The minimum distance between the two points to be controlled is 90mm.

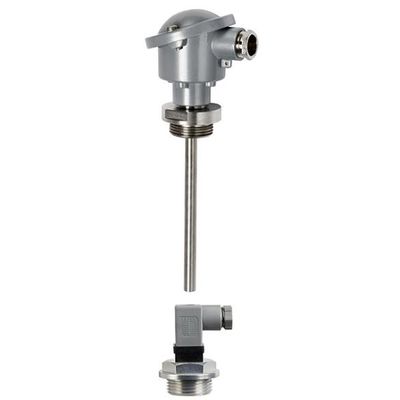

Occupies the space provided for every common drain plug for tanks Control units Oil sumps Etc. The temperature probe occupies the space provided for every common drain plug for tanks, control units, oil sumps, etc. With N.O. contacts. it is used to send an electrical signal when the temperature of the liquid exceeds a limit deemed acceptable. The N.C. thermostats are normally used as thermoprotectors: they disconnect the voltage, stopping the system, when the temperature is too high. The standard range provides for thermostats at 50° - 60° - 70° - 80°C. With N.O. contacts normally open or N.C. contacts normally closed.

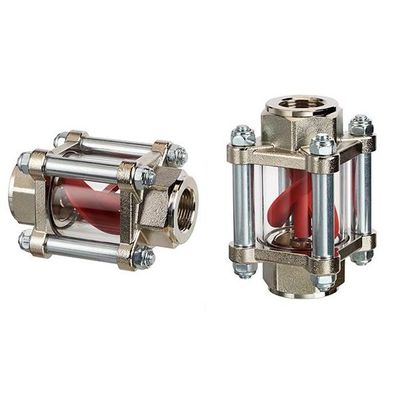

Designed to control the circulation of liquids, they are suitable for the flow of water, oils, petrol, gas oil and all other liquids except corrosive liquids.
