F.lli Tognella S.p.A. products

Double-acting flow control valves available only in 1/8" size BSPP. Max. working pressure 210 Bar, adjustable oil flow rate from 0,05 to 2,5 Lt./min. Double-acting control. In line or panel mounting microfine flow control. Brass OT58 - UNI5705 Nickel Plated. Connections: F - F Female – Female.

Single-acting flow control valves available only in 1/8" size BSPP. Max. working pressure 210 Bar, adjustable oil flow rate from 0,05 to 2,5 lt./min. Single-acting control. In line or panel mounting microfine flow control. Brass OT58 - UNI5705 Nickel Plated. Connections: F - F Female – Female.

Double-acting flow control valves available only in 1/8" size. Max. working pressure 210 Bar, adjustable oil flow rate from 0,05 to 2,5 Lt./min - METRIC THREADS. Double-acting control. Microfine regulation. METRIC threads. Brass OT58 - UNI5705 Nickel Plated.

Double-acting flow contrl valves available from 1/4" to 3/4" size - METRIC THREADS. Max. working pressure 300 Bar, adjustable oil flow rate from 0,2 to 80 Lt./min. (depending on the size). Double-acting control. No pressure compensated flow control. METRIC threads. Stainless Steel AISI 316.

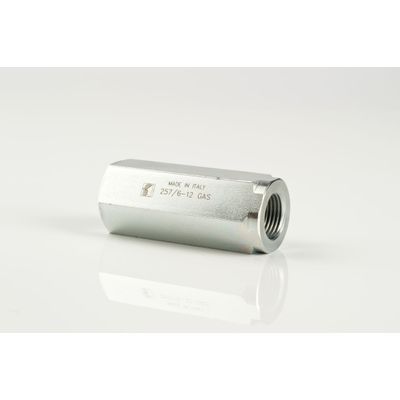

In line check valves available from 1/8" to 2" bsp. Max. working pressure 400/320 Bar, oil flow rate up to 850 Lt./min ( depending on the size ). On request NPT THREADS can be supplied. In line. Direct control. Carbon steel.

In line check valves available from 1/8" to 1" bsp, Max.working pressure 400/320 Bar, oil flow rate up to 160 Lt./min. (depending on the size). In line. Direct control. Carbon steel.

Plate flow control valves available in sizes from 1/8" to 1/2" and Cetop 3 (03) and 06, max. working pressure 250 Bar, adjustable oil flow rate from 0,2 to 80 Lt./min. (depending on the size). Plate mounted valves. Double-acting control. Carbon steel.

Plate flow control valves available in sizes from 1/4" to 1/2" and Cetop 3 (03) and 06. Max. working pressure 250 Bar, adjustable oil flow rate from 2 to 80 Lt./min. (depending on the size). Plate mounted valves. Single-acting control. Carbon steel.

Double-acting flow control stackable valves Cetop3 available with controlled flow on A-B-P or double A+B ports, max. working pressure 320 Bar, adjustable oil flow rate from 0,5 to 35 Lt./min. Cetop 3 valves - NG6. Flow control. Double-acting control. Carbon steel.

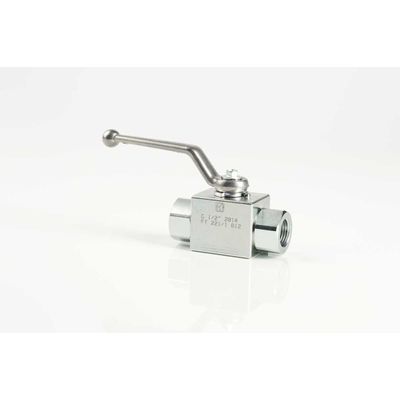

Two-way ball valves for high pressure up to 500 Bar ( depending on the size ) available in sizes from 1/4" to 2". High pressure ball valves. Two-way. Carbon steel.
