Flomag s.r.o products

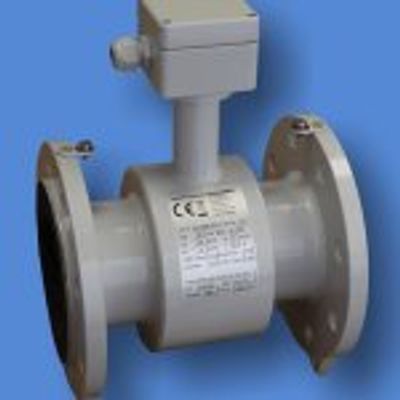

Sensor of the electromagnetic flowmeter FLOMAG as flanged version. This version is the most used for general purposes. It is manufactured in dimensions from DN15 up to DN1200 for pressure rates from PN6 up to PN40. Lining is manufactured from soft rubber (MG), hard rubber (TG), special hard rubber (NG), PTFE (T). Measuring electrodes are manufactured from stainless steel (Ss) AISI 316 Ti, Hastelloy C276 (Ha), Titanium (Ti), Platinum (Pt). The lining and the electrodes are chosen according to the chemical composition and the temperature of the measured medium. Please, consult the concrete materials with the manufacturer. Transmitter can be integral part of the sensor – compact version or it is connected with the sensor with a cable – remote version.

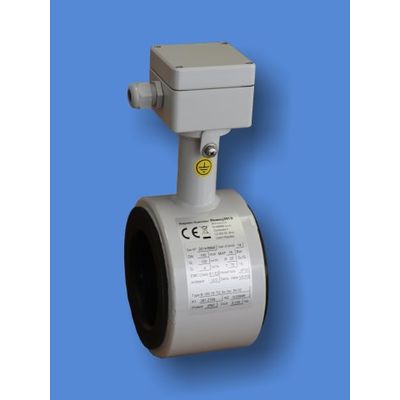

Sensor of the electromagnetic flowmeter FLOMAG as wafer version. The sensor is mounted between flanges constricted by screw bolts. It is manufactured in dimensions from DN10 up to DN200 for pressure rates from PN6 up to PN25. Lining is manufactured from soft rubber (MG), hard rubber (TG), special hard rubber (NG), PTFE (T). Measuring electrodes are manufactured from stainless steel (Ss), Hasteloy C276 (Ha), Platinum (Pt). The lining and the electrodes are chosen according to the chemical composition and the temperature of the measured medium. Please, consult the concrete materials with the manufacturer. Transmitter can be integral part of the sensor – compact version or it is connected with the sensor with a cable – remote version.

Sensor of the electromagnetic flowmeter FLOMAG with aseptic thread according to DIN 11851 used in food industry. Nut of the thread connection is on the sensor’s side. The male part with external thread for welding on the piping is a part of the delivery. That sensor is used for flow measurement of foodstuffs. It is manufactured in dimensions from DN15 up to DN150 for pressure rates from PN6 up to PN25. Lining is manufactured from soft rubber (MG), hard rubber (TG), special hard rubber (NG) – used for potable water, PTFE (T). Measuring electrodes are manufactured from stainless steel (Ss), Hasteloy C276 (Ha), Platinum (Pt). The lining and the electrodes are chosen according to the chemical composition and the temperature of the measured medium. Please, consult the concrete materials with the manufacturer. Transmitter can be integral part of the sensor – compact version or it is connected with the sensor with a cable – remote version.

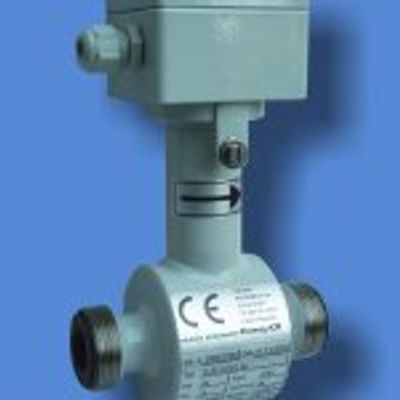

Sensor of the electromagnetic flowmeter FLOMAG with thread connections according to DIN ISO 228/1 (CSN 01 4033). It is manufactured in dimensions from DN4 up to DN150 for pressure rates from PN6 up to PN25. Lining is manufactured from soft rubber (MG), hard rubber (TG), special hard rubber (NG), PTFE (T). For DN4 - DN8, by reason of design and cosntruction, only PVDF liner is used. Measuring electrodes are manufactured from stainless steel (Ss), Hasteloy C276 (Ha), Platinum (Pt). The lining and the electrodes are chosen according to the chemical composition and the temperature of the measured medium. Please, consult the concrete materials with the manufacturer. Transmitter can be integral part of the sensor – compact version or it is connected with the sensor with a cable – remote version.

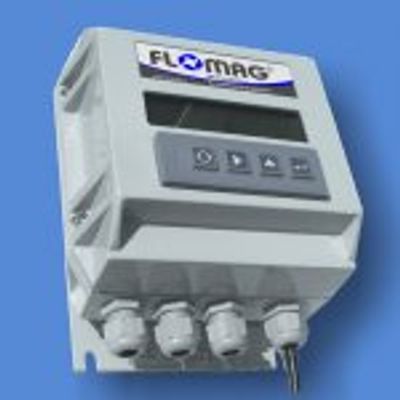

Magnetic flowmeter FLOMAG 3000 is a volume flow rate meter for conductive fluids in pipelines. It allows measurement of flow rates in both directions, with high accuracy and in wide range of flow rates (0,1 – 12 m/s). The microprocessor controlled transmitter offers a wide variety of binary, analogue and digital inputs and outputs suitable for all applications. Absence of moving parts and digital calibration ensures long-term accuracy and stability.

Magnetic flowmeter FLOMAG-ICM is a volume flow rate meter for conductive fluids in pipelines. It allows measurement of flow rates in both directions, with high accuracy and in wide range of flow rates (0,1 – 12 m/s). The microprocessor controlled transmitter offers a wide variety of binary, analogue and digital inputs and outputs suitable for all applications. Absence of moving parts and digital calibration ensures long-term accuracy and stability.

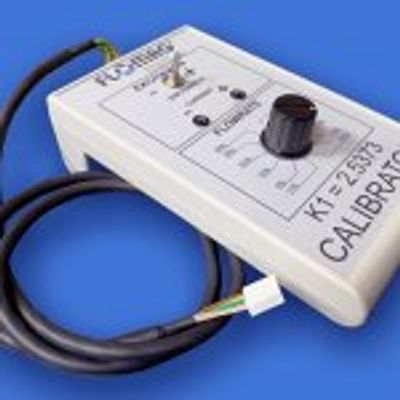

Tool for converters checking and calibration. Calibrator is using for converters checking and calibration.

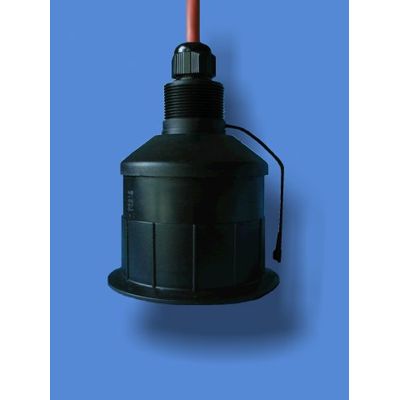

Ultrasonic level sensor is designed for level measurement of liquids in closed and open tanks and channels. It is used in potable and waste water plants, food and stuff industry, etc. The sensor generates ultrasonic waves to the surface of the measured liquid. The ultrasonic waves reflect from the liquid surface and go back to the sensor. Microprocessor measures the time from the ultrasonic pulse generation to receipt of reflected pulse. Microprocessor realizes automatic temperature correction of the ultrasonic speed, control of the received echo signal, correction of the amplification and adaptation to the dynamics of the process. The level of the liquid is calculated for set basic distance L0. The information for the measured distance/level is transmitted to the current output and serial interface RS485.

It was designed for level control of liquids, process/alarm signalisation or control of pumps, valves, etc.

The programmer is designed for control and programming of ultrasonic level sensors ULS10.
