Flomotion Systems, Inc. products

The MS501 provides reliable flow measurement with high accuracy, ease of installation and low operating cost. Several converters for control and interfacing are available for this flow sensor.

The MS600 Flowmeter combines reliable full-pipe flow measurement with high accuracy, low cost and ease of installation. Several converters for control and interfacing are available for this flow sensor.

The MS1000 Flowmeter combines reliable full-pipe flow measurement with high accuracy, low cost and ease of installation. Several converters for control and interfacing are available for this flow sensor.

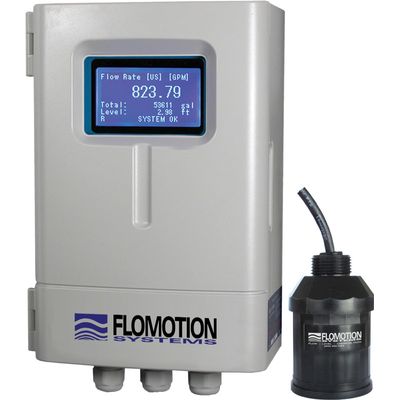

The Flomotion FM8000 provides accurate non-contact ultrasonic open channel flow measurement. Simple programming allows selection from a list of common built-in weir and flume tables. In addition, head vs. flow data points may be input for almost any type of primary device. The bright, easy to read graphics display and built-in keypad allow for fast, simple programming and operational indication.

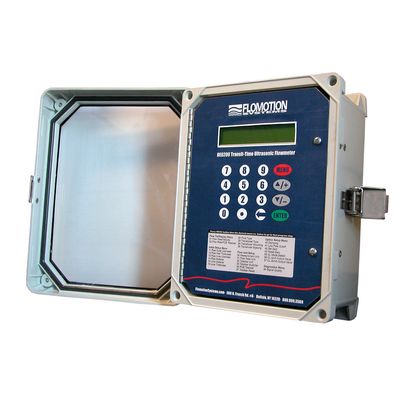

Combines reliable full-pipe flow measurement with high accuracy, low-cost and ease of installation. Clamp-on type ultrasonic flowmeters offer the the simplest and easiest installation of any flowmeter. The BE6300 transit-time flowmeter is no exception and installs in minutes. A pair of rugged transducers mounts easily to the outside of the pipe using standard clamping straps. The transducers are non-intrusive, therefore there is no pressure drop or flow obstruction. The advanced microprocessor utilizes the latest in ultrasonic direct time measurement with a resolution of 0.2 nanoseconds. Coupled with state-of-the-art data processing the BE6300 provides a high level of linearity. Various inputs and outputs are available to interface with a wide variety of control and reporting systems. Remote programming is available via the standard RS232C port.

Accurately measures flow rates down to 63 ml/min. Corrosion resistant materials make these sensors ideal for a wide variety of chemical flow monitoring applications.

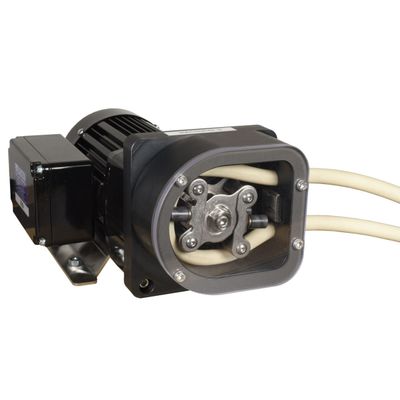

Designed to meet the demanding requirements of continuous liquid sample delivery. Exceptional self-priming capabilities make the SP21 an ideal choice for hard-to-handle chemicals such as sodium hypochlorite, hydrogen peroxide or viscous polymers. A wide range of flow outputs can be obtained by simply changing the tubing size. One size pumphead accepts six standard tubing sizes. The spring-loaded pumphead rollers provide extended tubing life and automatically compensate for minor variations in pump tube wall thickness.

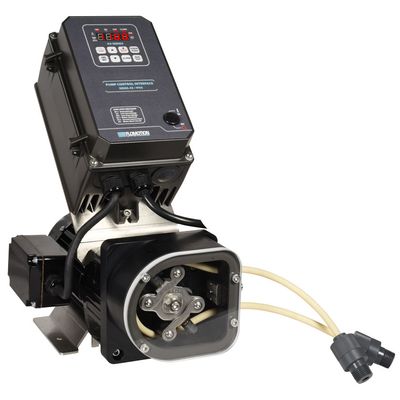

Designed to meet the demanding requirements of chemical injection and dispensing applications. Exceptional self-priming capabilities make the H21 Series peristaltic pumps an ideal choice for hard-to-handle chemicals such as sodium hypochlorite, hydrogen peroxide or viscous polymers. An extremely wide range of flow outputs can be obtained by simply changing the tubing size. The versatile K24 NEMA 4X motor drive controller may be conveniently mounted directly on the pump or remotely on a wall or panel. One size pumphead accepts six standard tubing sizes. The spring loaded pumphead rollers provide extended tubing life and automatically compensate for minor variations in pump tube wall thickness.

Designed to meet the demanding requirements of chemical injection and dispensing applications. Suitable for base or wall mounting, the PP1H and PP2H is a self contained, prepackaged chemical metering system. Flow rates are available up to 48 GPH and is capable of injecting into pressures up to 100 PSI. The Polypropylene or Fiberglass mounting skid features integral leak containment with an optional Tubing Rupture Detector that can start a back-up pump and/or signal an operator remotely via an autodialer. The rugged industrial pumps use NEMA TEFC motors and seal-less pumping technology. They are self-priming with suction lifts up to 25 ft.

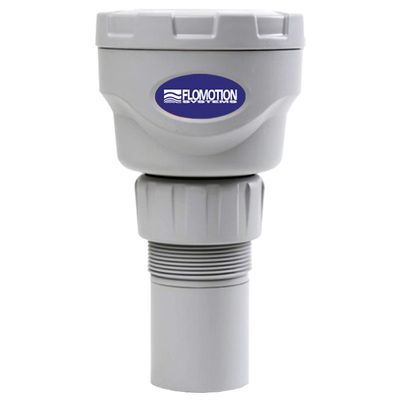

The LT330 Ultrasonic level meter from Flomotion Systems is designed for tank level or contents measurement of liquids. 33 Foot Range. Low Cost. High Accuracy. Non-Contact Measurement. No Moving Parts. Compact, Lightweight Design. 2″ NPT or 2″ Flanged Process Connections. Corrosion Resistant Materials. Built-in Temperature Compensation. Programmable 4-20mA Output. Selectable Transducer Power Level. Adjustable Damping. Displays Level, Distance or Space. Loss of Echo Indicator.
