Flotek Industries products

Size 2” (50 mm) to 24” (600 mm). Class 150# / 300# / 600# / 900# /1500# / 2500#. End Flanged / Butt weld / Ring Joints Ends. Design API-600 / BS-1414 / API-603 / API-6D. Fire Safe API - 6FA. Features Bolted / O.S. & Y Type, Flexible / Solid Wedge, Integral Seat or Renewable Seat Ring. Operations Hand / Gear / Chain / Power Actuator operated. Special Material & Higher Size also available on request.

Size 1/2" (15mm) to 16" (400mm). Class 150# / 300# / 600# / 900# / 1500# /2500#. End Flanged / Butt weld / Ring Joints Ends. Design BS 1873. Features Bolted / Parabolic type Disc, Bottom seated / Renewable Seat Ring. Operations Hand / Gear / Chain / Power Actuator operated. Special Material & Higher Size also available on request.

Size 2” (50 mm) to 24” (600 mm). Class 150# / 300# / 600# / 900# / 1500# / 2500#. End Flanged / Butt weld / Ring Joints Ends. Design BS 1868 / API 6D. Fire Safe API - 6FD. Features Bolted / Swing type disc. Special Material & Higher Size also available on request.

Size 1/4" (8mm) to 2" (50mm). Class 800# / 1500# / 2500#. End Threaded / Socket Weld / Butt Weld Ends. Design API-602 / BS 5352. Features Bolted / Welded Bonnet. Special Material & Higher Size also available on request.

Size 1/2" (15mm) to 2" (50mm) - Threaded End, 1/2" (15mm) to 14" (350mm) - Flanged End. Class 150# / 300# / 600# / 900# / 1500# / 2500#. End Flanged / Threaded / Socket Weld Ends / Butt Weld Ends. Design Mfg. Standard. Features Suitable for Liquid, Gas & Steam, Insolation either horizontal Or vertical. Special Material & Higher Size also available on request.

Size 2" to 36". Class 150# / 300# / 600#. End Flanged Ends / Butt Weld Ends. Design Mfg. Standard. MOC Carbon Steel / Stainless Steel / Alloy Steel. Features Large Filtration Area, Low Pressure Drop, Compact Size and Weight. Special Material & Higher Size also available on request.

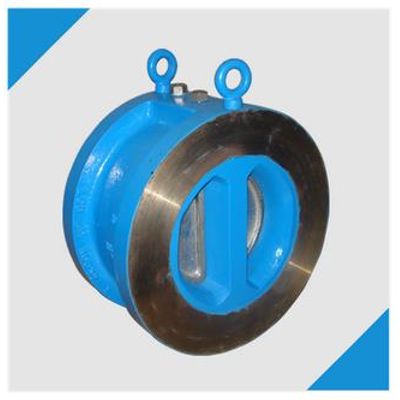

Size 2" (50mm) to 24" (600mm). Class 150# / 300#. End Wafer Type / Lug Type / Flange Ends. Design API-594 / API-6D. Seat Rubber (NBR/EPDM/VITON) Seat / Metal Seat. Features Retainer less Design.

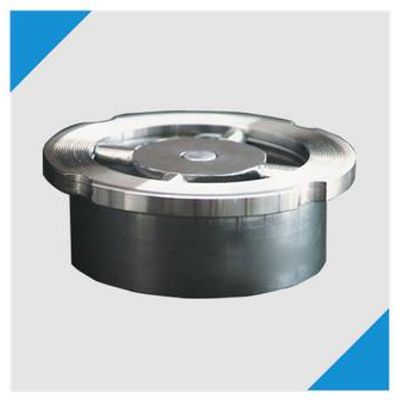

Size 1/2" (15mm) to 4" (100mm). Class 150# / 300# / 600# / 900# / 1500#. End Wafer Type (Suitable for 150# / 300# Flanges). Design DIN EN 558-2. Seat Standard shall be metal to metal / Rubble Seat on Request. Special Material & Higher Size also available on request.

Size 2" (50mm) to 24" (600mm). Class PN 16 Up to 12" and above PN 10. End Wafer Type / Lug Type / Flange Ends. Design API-609 - Category : A. Features Replaceable Seat as NBR / EPDM / SILICON / VITON / PTFE. Operation Lever / Gear / Actuator / Electric Operated.

Size 2" (50mm) to 24" (600mm). Class Class 150#. End Wafer Type / Lug Type / Flange Ends. Design API-609 - Category : B / AWWA C504. Features Replaceable Seat, Lip Seal Design, NBR/EPDM/SILICON/VITON etc, Cryogenic Valve. Operation Lever / Gear / Actuator / Electric Operated.
