FLOVEL Energy Private Limited products

Model Axial Flow - Very Low Head Applications

Axial Flow units are used primarily for applications with low head and large flows. FLOVEL’s Axial Flow units are based on decades of know-how and state-of-the-art technology. These Axial Flow units guarantee the highest operating efficiency and reliability.

Valves

FLOVEL manufactures full range of Valves under its joint venture with TB Hydro, Poland. These valves are manufactured by JV company TB Hydro Flovel Valves Private Limited.

Regulating Valves

Conical Jet Valve

CJV are used as free discharge devices in pressure piping systems. Advantages on Conical Jet valve: More cost effective, Lower maintenance, Adaptable to manual, hydraulic and electric actuators. Dissipates enormous energy by breaking up discharge water into large hollow jet.

Plunger Valve

Plunger Valve is a type of control valve with annular flow cross-section for continuous regulations at high pressure differences and flow rates. PLV plunger valves are used as shut-off and regulating devices in pressure pipe systems. Advantages on Plunger Valve: Suitable for high pressures. Adaptable to manual, hydraulic and electric actuators. Valve with counterweight acts as a safety device and ensures fail safe opening. Longer service life as bearings are not in contact with medium. One-piece compact body design.

Slide/Sleeve Valve

Slide Valves are designed with a self-closing tendency. The opening is controlled hydraulically or by suitably designing it for its own medium. SLV slide valves are used as shut-off devices in pressurized piping system. Advantages on Slide Valve: Suitable for high pressures. Compact design. Low head loss. Lower maintenance and very long service life. Low vibrations and sound levels. Higher wear and corrosion resistance as complete valve is made of stainless steel.

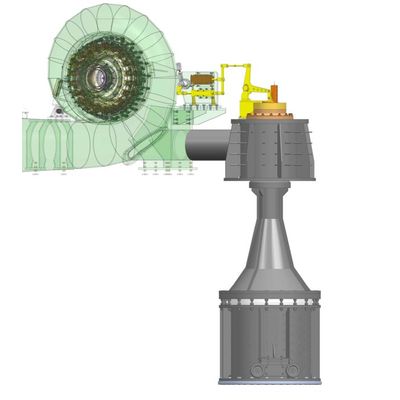

Model Needle Type Valve - Synchronized Application with Turbine

It is a safety cum regulating device suitable for projects having Francis & Kaplan units in order to limit pressure rise and speed rise in permissible range. Advantages on Needle type Valve: Fail safe safety device, as mechanical / hydraulic linkages are used for synchronous operation with turbine. Lesser noise and vibrations as water is discharged through large orifice cylinder. Highly effective in energy dissipation/pressure reduction. Highly effective in flow regulation as per the control requirement of turbine transient.
