14 products found
FlowCon International Products
-
Temperature Control Valves
Temperature Control valves are actuated control valves and are available on the market with or without added dynamic flow control. Both types are common in heating as well as cooling applications and assist in the aim of accurate temperature control. Choice of actuator can be either thermal or electrical depending on the application and one’s budget. FlowCon offers both temperature control valve types. One type is a combined dynamic balancing and temperature control solution and the other is a temperature control solution with equal percentage control. Both are cost-effective solutions for any HVAC application offering accurate control, flexibility and easy service.
-
FlowCon EVS - Model DN15-25 - Automatically Balanced Temperature Control Valves (1/2`-1`)
Dynamic balanced temperature control valves (BTCV/TCV). Accessible, removeable pre-set stainless steel insert. Serviceable. Choice of actuator:. EV actuators: thermal 0-10V modulating or ON/OFF, standard failsafe – optional end switch. Forged brass or DZR brass housing DN15/20/25 (1/2”-1”). Optional pressure/temperature plugs (AB). Fixed female-by-female ...
-

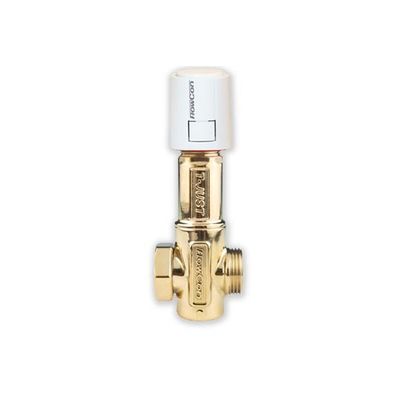

FlowCon T-JUST - Model DN15-25 - Thermostatic Control Valves (1/2`-1`)
Thermostaitc control valve. Adjustable to 7 different temperature settings. Serviceable. Manual or electrically operated by-pass. Optional actuator: EV actuators: thermal ON/OFF, standard failsafe. Forged brass or DZR brass housing DN15/20/25 (1/2”-1”) or SS housing DN20 (3/4”). Optional pressure/temperature plugs (AB). Fixed female-by-female threaded (A or AB) or union end connected inlet/male threaded outlet ...
-
Adjustable Cartridge Automatic Balancing Valves
-

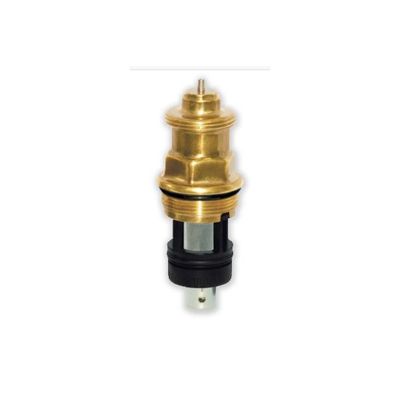

FlowCon - Model A - Adjustable Cartridge Automatic Balancing Valves
Choice of accessible composite insert; standard composite insert internally adjustable to one of 8 different flow rates or E-JUST insert externally adjustable to one of 41 different flow rates. Forged brass housing. Female by female ...
-
Externally Adjustable Automatic Balancing Valves
-
FlowCon - Model SH DN15-40 - Externally Adjustable Automatic Balancing Valves
Settings. Forged brass housing. Optional pressure/temperature plugs. Range of union end connections available. Sizes: 15-40mm (½"-1½").
dP-range: 33-300 kPaD (4.8-44 psid). Flow rate: 0.075-1.95 l/sec (1.2-30.9 ... -
FlowCon - Model SH DN50-250 - Externally Adjustable Automatic Balancing Valves
Externally adjustable to 51 (91 for SH.6.2) different flow rate settings. Ductile iron housing. Standard with pressure/temperature plugs. Universal flange connections. Sizes: 50-250mm (2"-10"). dP-range: 30-600 kPaD (4.5-87 psid). Flow rate: 1.48-76.8 l/sec (23.4-1220 ...
-
Pre-Set Automatic Balancing Valves
-

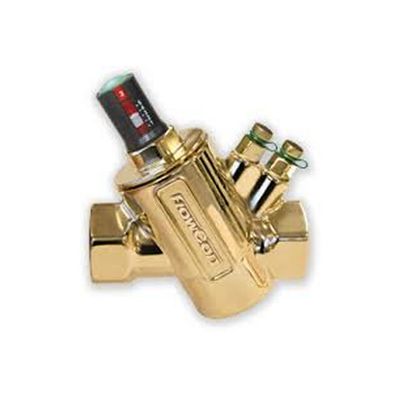

FlowCon - Model K - Pre-Set Automatic Balancing Valves
Accessible, removable pre-set stainless steel insert. Forged brass housing (DN15-50) and cast brass (DN50-80). Female by female threaded connection. Standard with pressure/temperature plugs. Sizes: 15-80mm (½"-3"). dP-range: 10-880 kPaD (1-128 psid). Flow rate: 0.021-10.10 l/sec (0.333-16.0 ...
-
Pressure Independent Control Valves (PICV)
Pressure Independent Control Valves or Pressure Independent Balancing and Control Valves – also commonly known as PICVs (or PIBCVs) – are getting more and more popular in both 2- and 4-pipe heating and cooling applications due to their accurate flow control at any load condition. A good PICV will offer 100% authority no matter the design flow it is set to and regulate with a full control span from 0(2)-10V control signal dependent on actual load requirements. Control mode is traditionally made with a linear control signal, but designs are at present time frequently made with equal percent signal – clearly FlowCon offers both. Also, it is essential that the balancing valve function is adjustable, dynamic and pressure independent which is the essence of FlowCon’s business since decades.
-

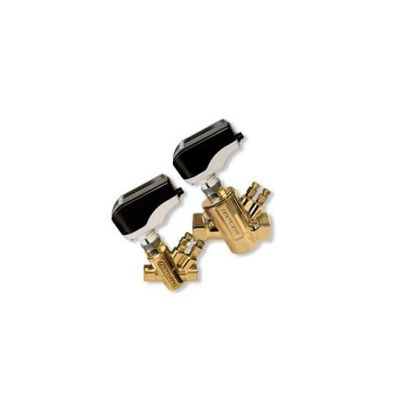

FlowCon Green - Model DN15-32 - Pressure Independent Control Valves
FlowCon Green.0/1/1HF/2; DN15-32 (1/2"-1 1/4"); Pressure independent balancing and control valves (PIBCV/PICV). Total authority. Choice of actuator:. FN actuators: electrical 0(2)-10V modulating, 3-point floating or 2-position, optional failsafe. FNP actuators: electrical 0(2)-10V modulating. FNR actuators: electrical 0-10V modulating, 3-point floating or 2-position. FT actuators: thermal 0-10V modulating or ON/OFF, standard failsafe. Adjustable to 41 ...
-
FlowCon GreEQ - Model DN15-32 - Pressure Independent Control Valves
Pressure independent balancing and control valves (PIBCV/PICV). Total authority. Equal percentage insert. Choice of actuator:. FNR.0.2 actuator: electrical 0-10V modulating, linear control mode. Adjustable to 41 different maximum flow rate limits. Forged brass or DZR brass housing DN15/20/25 (1/2”-1”) and forged brass housing DN25/32 (1”-1 1/4”). Optional pressure/temperature plugs. Fixed female-by-female ...
-

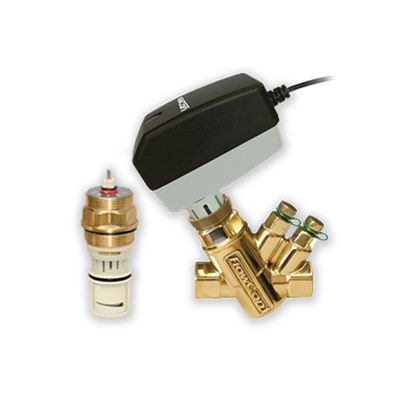

FlowCon UniQ - Model DN15-20 - Pressure Independent Control Valves
Dynamic self-balancing modulating control valve. Total authority, pressure independent . Choice of actuator:. EV actuators: thermal 0-10V modulating or ON/OFF, standard failsafe. FNR.0.2 actuator: electrical 0-10V modulating, linear control mode. FN actuators: electrical 3-point floating or 2-position, optional failsafe . Adjustable to 41 different maximum flow rate limits. Forged brass housing. Range of EuroCone connections available or fixed ...
-
Differential Pressure Control Valves (DPCV)
Differential Pressure Control Valves - also commonly called DPCVs - are installed in heating or cooling systems to control sub-circuit pressure to a set or given maximum. FlowCon’s DPCV range include three different types. A type with pre-set ΔpC (differential pressure across the circuit), a type with adjustable ΔpC and finally a type being a combined dynamic balancing valve and adjustable DPCV. They offer a flexible range meeting any system demand.
-

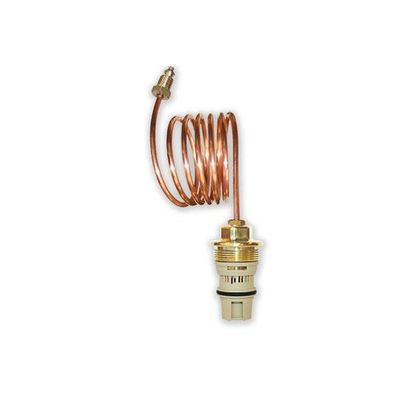

FlowCon EDP - Model DN15-50 - Differential Pressure Control Valves
Adjustable differential pressure controller (DPCV). Serviceable and compact. Adjustable to 41 different ΔpC settings. Forged brass or DZR brass housing DN15/20/25 (1/2”-1”), forged brass housing DN25-50 (1”-2”) or ductile iron housing DN40/50 (1 1/2”-2”). Optional pressure/temperature plugs. Fixed female-by-female threaded. Max. operational ΔP: 400 kPaD (58 ...
-
FlowCon SDP - Model DN15-25 - Differential Pressure Control Valves
Pre-set differential pressure controller (DPCV). No site adjustment. Tamper proof. Available in 3 different pre-set versions. Forged brass or DZR brass housing DN15/20/25 (1/2”-1”). Optional pressure/temperature plugs. Fixed female-by-female threaded. Max. operational ΔP: 400 kPaD (58 ...
-
Dynamic Balancing Valves
Dynamic Balancing or Automatic Balancing Valves – also commonly known as ABVs – are two words for the same thing. Dynamic balancing valves ensure that the design flow will not be exceeded regardless of pressure fluctuations in the system. These valves can be used in basically any construction-based heating or cooling system. Dynamic balancing is – contrary to static balancing – a completely pressure independent solution. This secures a HVAC system free from overflow or starvation even at partial loads. Consequently, equipment will maintain their efficiency, correct temperature is transferred, and the right indoor temperature is secured at lowest possible energy consumption. Another benefit when using automatic balancing is no piping restrictions (no added length of straight pipe before and after the valve), reduced installation time and practically no commissioning time.
-
FlowCon E-JUST - Model DN15-50 - Dynamic Balancing Valves
Externally adjustable dynamic balancing valve. Serviceable. Adjustable to 41 different flow rate limits. Forged brass or DZR brass housing DN15/20/25 (1/2”-1”), forged brass housing DN25-50 (1”-2”) or ductile iron housing DN40/50 (1 1/2”-2”). Optional pressure/temperature plugs. Fixed female-by-female ...
-
Pressure Independent Temperature Control (PITCV)
Pressure dependent ΔT Valves – also commonly known as energy valves – are getting known in the market. But why not take it one step further and combine both Pressure Independency and ΔT control in one solution? With the energy system solution from FlowCon you will get exactly this Welcome to FlowCon Energy FIT System. With the FlowCon Energy FIT System you will get monitoring, measuring, connectivity and control in one package. FlowCon FIT measures energy usage while monitoring coil performance and adjusts the PICV valve to optimize coil performance. The solution will maintain the correct flow, despite pressure changes and will guarantee that flow change and change in actuator position only occur when demand requirements change or ΔT is outside specification. By optimizing ΔT, flow rate requirements may be reduced resulting in energy savings, while having pressure independency and ΔT control.
-

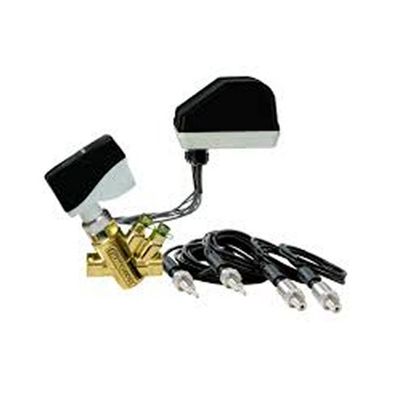

FlowCon FIT-G - Model DN15-50 - Energy FIT System (1/2`-2`)
State-of-the-art pressure independent balancing and temperature control (PITCV). Cost savings due to optimized energy consumption, improved efficiency and ΔT control. Simple monitoring via Bluetooth® or analog to BMS via BACnet. Communicates to FlowCon App (iOS or Android). All in one system including PICV, Intelligent Interface and sensor kit. Actuator on PICV. FN actuators: electrical 2-10V modulating, optional failsafe. FH actuators: ...
-
FlowCon Actuators
Commonly there are two categories of actuators: Thermal or Electrical. Thermal actuators are slow reacting as they are driven by an electric heated wax element. Electrical actuators, which are motor driven, are somewhat faster. For the FlowCon Energy FIT System we offer the Electrical BACnet SM actuators for the PICV (SM.0.0.0.5 and SM.0.0.0.6). Alternatively, the standard Electrical SM actuators (SM.0.0.0.3 and SM.0.0.0.4) can be used. As baseline, all FlowCon actuators are supplied normally closed (NC) and normally open (NO) versions are either available upon request or the change from NC to NO is a built-in feature. Common for most of our actuators is the fact that actuator and valve are developed as a pair to achieve optimal control function.
-

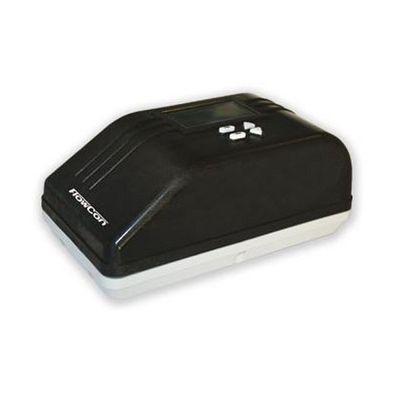

FlowCon - Model SM - Actuators
FlowCon SM Actuators for FlowCon SM and Energy FIT. Electrical programmable display actuators, 24V. Same actuator fits all sizes SM and FIT. 0(2)-10V or 0(4)-20mA modulating, 3-point floating or 2-position. Standard with feedback. Standard with manual override. Settable control characteristics (linear control, equal percentage, linear rotation or linear signal). Settable flow unit (l/sec, l/hr or GPM). Settable control direction (NO/NC). Settable flush ...
