Flowinn Industrial Co., Ltd products

Quarter Turn - EOM & EFM Series

Flowinn - Integral Type Quarter Turn Actuator

Torque range:100~20,000N.m. Switching time :11~155 S. Ambient temperature :-25?~+70?. Control method:On and off / modulating type. Display mode:3D opening indicator. Presence control:no.

Quarter Turn - EOT Series

Flowinn - Model EOT 05 - Quarter Turn Actuator

Max output Torque:50N.m. Switching time:19S. Ambient temperature: -25?~+60?. Control method: On and off / modulating type. Weight: 2KG. Protection: IP67, (IP68 optional). Voltage: Single phase:AC110V/AC220V/AC24V. Direct current (DC):DC24V.

Flowinn - Model EOT10 - Quarter Turn Actuator

Max output Torque100N.m. Switching time:30 S. Ambient temperature:-25?~+60?. Control method:On and off / modulating type. Weight:4.5KG. Protection:IP67, (IP68 optional).

Flowinn - Model EOT 20/40/60 - Quarter Turn Actuator

Voltage:Single phase:AC110V/AC220V/AC24V. Three phase:AC380V. Direct current (DC):DC24V.

Multi Turn - EMT Series

Flowinn - Basic Type Multi Turn Actuator

Torque range: 35~3,000N.m. Speed: 18~192rpm. Ambient temperature: -30 ? ~ 70 ?, optional: -40 ? ~ 60 ?. Mode of control: On and off, display mode: Mechanical pointer. Site control: no.

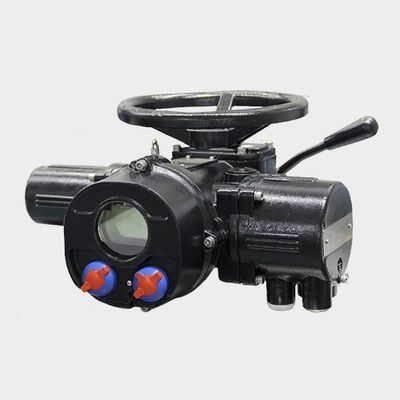

Flowinn - Integration Type Multi Turn Actuator

Torque range: 35~3,000N.m. Speed: 18~192rpm. Ambient temperature: -30 ? ~ 70 ?, optional: -40 ? ~ 60 ?. Mode of control: On and off . Display mode: LCD display . Site control: Non-invasive field control knob.
