8 products found

Flowmetrix SA products

Flowmetrix - Portable Doppler Flow Meter

• Non-invasive clamp-on sensor • Pipe sizes DN25 to DN3000 • Hand held flow meter • Volumetric flow units of measurement • Flow total and rate display • 20 Hour battery life • Data logger 260 000 logs • Metric and US units • Quick to install & Easy to use • Low cost

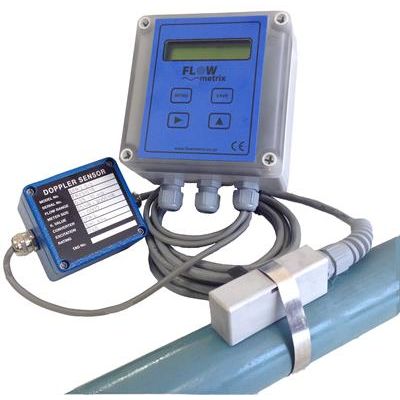

Flowmetrix - Doppler flow meter

• Single non-invasive clamp-on sensor • Pipe sizes DN25 to DN3000 • Extended cable with inline transmitter • Flow total and rate display • Microprocessor Programmable • Analogue, Pulse & Relay outputs • Metric and US units • Quick to install & Easy to use • Low cost

Flowmetrix - DFS2 Ultrasonic clamp on Doppler Flow meter

• Single non-invasive clamp-on sensor • Pipe sizes DN25 to DN3000 • 10 LED Bar graph flow indicator • Single Form C Relay, SPDT • 0 - 2m/s (0 - 6ft/s) or 0 - 6m/s (0 -18ft/s) • Adjustable start-up timer for pump operation • Adjustable delay timer for relay • Selectable latching of relay • Low cost, Quick to install, Easy to use • No sensor fouling, Zero pressure drop

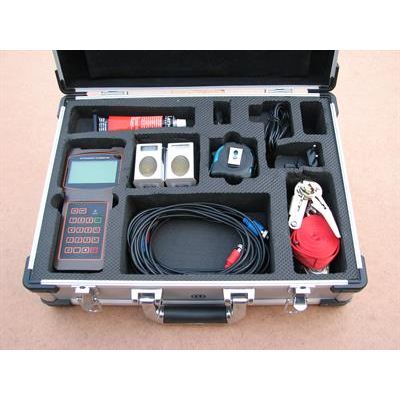

FLOWMETRIX - Portable Ultrasonic Time Of Flight Meter

Wide flow measurement range 0,01m/s to 32m/s Bi-directional flow measurement Flow totaliser – positive, negative and net Pipe size range from DN15 to DN6000 Rechargeable battery with 10hour battery life. Easy to use menu structure Non-invasive No moving parts No pressure loss Hygienic flow measurement Easy and economical to install Measurement is independent of fluid conductivity and pressure No contact with medium ensures no risk of corrosion when measuring aggressive media

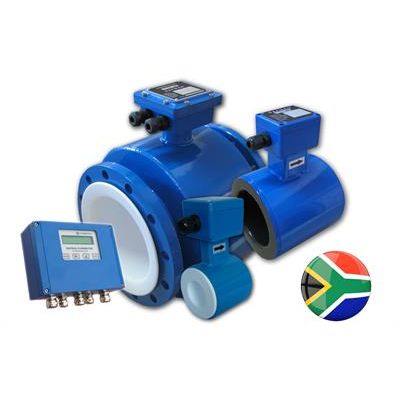

SAFMAG - Beta meter Electromagnetic Flowmeter

The Safmag β (Beta) Meter is designed for the water and effluent industries. The Safmag β Meter is cost effective easy to use, easy to install and provides excellent accuracy and reliable flow measurement in demanding environments. The Safmag β Meter delivers exceptional accuracy of 0.5% uses the long proven non-intrusive principle of electro-magnetic induction has no moving parts and introduces zero head loss. Readings are independent of density, temperature, viscosity and pressure. The β signal converter has state-of-the-art electronic components and a high-speed microprocessor for accuracy and reliability Easy Batch Function: The Beta has an easy to use Batch functions which can be configured in the batch menu. It is simple and can be setup even without the manual for all process control and irrigation applications. Modbus RTU: This protocol defines a message structure that’s hosts and clients will recognize and use on the network over which they communicate.The Modbus RTU uses a M

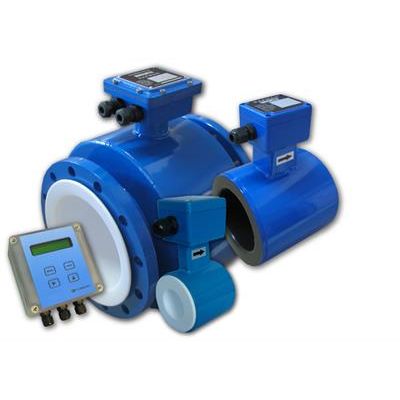

FLOWMETRIX - DCP Pro Electromagnetic Flowmeter

The SAFMAG DCP Pro Electromagnetic Flowmeter utilises DC pulse electromagnetic technology for the accurate measurement of conductive liquids in full pipes. The principle of measurement, Faraday’s law of electromagnetic induction, is based on a theory that the voltage induced across an electrical conductor as it moves at right angles through a magnetic field is directly proportional to the velocity of that conductor through the field. This process is controlled and monitored by the signal converter/ display unit which returns the calculated data in user selected units of measurement.

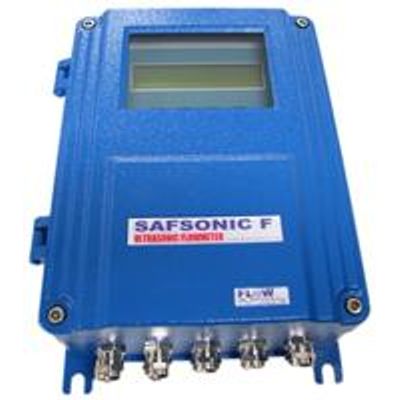

FLOWMETRIX - Safsonic F Time Of Flight Flowmeter

The Safsonic F clamp-on flowmeter utilises ultrasonic technology for the accurate measurement of clean or opaque liquids in full pipes. The principle of measurement, Ultrasonic Time Difference Correlation, more commonly known as Transit Time or Time of Flight, is based on the theory that sound waves are affected by a flowing medium. Measurements are taken by penetrating the pipe with an ultrasound signal by means of two ultrasonic transducers, each having a turn to act as a transmitter and receiver. The transit time of the sound waves in both upstream and downstream directions of the flow are monitored with the resulting time difference being directly proportional to the flow velocity. This process is controlled and closely monitored by the remote, microprocessor based display unit which returns the calculated data in user selected units of measurement.

SAFMAG - Battery Powered Electromagnetic Flowmeter

The Safmag Batmag is designed for the water, waste water and irrigation industries. The Safmag Batmag is cost effective, easy to use and easy to install. The Safmag Batmag provides excellent accuracy and reliable flow measurement in demanding environments. The Safmag Batmag is available with wetted parts to suit all potable water and effluent applications. The Safmag Batmag delivers exceptional accuracy of 1% uses the long proven non-intrusive principle of electro-magnetic induction has no moving parts and introduces zero head loss. Readings are independent of density, temperature, viscosity and pressure. The Batmag signal converter has state-of-the-art low power electronic components and a high-speed microprocessor for accuracy and reliability.
