Flowtech Measuring Instruments Private Limited products

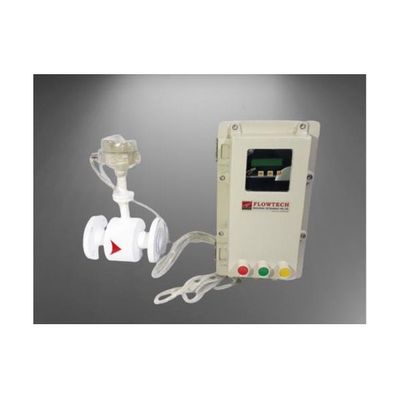

Flowtech Make Electromagnetic Water Flow Meter are intended for measuring flow of electrically conductive liquids in closed pipe lines where the magnetic flux permeates the entire cross sectional area of the liquids flow. Electromagnetic flow meters measure electromotive forces to determine liquids velocity using Faraday’s law of electromagnetic induction and compute the flow rate using equation of conductive liquids having minimum conductivity of 5 micro Siemens / cm and are relatively immune to the effects of temperature , pressure , viscosity & density of the flowing liquid.

Flowtech Battery Operator Electromagnetic Flow Meter operation principle is based on measuring electromotive force induced in electrically conductive liquid when it moves in magnetic field. The magnetic field is furnished in the flow sensor`s inner channel by a special electromagnetic system. Inductive electromotive force (EMP) E is proportional to the mean flow velocity v, distance between the electrodes d (which is equal to the sensor`s inner diameter), and magnetic field strength E = v ×d×B×k.

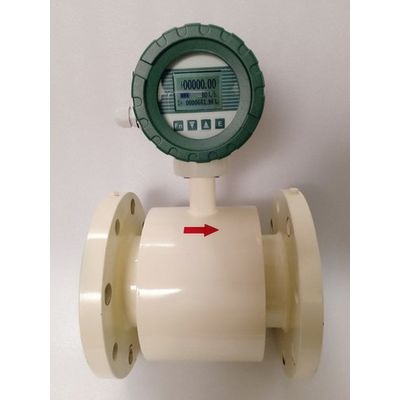

Flowtech Make Effluent Water Digital Flow Meter are intended for measuring flow of electrically conductive liquids in closed pipe lines where the magnetic flux permeates the entire cross sectional area of the liquids flow. Electromagnetic flow meters measure electromotive forces to determine liquids velocity using Faraday’s law of electromagnetic induction and compute the flow rate using equation of conductive liquids having minimum conductivity of 5 micro Siemens / cm and are relatively immune to the effects of temperature , pressure , viscosity & density of the flowing liquid.

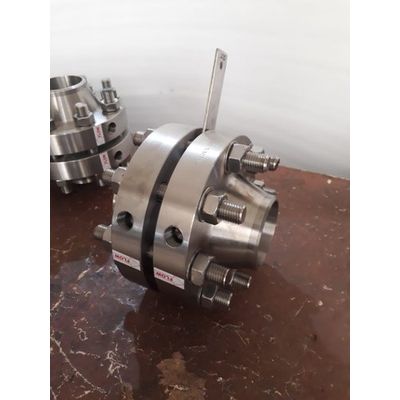

Orifice Plate Meter gives an acceptable level of uncertainties at lowest cost and long life without regular maintenance. These products from our side are most commonly used as primary element for flow measurement in pipelines based upon the principle of measurement of differential pressure created when an obstruction is placed in the fluid flow, due to increase in fluid velocity.

“Flowtech” offer Float & Board Type Tank Level gauge (indicator) suitable for large non –pressurized liquid storage tanks / vessels. This gauge is also applicable to cone roof, float roof, floating roof, under grand tanks etc. The Specific Gravity of the fluid should be more than 0.6(Free Flow) This level gauge wonks on the principle of buoyancy. The whole unit consist of two types of parts. Viz wetted parts & Non-wetted parts. Wetted parts are those which come in contact with the liquid e.g. Float anchor plan float guide wire etc while. Nonetted parts are the one which do not come in contact with the liquid e.g. Float wire, Mountain Breakets indicator pulley pulley hosing scale, indicator etc. The Float is available in different material S.S.304 / S.S.316/P.P./Teflon etc.

“Flowtech” offer Float & Board Type Tank Level gauge (indicator) suitable for large non –pressurized liquid storage tanks / vessels. This gauge is also applicable to cone roof, float roof, floating roof, under grand tanks etc. The Specific Gravity of the fluid should be more than 0.6(Free Flow) This level gauge wonks on the principle of buoyancy. The whole unit consist of two types of parts. Viz wetted parts & Non-wetted parts. Wetted parts are those which come in contact with the liquid e.g. Float anchor plan float guide wire etc while. Nonetted parts are the one which do not come in contact with the liquid e.g.

Flowtech Liquid Flow Sensor Rotameters (Rotameters) are intended for general in line and By-Pass metering applications (i.e. for Gas & Liquid) where operating conditions are with the limitations of Glass metering tubes. These are the principle of Variable Area. The float moves freely up and down tapered borosilicate glass with fluid flow from bottom to top. The float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The Vertical position of the float as indicated by scale is the measure of the instantaneous flow rate. Simplified piping and reduced space requirements. Permanent magnetic link between metering float and motion position transmitter. Precision swaged metering tube. Heavy duty welded float and guide construction. Guide cartridges easily removable for cleaning. Provide with Electrical transmitter, flow indicator OR alarm.

Flowtech make Glass Rotameter are intended for general in line and By-Pass metering applications (i.e. for Gas & Liquid) where operating conditions are with the limitations of Glass metering tubes. These are the principle of Variable Area. The float moves freely up and down tapered borosilicate glass with fluid flow from bottom to top. The float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The Vertical position of the float as indicated by scale is the measure of the instantaneous flow rate.Simplified piping and reduced space requirements.Permanent magnetic link between metering float and motion position transmitter.Precision swaged metering tube.Heavy duty welded float and guide construction.Guide cartridges easily removable for cleaningProvide with Electrical transmitter, flow indicator OR alarm.

“Flowtech” make Magnetic Level Gauge provides clear, high clarity indication of liquid level. Magnetic Level Gauges are principally designed as an alternative to glass level gauges. Flowtech Measuring Instruments Pvt. Ltd. offers Magnetic Level Gauges in top-bottom, top and side mounted construction with two types of indicator system i.e. Capsule and Bi-colour Rollers. Magnetic Level Gauge is consists of three major components: Float Chamber, Float and Indicator System. Magnetic Level Gauge operates on the principle of magnetic field coupling to provide Fluid Level Information. Float chamber is typically constructed with non magnetic pipe having process Connections that matches to the vessel connections. Float size and weight is determined by the process fluid, pressure, temperature and the specific gravity of the process fluid. Float contains magnets to provide 360?? magnetic flux field.

Flowtech Acrylic Body Tube Variable Area Flow Meters (Rotameters) are inten intended for general in line metering applications (i.e. for Gas & Liquid) where operating conditions are with the limitations of Acrylic Body metering tubes. These are the principle of Variable Area. The float moves freely up and down tapered Acrylic body Tube with fluid flow from bottom to top. The float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The Vertical position of the float as indicated by scale is the measure of the instantaneous flow rate.
