Fluent Conveyors products

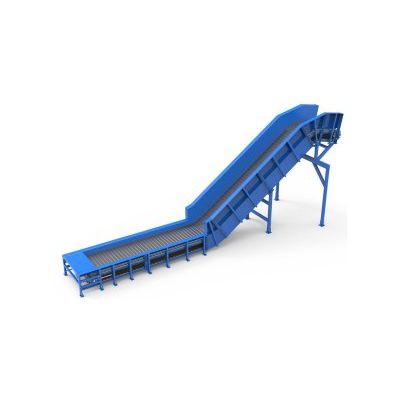

Fluent RC Series of Conveyors are engineered with industry leading 3D CAD software and manufactured with precision (tolerances and standards). This series comes in standard and custom widths and lengths. Standard roller chain conveyor widths include 36″, 48″ 60”, 72″, 84”, 96”, 108” & 120”. Lower Horizontal lengths come in standard sizes of 10 feet, 15 feet 20 feet, 25 feet and 30 feet as well as any custom lower horizontal length to best match project specifications. The incline angles range from 25 degrees to 35 degrees depending on the application, material, baler requirements and building specifications. The standard chain sizes include 3 inch rollers with a 6 or 9 inch pitch, 4 & 5 inch roller with a 9 inch pitch. The frame is made of 3/16″ steel rectangular tubing, 1/4″ steel pan side walls, 1/4” steel rectangular tubing for supports & 25# – 30# rail track for chain support.

Fluent RC Series of Conveyors are engineered with industry leading 3D CAD software and manufactured with precision (tolerances and standards). This series comes in standard and custom widths and lengths. Standard roller chain conveyor widths include 36″, 48″ 60”, 72″, 84”, 96”, 108” & 120”. Lower Horizontal lengths come in standard sizes of 10 feet, 15 feet 20 feet, 25 feet and 30 feet as well as any custom lower horizontal length to best match project specifications. The incline angles range from 25 degrees to 35 degrees depending on the application, material, baler requirements and building specifications. The standard chain sizes include 3 inch rollers with a 6 or 9 inch pitch, 4 & 5 inch roller with a 9 inch pitch. The frame is made of 3/16″ steel rectangular tubing, 1/4″ steel pan side walls, 1/4” steel rectangular tubing for supports & 25# – 30# rail track for chain support.

Fluent PH Series of Conveyors are engineered with industry leading 3D CAD software and manufactured with precision (tolerances and standards). This series comes in standard and custom widths and lengths. Standard roller chain conveyor widths include 36″, 48″ 60”, 72″, 84”, 96”, 108” & 120”. Lower Horizontal lengths come in standard sizes of 10 feet, 15 feet 20 feet, 25 feet and 30 feet as well as any custom lower horizontal length to best match project specifications. The incline angles range from 25 degrees to 35 degrees depending on the application, material, baler requirements and building specifications. The standard chain sizes include 3 inch rollers with a 6 or 9 inch pitch, 4 & 5 inch roller with a 9 inch pitch. The frame is made of 3/16″ steel rectangular tubing, 1/4″ steel pan side walls, 1/4” steel rectangular tubing for supports & 25# – 30# rail track for chain support.

Fluent RC Series of Conveyors are engineered with industry leading 3D CAD software and manufactured with precision (tolerances and standards). This series comes in standard and custom widths and lengths. Standard roller chain conveyor widths include 36″, 48″ 60”, 72″, 84”, 96”, 108” & 120”. Lower Horizontal lengths come in standard sizes of 10 feet, 15 feet 20 feet, 25 feet and 30 feet as well as any custom lower horizontal length to best match project specifications. The incline angles range from 25 degrees to 35 degrees depending on the application, material, baler requirements and building specifications. The standard chain sizes include 3 inch rollers with a 6 or 9 inch pitch, 4 & 5 inch roller with a 9 inch pitch. The frame is made of 3/16″ steel rectangular tubing, 1/4″ steel pan side walls, 1/4” steel rectangular tubing for supports & 25# – 30# rail track for chain support.

Fluent Conveyors offers extremely durable double beaded apron pan conveyor belts with little to no maintenance. These belts are positioned to move both horizontally and at an incline with heavy, wet, hot and abrupt materials such as MSW, cement, ore, sand stone, garbage, castings, scrap metal and more.

Fluent Conveyors Hinged Steel Belts are a great solution for medium duty conveyance. These belts are best suited for low to moderate speed and made to handle repetitive impacts and abrasive materials. Our formed piano hinged design are made from mild steel with medium carbon sidebars. All rods are premium alloy steel. Fluent offers ¼” pans and 3/16” pans in both 6” pitch and 9” pitch options. The Fluent Conveyors hinged steel belt offers options for bearings that reduce overall friction and extend chain life. The hinged steel pans can be formed with dimples (better grip), perforated (drainage) or both. Our hinged steel belting is found in a wide variety of industries including waste, recycling, mining, stamping, automotive, manufacturing and more. .

We offer 100`s of options for replacement belts that serve a wide array of different industries and applications. Each customer has unique requirements, pulley sizes, conveyor configuration etc. Black smooth top belts come in both light duty and heavy duty options. The determining factor for choosing the correct cover and carcass depends on several factors such as pulley size, live loads, materials, compliance, conveyor layout, belt speed, splice needs, environment and more. If your application is requiring extreme abrasion resistance, we offer custom urethane belts that offer a wide temperature range and we have the flexibility to produce the required mold for your application. This belt offers v-guide, molded cleats, chevrons, capped edges, wear strips and more! To make sure we can really assist you, please get as many images and pictures as you can of the current belt (top and bottom), splices, cleats and use our replacement belt guide to help.

Fluent Conveyors Rubber Combination Belts are widely used in the waste and recycling industry. The combination belting has a heavy duty frame and is a good alternative to steel belting. Fluent Rubber Combination conveyor belts are as heavy-duty as they come. These C-channel reinforced belts are the perfect mid-weight applications for processing cardboard, paper, old newspaper, plastics, shredded paper, and more.

Fluent Conveyors offers a wide range of premium, well-constructed chevron conveyor belts at a market competitive price. Chevron conveyor belts come in a variety of cleat patterns including: open chevron, closed chevron, herringbone, u-shaped, cleat top, steep climb and more to meet the requirements of a wide variety of material applications.
