Fluid Control Europe (F.C.E.) products

Wing unions are also often referred to as hammer unions or hammer lug unions dependent upon the customer or manufacturer. Whatever name is used, they are the most common quick connection method for joining piping components together in a temporary system. FCE is one of the most reputed manufacturers of WING UNIONS approved by the major worldwide service companies. FCE products for oilfield services focus on Sour Gas service and most severe applications. In addition, FCE has developed WING UNIONS for various industrial market applications including gas bottling plants, pipeline maintenance services & loading systems in LACT units. FCE is also European leader in railcar couplings utilising specially modified wing unions.

Clamp connectors are ideally used in high pressure and high temperature flowune systems and offer considerable advantages as opposed to conventional flanges. They save size. Weight. Allow 360° orientation and minimize rig-up installation and maintenance downtime. Pressure energized metal-to-metal seaung provides l£ak free connections with a lower bolt torque and no elastomeric seals.

A swivel joint is a component in a piping system that allows fluid circulation whilst maintaining articultation and inbuilt rotation between 2 fixed ends of the piping system. Applications can be for temporary and fixed installations. Most common swivels employ male/female housings, a bearing - usually of ball race design and a sealing mechanism between the male and the female components of the housing.

Customised pumping units that match with your operational. Norms. Economical and environmental constraints. A design philosophy that take in consideration your risk Assesment and your evolutive operation scenarios.

Our surface well testing equipment range includes most of the Conventional equipment such as: Processs; UPSTREAM PROCESS: 5000 /10000 psi Sand Filter. 5000 /10000 /15000 psi floor Choke Manifold. 2500 / 5000 psi Indirect Heater. DOWNSTREAM PROCESS: 600 /1440 psi 3-Phase Test Separator. 100 bbl x 50 to 150 psi Single Compartment Surge Tank. 100 bbl x 50 to 150 psi Dual Compartment Surge Tank. Diverter Manifold. Transfer pump.

The DUAL POT SAND FILTER is designed to remove solid particles from well effluent Located after the Flow Head, it protects downstream equipment against erosion and solids accumulation in tho separator. Dual pot configuration is mandatory for a safe solids removal without flow interruption. Tho FCE dual pot sand filter design (2-Stagc Filtration) combines centrifugal separation and mechanical cutout providing improved performances against conventional design. Each pot is fitted with a removable wear sleeve that protects the inlet area against erosion. Each unit is fitted with a flushing manifold that allows rovers flow flushing and solids transportation toward a storage facility. 50 to 800-micron screen are fully interchangeable. Tho FCE dual pot sand filter unit offers an crgonomic and compact arrangement that improve significantly crane operations, field figging-up, trailer mounting and fast screen removal.

The PLUG CATCHER (also called Debris catcher or Trash Catcher) consists of 2 flow paths in parallel with removable screen allowing uninterrupted flow and a by-pass. The solids arc trapped inside the screen.

Various INLINE SAND FILTER configurations (single or multiple flow paths) and pressure ratings arc available depending on the application and process conditions. Such unit is generally designed for low flow condition, compact footprint and light weight. It serves several applications such as solids production testing, water treatment gas transfer and compression, etc. The separation ranges between 50 microns and few millimeters.

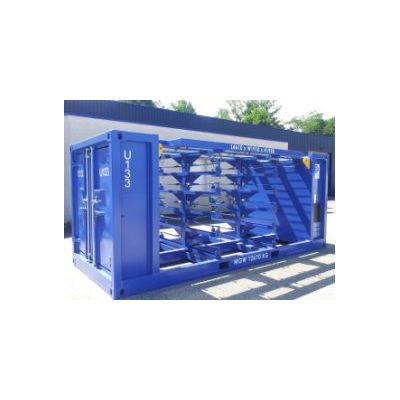

Dimensions : 4.61 m x 1.91 m x 1.95 m. 2 Storage areas for fittings (Elbow, Tee, X-over ...). Weight of Skid: 3410 Kgs. Maximum MGW: 12610 Kgs. Quantity: Example of Arrangements FIG 602 or 206. DN3" SCH XXS / 180 m Piping - 80 Elbows or 60 Elbows and 10 Tees (Example of distribution: 50 x 3M / 10 x 2M / 10 x 1M). DN4" SCH XXS / 120 m Piping - 70 Elbows or 50 Elbows and 10 Tees (Example of distribution: 40 x 3M / 10 x 2M  / 10 x 1M). DN6" SCH 80 / 90 m Piping / 40 Elbows or 20 Elbows and 15 Tees (Example of distribution: 20 x 3M / 12 x 2M / 6 x 1M)

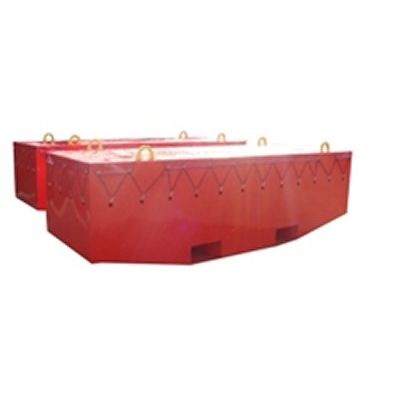

PB1 Piping Basket is the most economical and commonly used model for piping storage and transport.
