Fluid Technology Solutions, Inc. (FTS) products

FTS offers a complete line of membrane filtration products and services centered on Forward Osmosis and High Brine Concentration Recovery. This includes custom system design and engineering, membrane manufacturing, membrane system integration and operations, and full-scale systems implementation.

FTS offers a complete line of membrane filtration products and services centered on Forward Osmosis and High Brine Concentration Recovery. This includes custom system design and engineering, membrane manufacturing, membrane system integration and operations, and full-scale systems implementation.

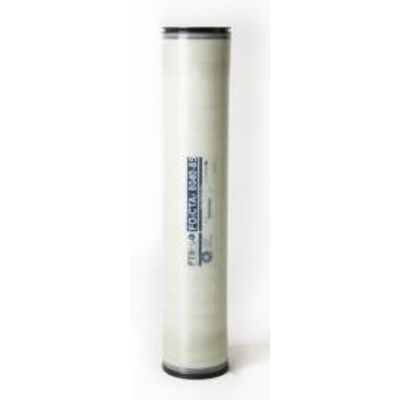

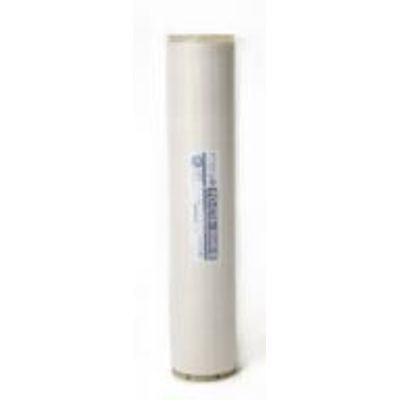

HBCR High Brine Concentration and Recovery spiral membrane elements are available as stand-alone products or in combination with forward osmosis (FO) and seawater reverse osmosis (SWRO) membranes. When used within a stand-alone process, an HBCR train is capable of generating concentrate up to 200,000 TDS NaCl (at 1,000 psi / 70 bar) from permeate ranging between 35,000 – 70,000 TDS NaCl. In combination with more passes of HBCR, less than 500 TDS permeate is generated while still reaching 200,000 TDS concentrate, and thereby minimizing ZLD costs. The most common application is the re-concentration of draw solution in Forward Osmosis membrane system, generating above 140,000 TDS concentrate.

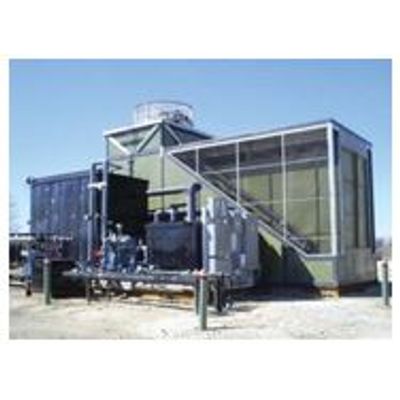

FTS offers advanced treatment technologies to realize the most economical zero liquid discharge (ZLD) solutions for the most challenging wastewater. The Low Temperature Evaporation Crystallization (LTEC) system has been proven, over the past 20 years, to effectively concentrate wastewater from oil & gas, and electric power applications to achieve zero liquid discharge (ZLD).

Zero Liquid Discharge (ZLD) technologies can help customers meet discharge and water reuse requirements by reclaiming high-quality water and generating solids (crystals) for further use or disposal. FTS’ OsmoZLD™ Process combines the technology of OsmoBC™ and Low Temperature Evaporative Crystallizer (LTEC.).
