FluidMix products

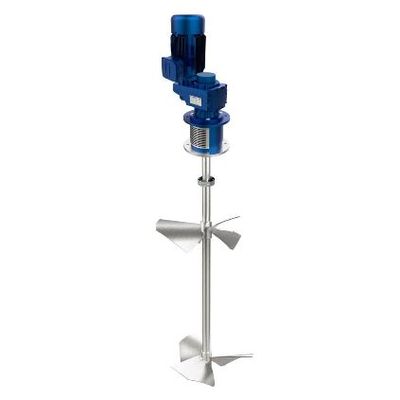

VFR3 flocculators have three blades axial profile S type. That profile performances a great pumping volume at low speed with a quite low absorbed power. They are suitable for big tanks, and can be optionally equipped with a lantern and any type of sealing, like stuffing box, dry or refrigerated mechanical seals, hydraulic labyrinth, etc. The VFR3 are custom made mixers, and each of them is studied and designed for their specific application. Reducer gears may be helical gears type, or parallel shaft. Longer than 6 meter shafts may be executed in two or more pieces. VFR3 mixers can have two or more propellers on the shaft. Flow direction and turning sense can be chosen.

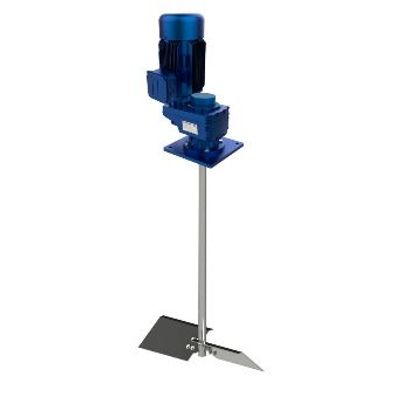

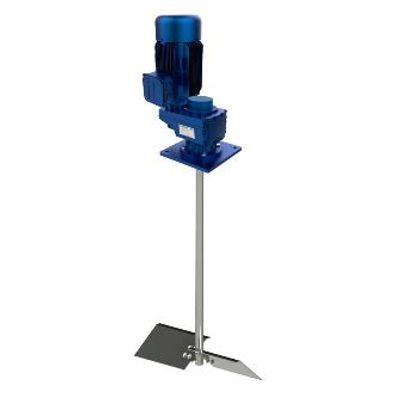

VFT mixers are specific for flocculation process. They are equipped with two or three blades axial turbine blades with great blade surface, to develop a great flow rate at slow speed. Each VFT mixer is specially designed for an optimum adapting to the tank geometry. Longer than 6 meter shafts may be executed in two or more pieces. VFT mixers can have two or more propellers on the shaft. Flow direction and turning sense can be chosen.

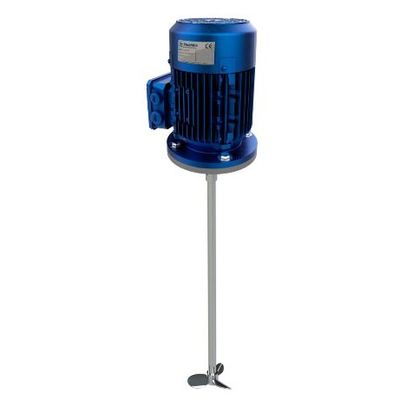

The smallest mixers of our range are the VHS stirrers. They are fast running mixers, available in three speeds: 750, 1000 and 1500 rpm, and are suitable for little tanks, with volumes from 50 to 1000 liters. Appropriate for chemicals, dissolutions, non viscous liquids. The standard mobile is a three blades marine propeller. Simplicity and economy are characteristics of VHS mixers. The propeller can be easily adjusted along the shaft if necessary, or it can be equipped with two or more propellers.

VHD3 fast running mixers available in three speeds: 750, 1000 and 1500 rpm, and suitable for little and medium tanks, with volumes from 200 to 3000 liters. The standard mobile is a three blades marine propeller. An aluminium lantern with a bearing guided inner shaft absorbs the radial forces and allows to reach shaft lengths up to 1500 mm. The propeller can be easily adjusted along the shaft if necessary, or it can be equipped with two or more propellers.

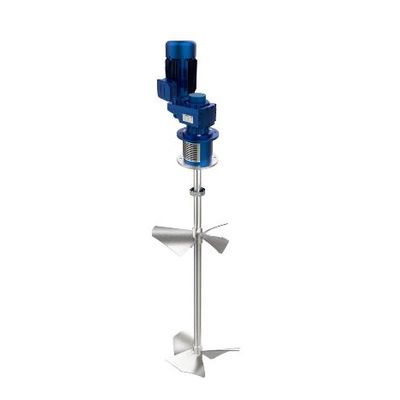

VFR3 flocculators have three blades axial profile S type. That profile performances a great pumping volume at low speed with a quite low absorbed power. They are suitable for big tanks, and can be optionally equipped with a lantern and any type of sealing, like stuffing box, dry or refrigerated mechanical seals, hydraulic labyrinth, etc. The VFR3 are custom made mixers, and each of them is studied and designed for their specific application. Reducer gears may be helical gears type, or parallel shaft. Longer than 6 meter shafts may be executed in two or more pieces. VFR3 mixers can have two or more propellers on the shaft. Flow direction and turning sense can be chosen.

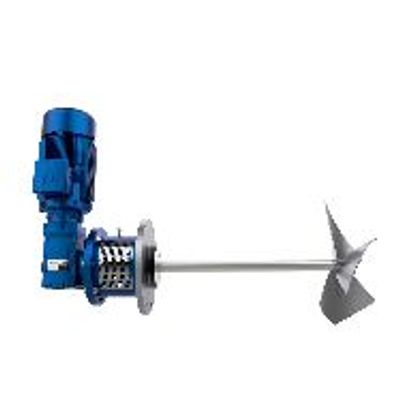

The HPS3 series are side entry mixers. They are very appreciate in wine industry, breweries, dairies, and mainly in big volume storage tanks from 10 to 500 m3, or even more, to keep non viscous liquids homogenously. A mechanical seal, normally silicon carbide/viton, ensures a leakage free work. The propeller is a 3 blades axial profile type S. Standard execution has a stainless steel DIN fixation flange. As option the mixer can be performed with an additional emergency sealing flange to avoid liquid leakages in case of any damage in the mechanical seal, until the seal can be repaired. A more sophisticated system, allows to do maintenance works (sealing change) without the need of emptying the tank.more, to keep non viscous liquids homogenously.

Submersible mixers are used in pumping stations to avoid or shake depositions of solids, as well as to avoid superficial films at wastewater treatment plants. Another application of the agitators is the homogenization of deposits in small treatment plants or small reaction tanks. Submersible agitators with direct drive (TBM) are used in water of storm tanks, sludge storage tanks, holding tanks in agriculture and biological processes. The installation can be done by using a lifting pipe system guide. Low speed (AF) submersible mixers are used in sewage treatment plants for the suspension of solids and/or flow generation. In tanks of activation, anaerobic and for denitrification, the low speed agitators prevent the sedimentation of active sludge flocs.

FluidMix creates special designs for those agitators used in processes that need a sealing system. These special designs are composed by a lantern that host the suitable sealing system for the process.

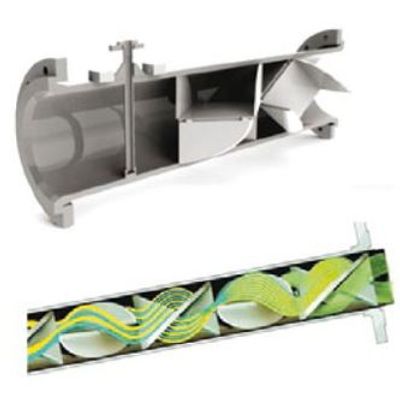

The static agitators or tubular mixers can be dimensioned for almost all volume flows, densities, viscosities and substance specific characteristics.
